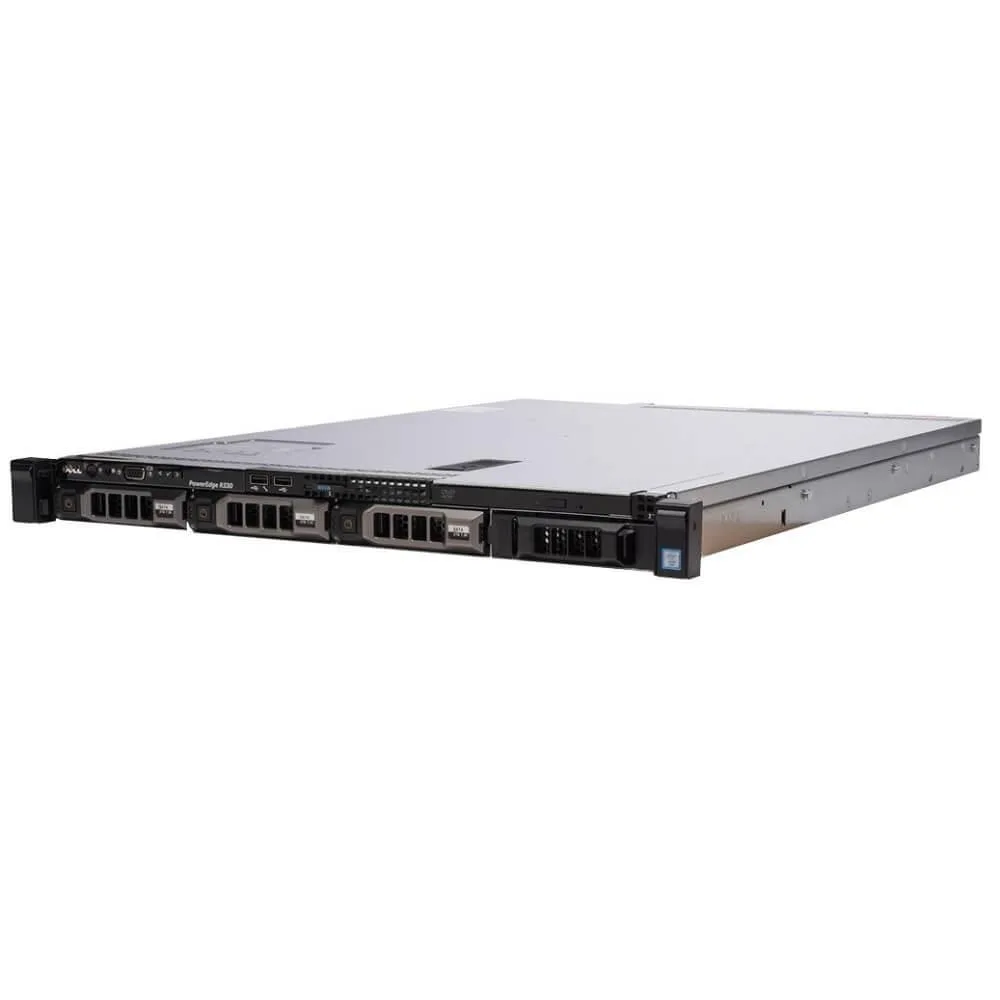

Silver 1U rack server with four front drive bays and dual power supplies

DELL

DELL PowerEdge R330 1U rack server E3-1220 v5 8GB 2×2TB H330 2×350W

SKU CH-7XVQ-P223N

1U rack server with Xeon E3-1220 v5, 8 GB DDR4, two 2 TB SATA drives, H330 RAID controller and dual 350 W redundant power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 at 3.0 GHz for responsive compute
  • 8 GB DDR4 memory across four DIMM slots for smooth multitasking
  • Two 2 TB 7.2K SATA drives on H330 RAID controller with RAID 0/1/5/10/50/60
  • Dual 350 W redundant hot-swap power supplies keep the server running
  • 1U rack form factor with four 3.5" hot-plug bays for dense deployment

1U Xeon E3-1220 v5 Rack Server

The Dell PowerEdge R330 is a 1U rack server built around a single Intel Xeon E3-1220 v5 quad-core processor running at 3.0 GHz. It ships with 8 GB of DDR4 memory across four DIMM slots and two 2 TB 7.2K SATA enterprise drives managed by a PERC H330 RAID controller. Dual 350 W hot-swap power supplies provide redundancy for continuous operation in space-constrained environments.

Suits Small Business File And Database Roles

This configuration suits small businesses needing a compact server for file sharing, light database workloads or virtualisation hosts with modest memory demands. The 8 GB DDR4 limit and single-socket design rule out memory-intensive applications, heavy virtualisation clusters or compute-heavy analytics. Buyers needing more than 64 GB total memory or dual-processor performance should look at larger platforms.

8 GB DDR4 Memory Ceiling Decides Fit

The installed 8 GB of DDR4 memory and the four-slot architecture capped at 64 GB total capacity is the specification that determines suitability. Workloads fitting within this envelope — such as domain controllers, print servers or low-density virtualisation — will run adequately. Projects requiring larger in-memory datasets or higher VM density cannot be supported without a different server chassis.

Highlights

  • Quad-core Xeon E3-1220 v5 at 3.0 GHz for responsive compute
  • 8 GB DDR4 memory across four DIMM slots for smooth multitasking
  • Two 2 TB 7.2K SATA drives on H330 RAID controller with RAID 0/1/5/10/50/60
  • Dual 350 W redundant hot-swap power supplies keep the server running
  • 1U rack form factor with four 3.5" hot-plug bays for dense deployment

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size8GB
Memory TypeDDR4
Max Memory Capacity8GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions about this item

How do I confirm the iDRAC8 remote management is active after first boot?

Connect the management port, open a browser to the iDRAC IP shown on the front LCD, log in with the default credentials, and verify the Lifecycle Controller dashboard reports the E3-1220 v5 CPU, 8 GB DDR4, both 2 TB drives, and the H330 controller without errors.

What ships with the server and what must I source separately?

The box contains the 1U chassis, E3-1220 v5 processor, 8 GB DDR4, two 2 TB 3.5" SATA drives, H330 RAID controller, two 350 W redundant power supplies, DVD-ROM, one power cable, and the iDRAC8 Express licence; rails, bezel, keyboard, mouse, video cable, and any OS licence are not included.

Should I choose the 8 GB DDR4 configuration or plan an upgrade to 64 GB?

The system arrives with a single 8 GB DDR4 module in one of four slots running up to 2400 MT/s; adding three 16 GB DDR4 modules reaches the 64 GB maximum supported by the C236 chipset and the Xeon E3-1220 v5.
