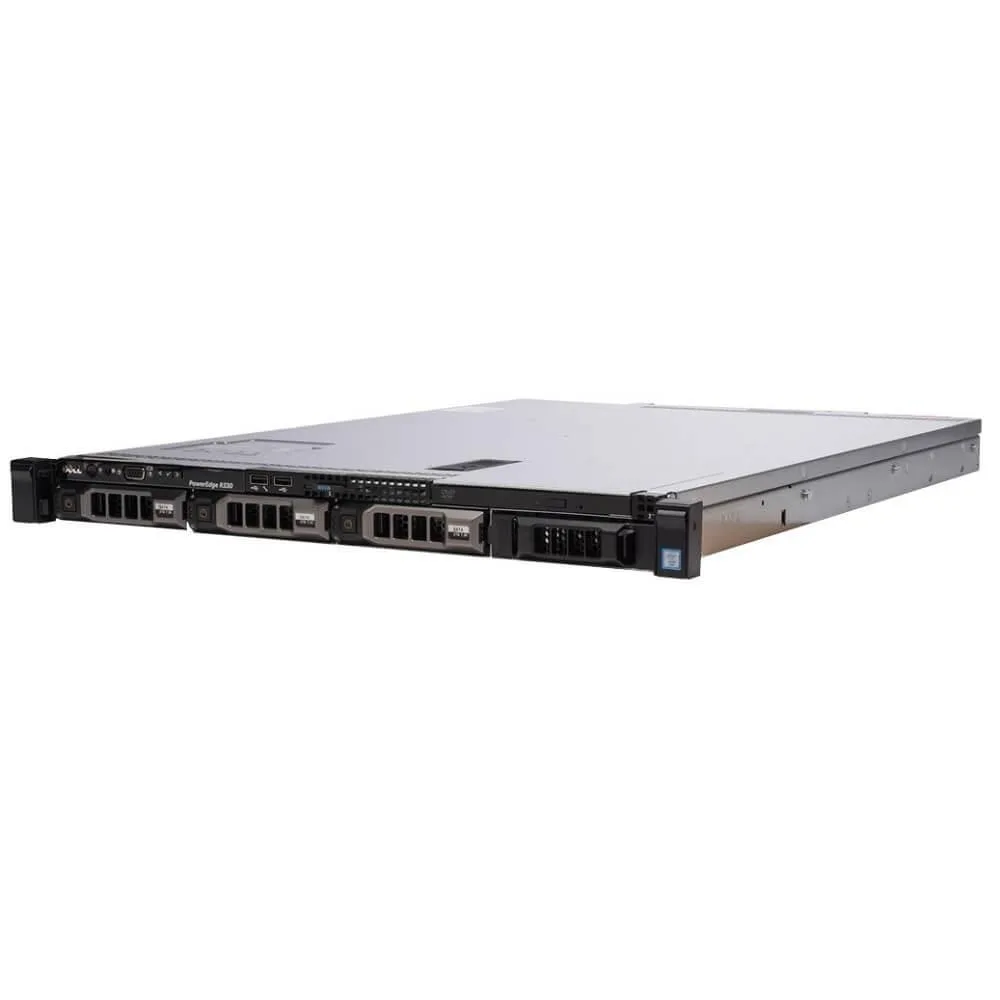

Silver 1U rack server with four front drive bays and dual power supplies

DELL

DELL PowerEdge R330 1U rack server Xeon E3-1220 v5 32GB DDR4 2x 4TB SAS H730 2x 350W

SKU CH-NNAS-V7PR1

1U rack server with Xeon E3-1220 v5, 32GB DDR4, dual 4TB SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C236
  • Quad-core Xeon E3-1220 v5 handles core workloads
  • 32 GB DDR4 memory supports multi-threaded applications
  • Dual 4 TB SAS drives provide high-capacity storage
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60
  • Redundant 350 W power supplies maintain uptime

1U rack server with Xeon E3-1220 v5

The Dell PowerEdge R330 is a 1U rack server built around a single Intel Xeon E3-1220 v5 quad-core processor running at 3.0 GHz. It ships with 32 GB of DDR4 memory installed across four DIMM slots and includes a DVD-ROM drive. Two 350 W redundant hot-swap power supplies provide supply resilience in a compact chassis.

Suits small business workloads and remote offices

This configuration fits organisations needing a dense, single-socket server for file, print or light virtualisation tasks. The H730 RAID controller supports RAID 0/1/5/6/10/50/60 for local data protection. Buyers who need dual-socket compute, GPU acceleration or more than four 3.5-inch drive bays should evaluate larger platforms.

8 TB usable storage with 40 TB maximum capacity

Two 4 TB 7.2K SAS drives deliver 8 TB of raw capacity out of the box. The chassis accepts up to four 3.5-inch hot-plug SAS or SATA drives, allowing expansion to 40 TB total. Memory is capped at 32 GB by the installed processor, so memory-intensive applications will hit that ceiling.

Highlights

  • Quad-core Xeon E3-1220 v5 handles core workloads
  • 32 GB DDR4 memory supports multi-threaded applications
  • Dual 4 TB SAS drives provide high-capacity storage
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60
  • Redundant 350 W power supplies maintain uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R330
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C236
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features4 DIMM slots compatible with 4GB/8GB/16GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability.
Number of Memory Slots4
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity40TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion Slots2 x PCIe 3.0 slots + 1 slot for internal storage.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Questions about this item

Does the R330 ship with rails or do I need to buy a 1U rail kit separately?

The rail kit is not included, so a compatible 1U rack rail kit must be purchased separately before the server can be mounted.

Can I keep using my existing 3.5" SATA drives in the two empty hot-plug bays alongside the installed SAS drives?

Yes, the chassis supports up to four 3.5" hot-plug SAS or SATA drives, so SATA drives can be added to the open bays.

How do I verify the H730 RAID controller and both 350 W power supplies are healthy after first boot?

Open the iDRAC8 web interface or watch the front-panel LCD; both will show the RAID controller status and confirm that the redundant power supplies are online and fault-free.
