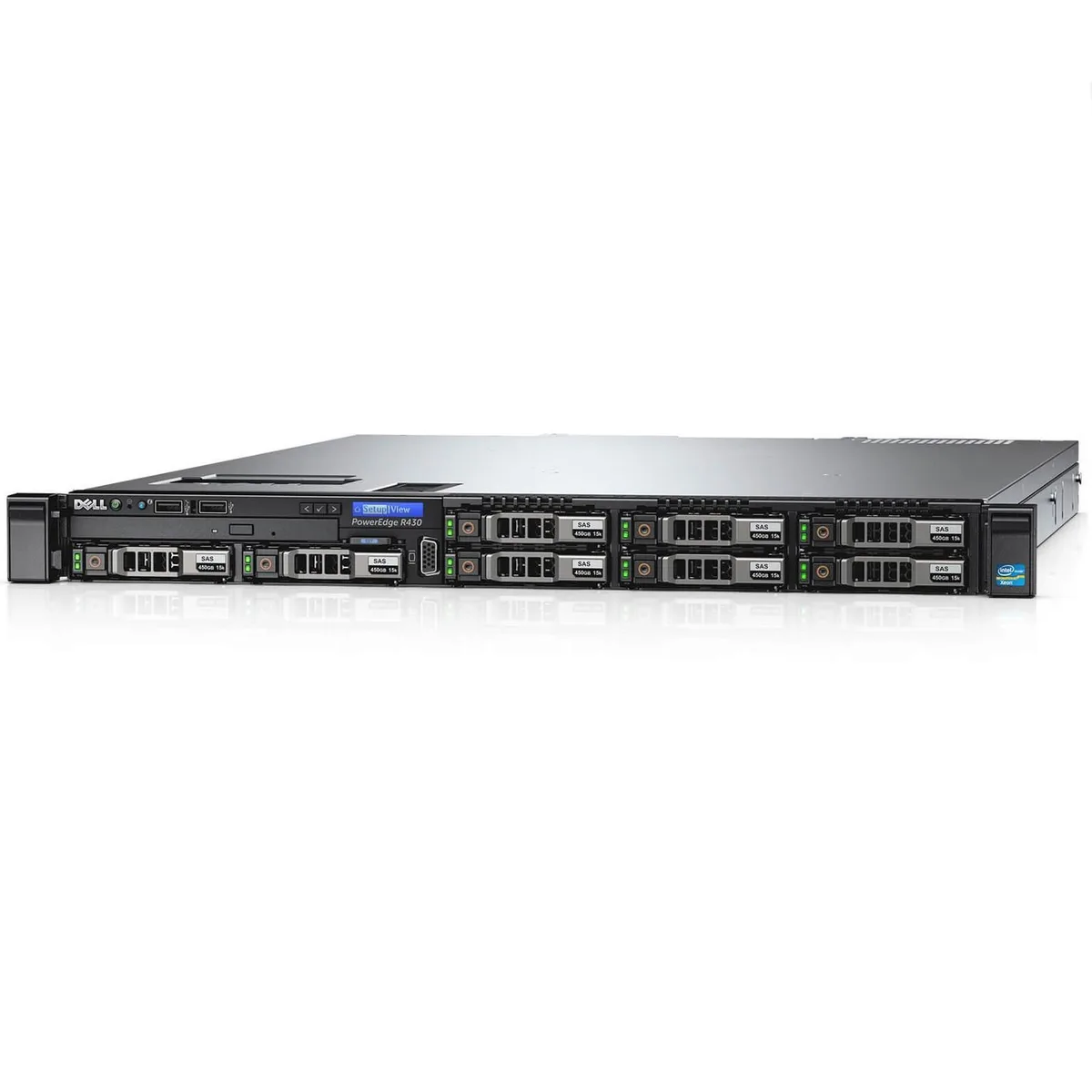

Silver 1U rack server front with eight 2.5-inch drive bays and DVD slot

DELL

DELL PowerEdge R430 1U rack server E5-2603 v3 1.6GHz 24GB DDR4 3x 300GB SAS H730

SKU CH-H7AJ-XF39C

1U rack server with Intel Xeon E5-2603 v3 six-core 1.6 GHz processor, 24 GB DDR4 memory, three 300 GB 15K SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 24GB

Struck-through versions exist but are not stocked here.

HDD 3 x 300GB

Struck-through versions exist but are not stocked here.

  • Six-core Xeon handles multi-threaded workloads at 1.6 GHz
  • 24 GB DDR4 across 12 slots supports up to 384 GB total
  • Three 300 GB 15K SAS drives deliver fast hot-plug storage
  • H730 controller enables RAID 0, 1, 5, 6, 10, 50, 60
  • Redundant 550 W supply keeps the 1U chassis running

Compact 1U rack server

The Dell PowerEdge R430 fits a single Intel Xeon E5-2603 v3 six-core 1.6GHz processor and 24GB of DDR4 memory into a 1U chassis. It ships with three 300GB 15K SAS drives and a PERC H730 RAID controller with 1GB cache. The system includes a 550W redundant power supply, DVD-ROM and four 1GbE ports.

SAS and PCIe 3.0 limits

Eight 2.5-inch hot-plug bays accept SAS or SATA drives, but the backplane and H730 controller operate at 6Gbps and 12Gbps respectively. Only two PCIe 3.0 slots are available for add-in cards. Maximum installed memory is capped at 24GB in this configuration, though the platform supports up to 384GB across 12 DIMM slots when a second processor is added.

Capacity and headroom

The three 300GB 15K drives deliver fast access for operating system and primary workloads, while RAID 0/1/5/6/10/50/60 provides flexibility. Storage can scale to 16TB across all bays. Memory headroom ends at 24GB unless a second CPU is installed, and expansion slots run out after two cards.

Highlights

  • Six-core Xeon handles multi-threaded workloads at 1.6 GHz
  • 24 GB DDR4 across 12 slots supports up to 384 GB total
  • Three 300 GB 15K SAS drives deliver fast hot-plug storage
  • H730 controller enables RAID 0, 1, 5, 6, 10, 50, 60
  • Redundant 550 W supply keeps the 1U chassis running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R430
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size24GB
Memory TypeDDR4
Max Memory Capacity24GB
Memory Features12 DIMM slots, 6 per processor. (4GB/8GB/16GB/32GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability).
Number of Memory Slots12
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity16TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion Slots2 PCIe 3.0
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight40.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 300 GB SAS drives or add more bays up to the 8-bay limit?

The chassis holds up to 8 x 2.5" hot-plug bays; three 300 GB 15K SAS drives are installed, leaving five bays free for additional SAS or SATA drives.

What does the 1.6 GHz Xeon E5-2603 v3 mean for actual throughput?

The six-core 1.6 GHz processor handles multi-threaded workloads within the 1U form factor; memory runs at DDR4 speeds up to 2400 MT/s limited by the CPU capability.

How does the H730 12 Gbps RAID controller cap drive performance?

The H730 supports 12 Gbps SAS and RAID 0/1/5/6/10/50/60, so drive arrays are limited by the 6 Gbps SAS drives installed rather than the controller.
