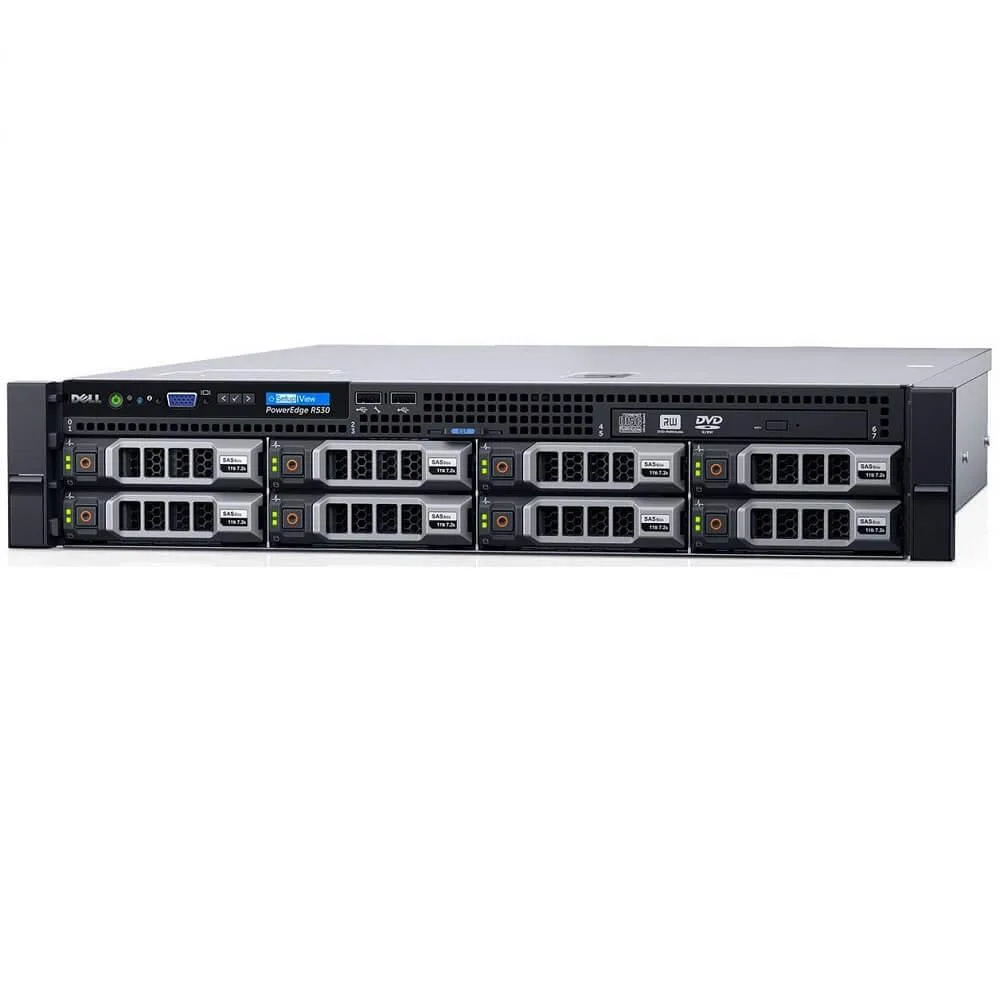

Silver 2U rack server front with eight 3.5-inch drive bays

DELL

DELL PowerEdge R530 2U rack server E5-2650 V3 10C 2.3GHz 8GB 2x 600GB SAS H730

SKU CH-ENQM-SCDKB

2U rack server with a 10-core Xeon at 2.3 GHz, 8 GB DDR4, dual 600 GB 15K SAS drives and an H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 8GB

HDD 2 x 600GB

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz delivers 20 virtual threads
  • 8 GB DDR4 installed across 12 DIMM slots supports up to 384 GB
  • Two 600 GB 15 K SAS drives provide high-speed hot-plug storage
  • H730 RAID controller with 1 GB cache handles RAID 0, 1, 5, 6, 10, 50, 60
  • Dual 750 W redundant power supplies keep the 2U rack server running

2U rack server for dense workloads

The PowerEdge R530 is a 2U rack server built around a single Intel Xeon E5-2650 V3 ten-core processor at 2.3GHz with 8GB of DDR4 memory. It ships with two 600GB 15K SAS drives on a PERC H730 RAID controller and supports up to eight 3.5-inch hot-plug bays. Dual 750W redundant power supplies and iDRAC8 remote management suit small-to-medium database or virtualization tasks.

Tool-less drive bays and rail kit simplify setup

Eight hot-plug bays accept SAS or SATA drives without tools and the included rail kit secures the 2U chassis in standard racks. The PERC H730 supports RAID 0, 1, 5, 6, 10, 50 and 60; configure the array before loading data to avoid rebuild delays. Memory installs in matched sets across twelve DIMM slots, six per processor, so populate evenly when expanding beyond the factory 8GB.

PCIe 3.0 lanes and SAS 6Gbps cap throughput

Five PCIe slots provide three PCIe 3.0 and two PCIe 2.0 connections for additional NICs, HBAs or GPUs, but total bandwidth is shared with the chipset. The onboard SAS backplane runs at 6Gbps, limiting sequential throughput on the 15K drives, and the single 1GbE daughter card restricts network-heavy clusters. Maximum memory reaches 384GB with two processors installed; single-CPU configurations halve that ceiling.

Highlights

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz delivers 20 virtual threads
  • 8 GB DDR4 installed across 12 DIMM slots supports up to 384 GB
  • Two 600 GB 15 K SAS drives provide high-speed hot-plug storage
  • H730 RAID controller with 1 GB cache handles RAID 0, 1, 5, 6, 10, 50, 60
  • Dual 750 W redundant power supplies keep the 2U rack server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R530
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size8GB
Memory TypeDDR4
Max Memory Capacity8GB
Memory Features12 DIMM slots, 6 per processor. (4GB/8GB/16GB/32GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability).
Number of Memory Slots12
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity80TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsSupport for up to 5 x PCIe: 3 x PCIe 3.0 and 2 x PCIe 2.0.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the H730 controller and both 600GB 15K SAS drives are recognised after first boot?

Enter the H730 RAID BIOS during POST or open the iDRAC8 web interface; both drives should appear as ready and the virtual disk status must show optimal.

Which components ship with the server and what must I source separately?

Included: single E5-2650 v3, 8GB DDR4, two 600GB 15K SAS drives, H730 1GB cache controller, dual 750W redundant PSUs, DVD drive, power cable and rail kit. Operating system and additional memory or drives are not included.

Should I choose the single-processor 8GB configuration or add a second CPU and more memory?

The board supports two Xeon processors and 12 DIMM slots for up to 384GB total. Add the second CPU and matched DDR4 modules if your workloads need more than 10 cores or 8GB of RAM.
