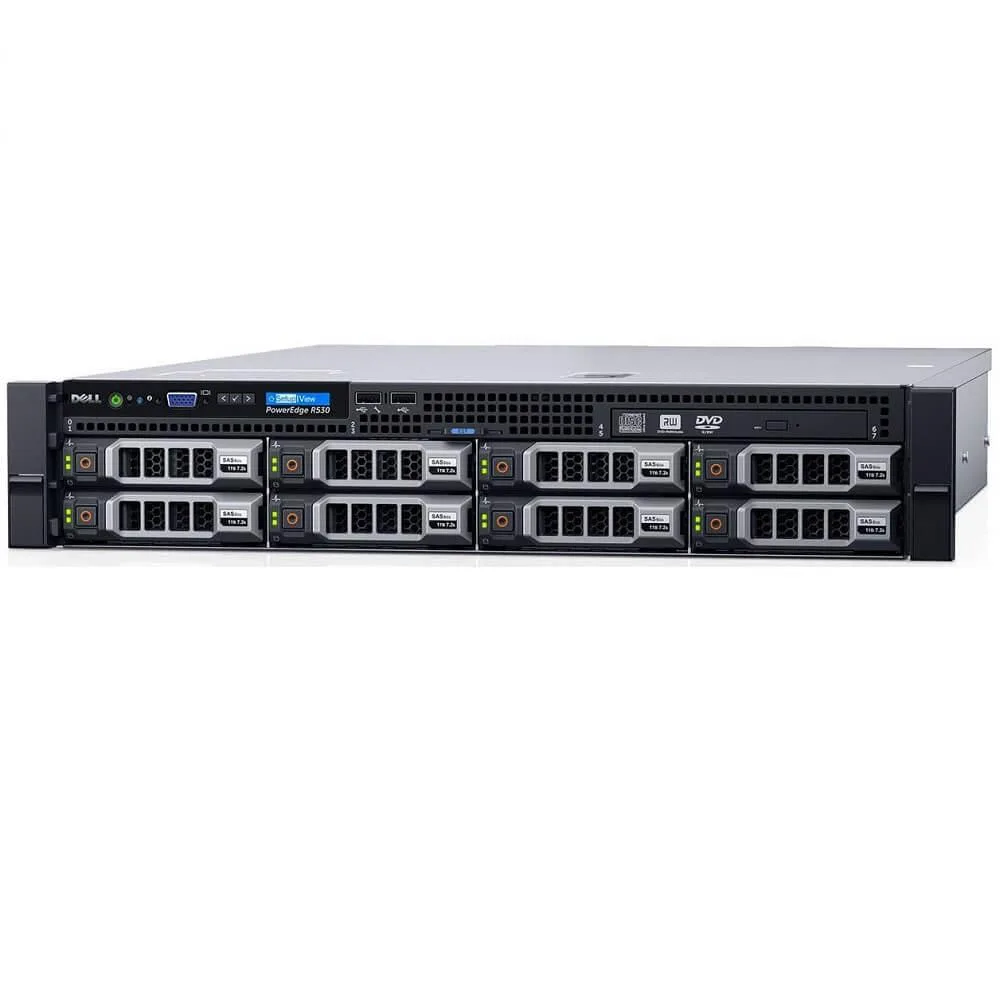

Silver 2U rack server with eight front drive bays

DELL

DELL PowerEdge R530 2U rack server E5-2650 V3 10C 2.3GHz 96GB DDR4 2x 300GB 15K SAS H730

SKU CH-CRFE-CEYZ4

2U rack server with a ten-core Xeon at 2.3GHz, 96GB DDR4, two 300GB 15K SAS drives and an H730 RAID controller supporting RAID 0/1/5/6/10/50/60

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 96GB

HDD 2 x 300GB 15K

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz delivers 20 virtual threads
  • 96 GB DDR4 across 12 DIMM slots supports up to 384 GB total
  • Dual 300 GB 15 K SAS drives on H730 RAID controller with 1 GB cache
  • Redundant 750 W hot-swap power supplies keep the 2U chassis running
  • iDRAC8 remote management plus four 1 GbE ports and five PCIe slots

Rack server with single Xeon E5-2650 V3

The Dell PowerEdge R530 is a 2U rack server built around one Intel Xeon E5-2650 V3 ten-core processor running at 2.3 GHz. It ships with 96 GB of DDR4 memory across twelve DIMM slots and two 300 GB 15K SAS drives managed by a PERC H730 RAID controller. Dual 750 W redundant power supplies and four 1 GbE ports complete the baseline configuration.

Suited for dense storage workloads.

This platform suits teams that need up to eight 3.5-inch hot-plug SAS or SATA drives with RAID 0, 1, 5, 6, 10, 50 or 60 in a compact 2U form factor. Buyers who require a second processor to reach the 384 GB memory ceiling or who need more than five PCIe slots should evaluate other platforms.

Memory fixed at 96 GB unless a second CPU is added

The installed 96 GB already matches the single-processor maximum, so capacity cannot grow without populating the second socket. Expansion beyond this point depends on adding another compatible Xeon and additional DDR4 modules.

Highlights

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz delivers 20 virtual threads
  • 96 GB DDR4 across 12 DIMM slots supports up to 384 GB total
  • Dual 300 GB 15 K SAS drives on H730 RAID controller with 1 GB cache
  • Redundant 750 W hot-swap power supplies keep the 2U chassis running
  • iDRAC8 remote management plus four 1 GbE ports and five PCIe slots

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R530
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features12 DIMM slots, 6 per processor. (4GB/8GB/16GB/32GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability).
Number of Memory Slots12
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity80TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsSupport for up to 5 x PCIe: 3 x PCIe 3.0 and 2 x PCIe 2.0.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power supply is already installed so the server can run?

Two 750 W redundant hot-swap power supplies are fitted, so the R530 powers on without any additional PSU purchase.

Can the H730 RAID controller manage the 3.5-inch SATA drives I already own?

Yes, the H730 supports both SAS and SATA drives in the eight hot-plug bays, so existing 3.5-inch SATA disks can be added directly.

How do I confirm the iDRAC8 remote management is responding after first boot?

Connect the dedicated iDRAC network port, browse to its IP address, and the iDRAC8 login page should appear, confirming the controller is active.
