Black 2U rack server with eight 3.5 inch drive bays and DVD drive

DELL

DELL PowerEdge R530 2U rack server Xeon E5-2630 v3 2.4 GHz 16 GB DDR4 3x 4 TB SAS H730

SKU CH-6YXT-BA9RD

2U rack server with single Xeon E5-2630 v3, 16 GB DDR4, three 4 TB SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 3 x 4TB SAS

  • Eight-core Xeon 2.4 GHz handles demanding workloads
  • 16 GB DDR4 memory supports virtualisation tasks
  • Three 4 TB SAS drives give 12 TB raw storage
  • H730 RAID controller enables RAID 0 1 5 6 10 50 60
  • Dual 750 W hot-swap supplies keep the server running

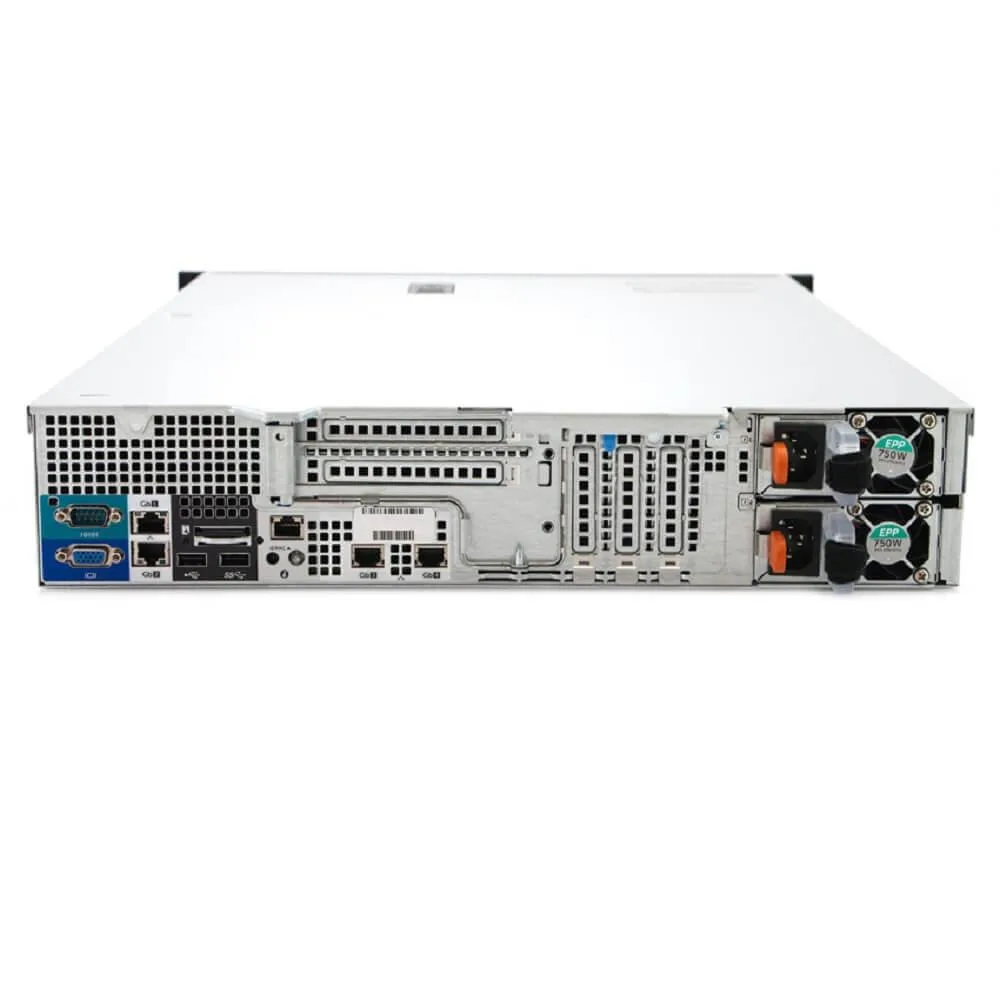

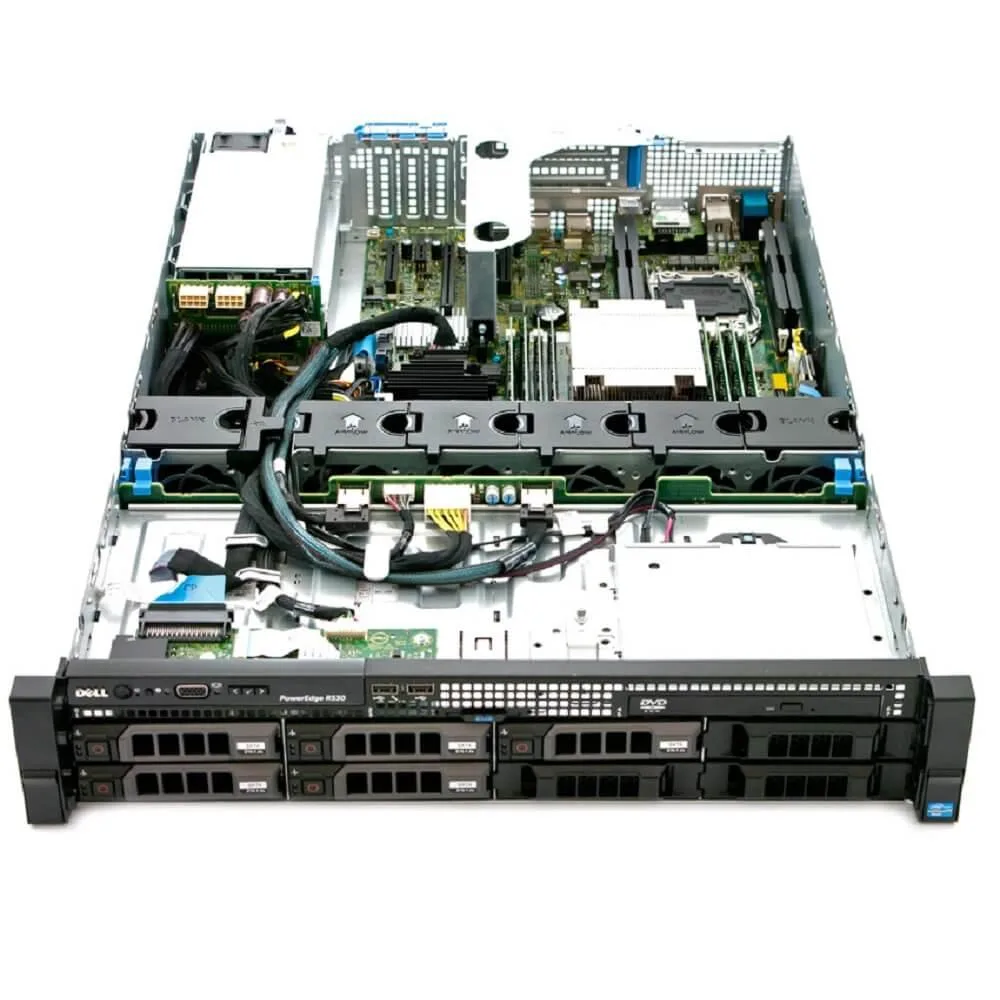

Dell PowerEdge R530 2U rack server

This Dell PowerEdge R530 is a 2U rack server built around a single Intel Xeon E5-2630 v3 eight-core processor running at 2.4 GHz. It ships with 16 GB of DDR4 memory and three 4 TB SAS hard drives connected to a PERC H730 RAID controller with 1 GB cache. Dual 750 W redundant power supplies and eight hot-plug 3.5-inch drive bays complete the chassis.

Suited for storage-heavy workloads.

The eight-bay chassis and SAS drives make this server a fit for file storage, backup repositories or archive workloads that benefit from the H730 controller's RAID 0, 1, 5, 6, 10, 50 and 60 support. Buyers who need more than 16 GB of installed memory or a second processor should look elsewhere, as the current configuration includes only one CPU and the memory slots are populated to the listed 16 GB.

Single Xeon E5-2630 v3 limits total memory to 384 GB

The installed processor supports a maximum of 384 GB of DDR4 across twelve DIMM slots, with speeds up to 2400 MT/s depending on CPU capability. This ceiling is set by the single E5-2630 v3; adding a second compatible processor would raise the limit, but that CPU is not included.

Highlights

  • Eight-core Xeon 2.4 GHz handles demanding workloads
  • 16 GB DDR4 memory supports virtualisation tasks
  • Three 4 TB SAS drives give 12 TB raw storage
  • H730 RAID controller enables RAID 0 1 5 6 10 50 60
  • Dual 750 W hot-swap supplies keep the server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R530
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features12 DIMM slots, 6 per processor. (4GB/8GB/16GB/32GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability).
Number of Memory Slots12
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity80TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsSupport for up to 5 x PCIe: 3 x PCIe 3.0 and 2 x PCIe 2.0.
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What SAS speed does the H730 controller support and what does that limit in practice?

The H730 controller runs at 12 Gbps, so the installed 6 Gbps SAS drives will operate at their native 6 Gbps speed rather than the controller's maximum.

What rail clearance and depth does the 2U chassis require for mounting?

The server is 25.4 inches deep and 3.4 inches high, so the rack must provide at least 25.4 inches of usable depth and a 2U (3.5 inch) vertical slot.

How is the H730 RAID controller installed and which step is commonly missed?

The H730 plugs into a dedicated internal storage slot; the step often missed is connecting the SAS cables from the backplane to the controller before powering on.
