DELL PowerEdge R540 12 Bay 3.5" 2U Rack Server 2x Xeon Silver 4114 2.2GHz 10 Core 256GB DDR4 12x 4TB SAS

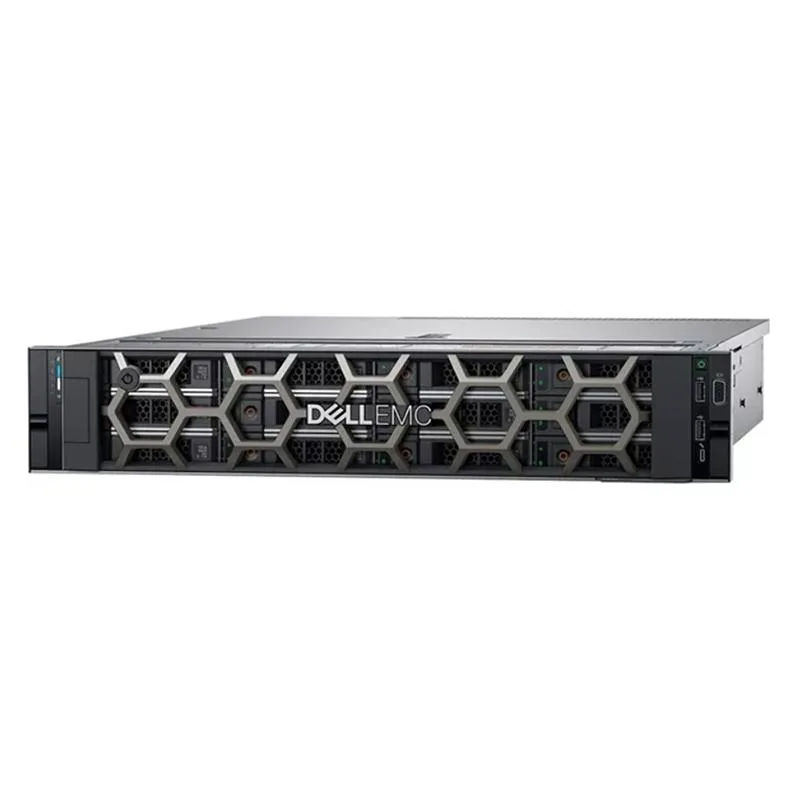

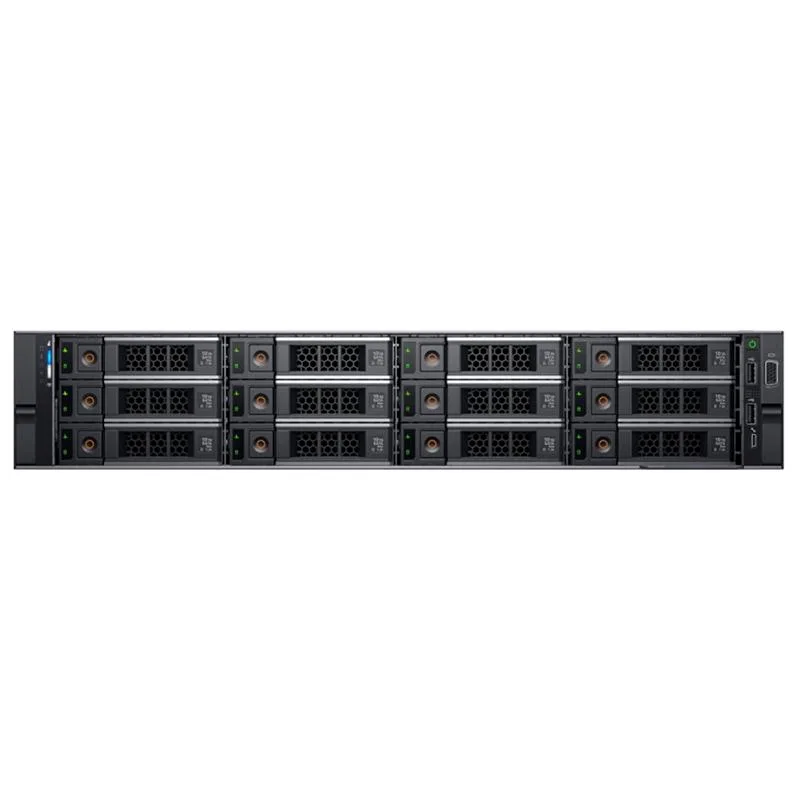

Dell PowerEdge R540 12-Bay Server

The Dell PowerEdge R540 is a 2U rack server equipped with twelve 3.5-inch drive bays. Dual Intel Xeon Silver 4114 processors provide twenty total cores at a 2.2GHz base frequency. A 256GB DDR4-2400 ECC registered memory kit supports virtualization and database workloads. The PERC HBA330 controller manages twelve 4TB 7.2K SAS drives for high-capacity storage.

Sustained Multi-Core Throughput

Under continuous load the twin 10-core Xeon Silver 4114 CPUs maintain a 2.2GHz base clock across all cores. Turbo Boost can raise frequency toward 3.0GHz when thermal headroom allows. The 256GB DDR4-2400 ECC memory sustains bandwidth for virtualization hosts and database engines. The HBA330 delivers consistent 12Gb/s SAS throughput to the twelve 7.2K drives during extended I/O operations.

Thermal, Noise and Power Profile

Dual 750-watt Platinum power supplies provide redundant power conversion for the 2U chassis. The server draws from both units to feed processors, memory, twelve spinning drives and the HBA330 controller. Front-to-rear airflow moves heat through the rack enclosure under managed fan curves. iDRAC 9 Express monitors thermal sensors and power consumption remotely without a local console.
