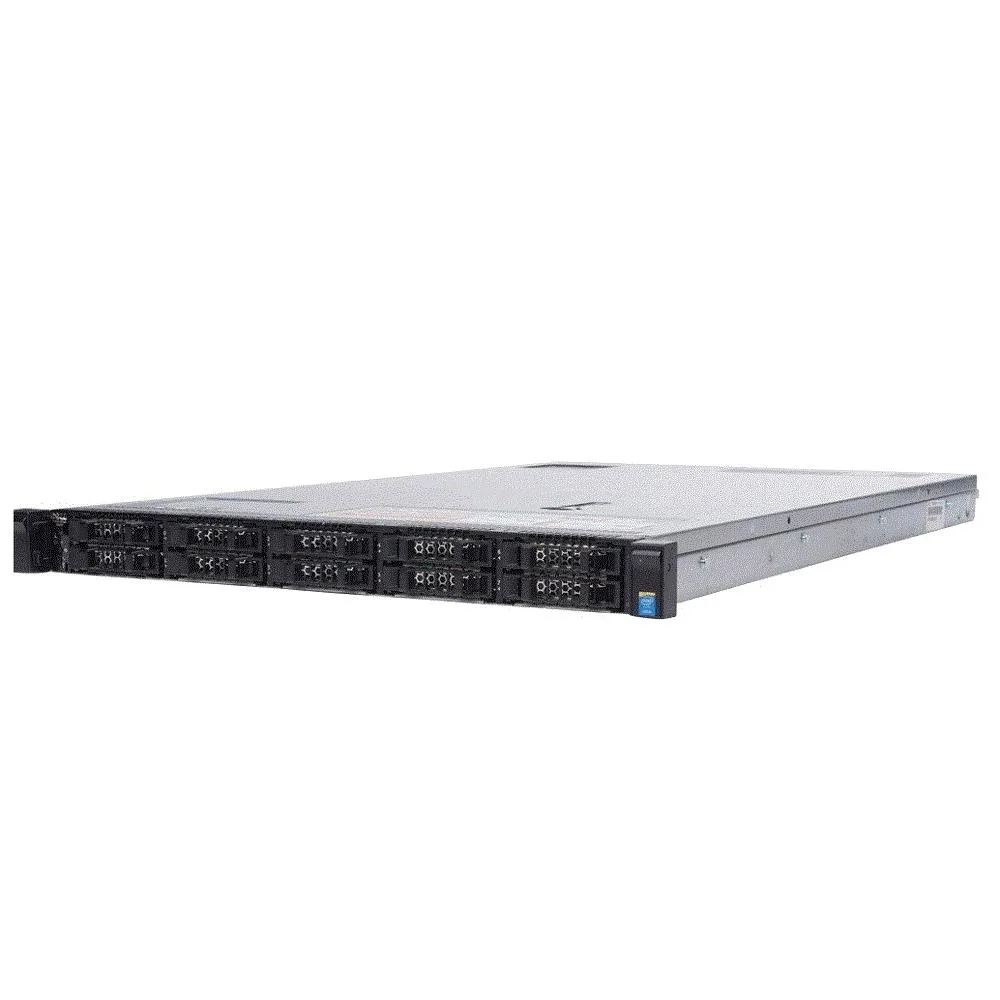

Silver 1U rack server front with ten 2.5-inch drive bays

DELL

Dell PowerEdge R630 10B E5-2609 V3 1.9GHz 16GB 2x300GB H730 rack server

SKU CH-NCSK-8VGBN

1U rack server with single Xeon E5-2609 V3 six-core 1.9GHz CPU, 16GB DDR4, two 300GB 15K SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 2 x 300GB 15K

  • None
  • 2 x 300GB 15K
  • 1U rack form factor fits dense data-centre deployments
  • Single Intel Xeon E5-2609 V3 six-core 1.9GHz processor installed
  • 16GB DDR4 memory across 24 DIMM slots for future expansion
  • Two 300GB 15K 2.5" SAS drives with H730 RAID controller
  • Dual 750W hot-swap redundant power supplies ensure uptime

Dense compute in 1U

The Dell PowerEdge R630 packs a six-core Xeon E5-2609 V3 at 1.9 GHz and 16 GB of DDR4 into a single rack unit. It ships with two 300 GB 15K SAS drives on a Perc H730 controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. The chassis accepts up to ten 2.5-inch hot-plug bays for SAS or SATA media.

Redundant 750 W supplies

Dual hot-swap 750 W power modules share the load so a single failure does not halt the server. The 1U form factor relies on high-speed internal fans to move air across the CPU, memory and drive cage. Acoustic output is typical for a dense rack platform and scales with thermal demand.

Ten-bay SAS capacity ceiling

The backplane tops out at 14 TB of raw SAS storage across the ten drive slots. Buyers who need more capacity must look beyond this chassis. The single processor installed leaves one socket open, but the memory ceiling of 16 GB is already reached with the fitted modules.

Highlights

  • 1U rack form factor fits dense data-centre deployments
  • Single Intel Xeon E5-2609 V3 six-core 1.9GHz processor installed
  • 16GB DDR4 memory across 24 DIMM slots for future expansion
  • Two 300GB 15K 2.5" SAS drives with H730 RAID controller
  • Dual 750W hot-swap redundant power supplies ensure uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 2GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 2.5-inch SAS drives in the 10-bay front panel, and what step is often missed?

Slide each drive into a bay until the latch clicks; the step often missed is confirming the PERC H730 1GB 12Gbps controller sees both 300GB 15K drives in the BIOS before configuring RAID 0/1/5/6/10/50/60.

What maintenance or replacement will the 750W redundant power supplies need later?

The hot-swap 750W units can be replaced one at a time without downtime; plan to swap them after several years of continuous operation when fan noise or efficiency drops.

Which limit appears first under sustained load — the single E5-2609 V3 1.9GHz six-core CPU or the 16GB DDR4 memory?

The single 1.9GHz six-core CPU reaches full utilisation before the 16GB DDR4 memory or the H730 1GB cache become bottlenecks.
