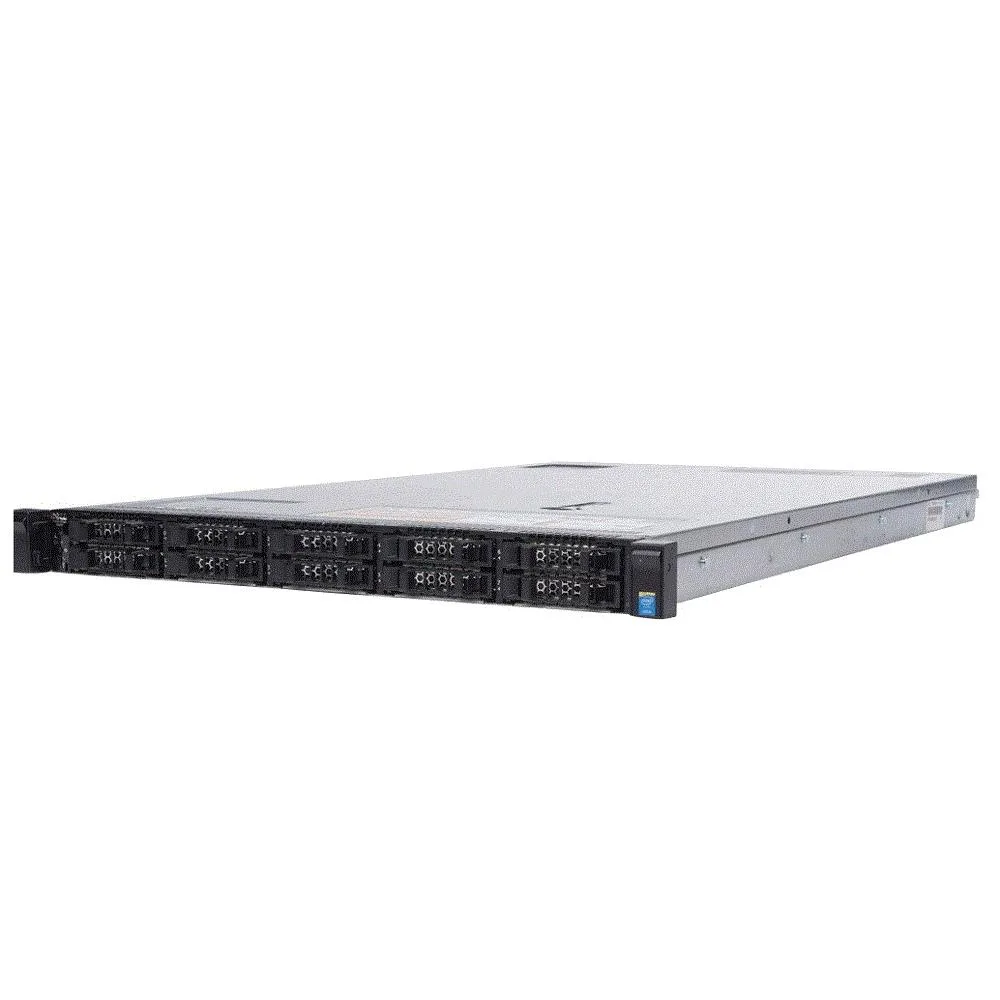

Silver 1U rack server with ten front drive bays, dual power supplies and sliding rails

DELL

DELL PowerEdge R630 10B E5-2609 V3 1.9Ghz 32GB H330 rack server

SKU CH-462S-2BFFV

1U rack server with a six-core Xeon E5-2609 V3 at 1.9 GHz, 32 GB DDR4, H330 RAID controller and ten 2.5-inch hot-plug bays

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 32GB

HDD None

  • 1U rack form factor fits dense data-centre rows
  • Single Xeon E5-2609 V3 six-core 1.9 GHz processor handles core workloads
  • 32 GB DDR4 memory installed across 24 DIMM slots for expansion headroom
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750 W hot-swap power supplies keep the system running through a failure

Compact 1U rack server for dense compute

The Dell PowerEdge R630 fits a single Xeon E5-2609 v3 six-core processor at 1.9 GHz with 32 GB of DDR4 memory in a 1U chassis. Dual 750 W redundant power supplies and an H330 RAID controller supporting RAID 0/1/5/10/50/60 are included. Ten 2.5-inch hot-plug drive bays provide internal storage capacity up to 14 TB per drive. The system ships without an operating system or drives.

Suits single-socket workloads with room to grow

This configuration targets environments that need a second processor slot and 24 DIMM positions for future expansion up to 1536 GB total memory. Buyers who require drives, rails or an OS pre-installed should look elsewhere. The 10-bay chassis does not offer an optical-drive option. Networking defaults to four 1 GbE ports with optional 10 GbE daughter cards.

Single E5-2609 v3 processor installed

One six-core Xeon E5-2609 v3 at 1.9 GHz is factory-fitted; the socket count allows a second matching CPU to be added later. Memory runs at up to 2400 MT/s depending on the processor capability. The H330 controller delivers 12 Gbps SAS/SATA connectivity to the drive backplane.

Highlights

  • 1U rack form factor fits dense data-centre rows
  • Single Xeon E5-2609 V3 six-core 1.9 GHz processor handles core workloads
  • 32 GB DDR4 memory installed across 24 DIMM slots for expansion headroom
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750 W hot-swap power supplies keep the system running through a failure

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the server come with drive trays or must I buy them separately for the 10-bay chassis?

No hard drives or trays are included with the 10-bay unit; you must purchase 2.5-inch SAS or SATA trays separately.

Should I choose the single E5-2609 V3 six-core 1.9Ghz CPU or add a second processor?

The board supports up to two CPUs; adding a second Xeon doubles core count and unlocks the second set of 12 DIMM slots for memory expansion beyond 32GB.

What does the H330 12Gbps RAID controller actually deliver for the 10 drive bays?

The H330 provides 12Gbps SAS connectivity and supports RAID 0, 1, 5, 10, 50 and 60 across the 10 hot-plug 2.5-inch bays.
