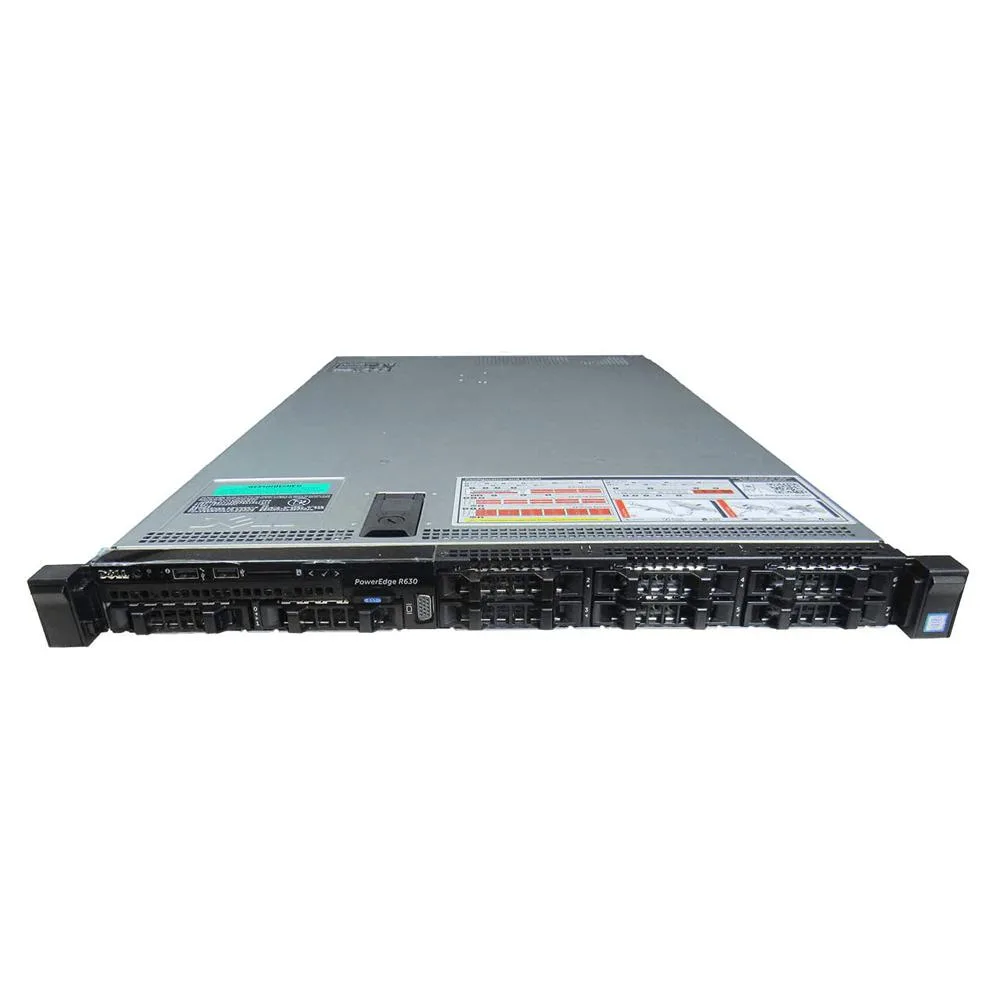

Silver 1U rack server with eight front 2.5-inch drive bays

DELL

DELL PowerEdge R630 1U rack server E5-2620 V3 2.4GHz 48GB H330 8-bay

SKU CH-P69V-FNETX

1U rack server with an Intel Xeon E5-2620 V3 six-core 2.4 GHz CPU, 48 GB DDR4, H330 RAID controller and eight 2.5-inch hot-plug bays

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 48GB

HDD None

  • Single E5-2620 V3 six-core 2.4 GHz Xeon processor delivers 12 threads for multi-threaded workloads
  • 48 GB DDR4 memory installed across 24 DIMM slots with room to expand
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60 for flexible data protection
  • Dual 750 W hot-swap redundant power supplies keep the server running during a supply failure
  • Eight 2.5-inch hot-plug drive bays accept SAS or SATA drives for high-density storage

Compact 1U Rack Server With Redundant Power

The Dell PowerEdge R630 is a 1U rack server built for density. It ships with a single Intel Xeon E5-2620 V3 six-core processor at 2.4GHz and 48GB of DDR4 memory across 24 DIMM slots. Dual 750W hot-swap power supplies provide redundancy in a 1U chassis.

Suits Virtualisation Hosts, Not GPU Compute

Organisations running many virtual machines or containers benefit from the 24 DIMM slots and hardware RAID across eight 2.5-inch hot-plug bays. Buyers needing GPU acceleration or more than two processor sockets should evaluate larger platforms.

Eight-Bay 2.5-Inch Hot-Plug Storage With H330 RAID

The chassis accepts up to eight 2.5-inch SAS or SATA drives connected to a PERC H330 controller supporting RAID 0, 1, 5, 10, 50 and 60. No drives or trays are included, so capacity and drive type must be selected separately.

Highlights

  • Single E5-2620 V3 six-core 2.4 GHz Xeon processor delivers 12 threads for multi-threaded workloads
  • 48 GB DDR4 memory installed across 24 DIMM slots with room to expand
  • H330 12 Gbps RAID controller supports RAID 0/1/5/10/50/60 for flexible data protection
  • Dual 750 W hot-swap redundant power supplies keep the server running during a supply failure
  • Eight 2.5-inch hot-plug drive bays accept SAS or SATA drives for high-density storage

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing 2.5" SAS drives work with the H330 controller in this R630?

Yes, the H330 12Gbps RAID controller supports both SAS and SATA drives across the 8 hot-plug bays.

How do I confirm the single E5-2620 V3 and 48GB DDR4 are detected correctly?

Check the iDRAC8 Lifecycle Controller inventory or press F2 at boot to view CPU and memory details in the System Setup.

Are drive trays included for the 8 hot-plug bays, or must I order them separately?

Trays are not included; you will need to purchase compatible 2.5" hot-plug trays for each drive you install.
