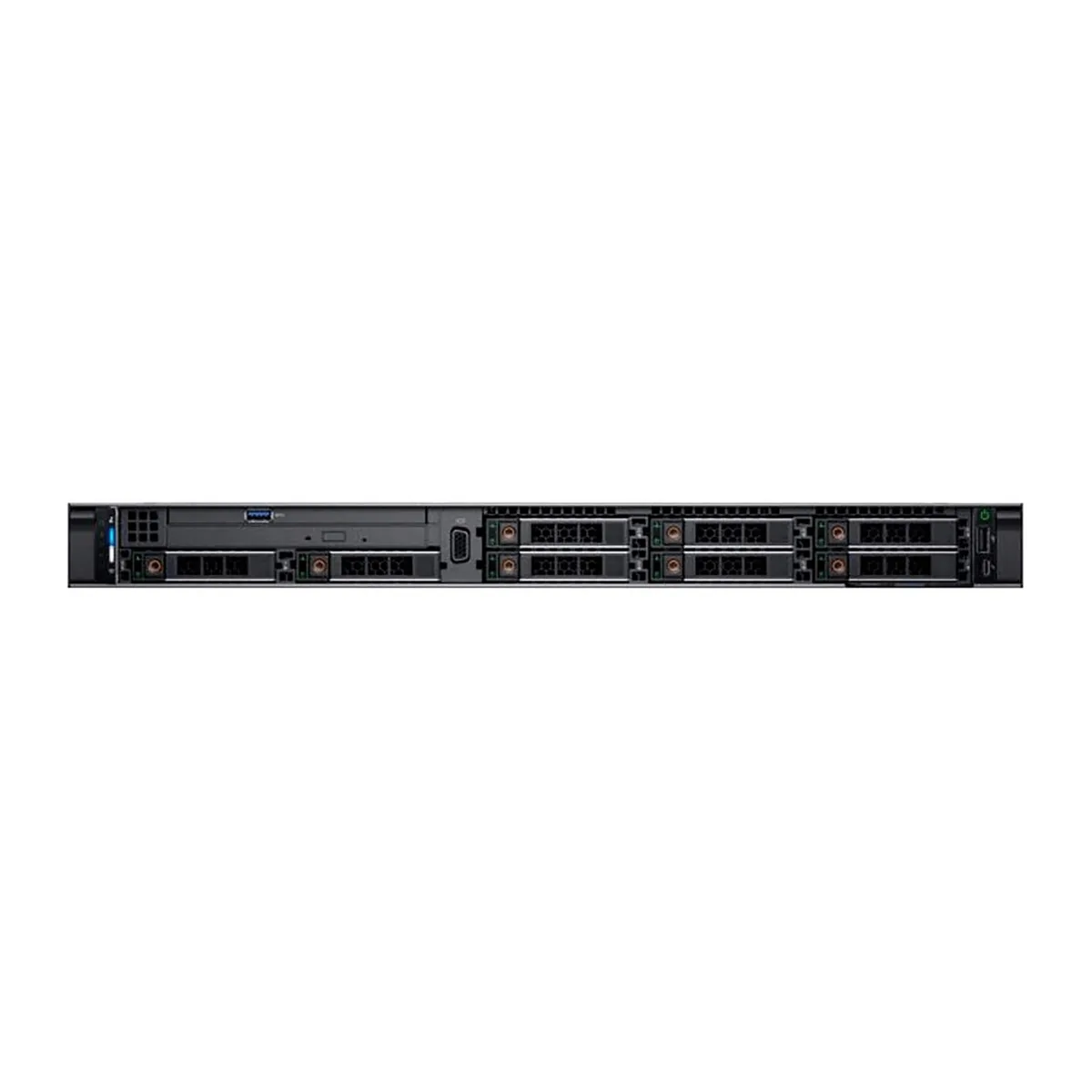

Dell PowerEdge R640 1U rack server front with eight drive bays

DELL

DELL PowerEdge R640 1U rack server 2× Xeon Gold 6134 3.2 GHz 16-core 128 GB DDR4 8× 1.2 TB SAS H740P 4× 1GbE

SKU CH-752R-WSB12

1U rack server with dual Xeon Gold 6134 CPUs, 128 GB DDR4, eight 1.2 TB SAS drives and H740P RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon Scalable
  • CPU Speed3.20 GHz
  • CPU SocketLGA 3647
  • Dual Xeon Gold 6134 CPUs deliver 16 cores at 3.2 GHz for demanding workloads
  • 128 GB DDR4 ECC registered memory supports multiple virtual machines and data-intensive applications
  • Eight 1.2 TB 10K SAS drives provide high-speed storage for databases and backups
  • PERC H740P RAID controller with 8 GB cache simplifies array management and data protection
  • Quad-port 1 GbE RJ45 network interface enables flexible connectivity for business services

Purpose-built 1U rack server

The Dell EMC PowerEdge R640 is a 1U rack server designed for business workloads such as virtualization, databases, backups and application hosting. It ships with two Intel Xeon Gold 6134 processors running at 3.20 GHz, providing 16 cores total with Turbo Boost up to 3.70 GHz. The system includes 128 GB of DDR4 ECC registered memory across 24 slots and supports up to 3 TB maximum capacity.

Suited for dense virtualization hosts

This configuration fits environments that need high core density and fast SAS storage in a single rack unit, backed by the H740P RAID controller and four 1 GbE RJ45 ports. Buyers who require GPU acceleration, 10 GbE or faster networking, or more than 3 TB of memory should look at alternative platforms. The fixed 1U form factor also limits PCIe expansion compared with larger chassis.

Deciding spec: 8× 1.2 TB 10K SAS drives

Eight 1.2 TB 10 000 RPM SAS hard drives deliver the capacity and throughput that determine whether this server matches your storage profile. The H740P controller with 8 GB cache manages RAID levels for operating systems, applications, virtual machines and backups. If your workload demands solid-state latency or larger drive bays, this drive set is the limiting factor.

Highlights

  • Dual Xeon Gold 6134 CPUs deliver 16 cores at 3.2 GHz for demanding workloads
  • 128 GB DDR4 ECC registered memory supports multiple virtual machines and data-intensive applications
  • Eight 1.2 TB 10K SAS drives provide high-speed storage for databases and backups
  • PERC H740P RAID controller with 8 GB cache simplifies array management and data protection
  • Quad-port 1 GbE RJ45 network interface enables flexible connectivity for business services

Specifications

BrandDELL
SeriesPowerEdge R640
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon Scalable
CPU Speed3.20 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
CPU FeaturesTurbo Boost up to 3.70 GHz
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity3TB
Memory FeaturesECC Registered
Number of Memory Slots24
Storage ControllerDell Perc H740P 8GB Controller
HDD InterfaceSAS
Ethernet ControllerI350 - Quad Port 1GbE RJ45
LAN Ports4 x Ports
Package ContentsPower Cables Included

Questions about this item

What rack height and power setup does the 1U PowerEdge R640 need to operate?

The server occupies 1U of rack space and includes redundant hot-swap power supplies, so it requires a rack that accepts 1U servers and can deliver power to both supplies.

Can the existing H740P controller manage the eight 1.2 TB SAS drives together with older SAS drives I want to keep?

The H740P supports SAS connectivity and can incorporate additional SAS drives into its RAID configuration alongside the eight 1.2 TB 10K drives already installed.

How can I confirm both Xeon Gold 6134 CPUs and all 128 GB of DDR4 ECC memory are recognised after installation?

During POST the system will display two processors with 16 total cores at 3.20 GHz and show 128 GB of DDR4 ECC Registered memory; the iDRAC or BIOS system inventory can also verify these figures.
