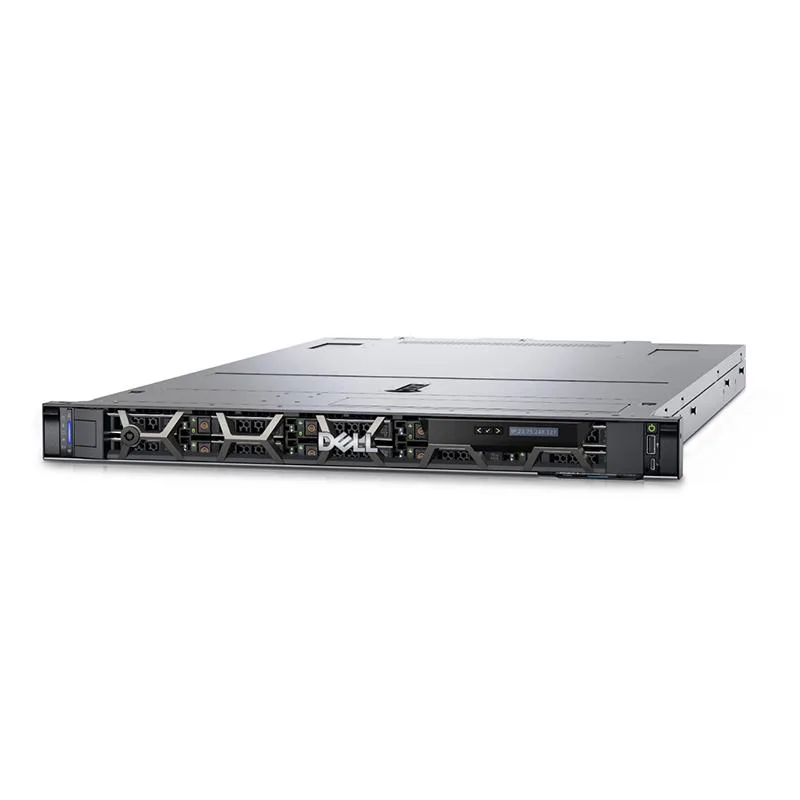

Silver 1U rack server with ten 2.5-inch drive bays and front bezel

DELL

Dell PowerEdge R650 1U rack server 2x Xeon Silver 4314 2.4GHz 16-core 64GB DDR4 10x 960GB SSD H755 2x 1400W

SKU CH-T62B-NH1ZG

A 1U rack server with dual Xeon Silver 4314 16-core CPUs, 64GB DDR4, ten 960GB SATA SSDs on a PERC H755 controller, dual 10GbE SFP+, iDRAC9 Enterprise and redundant 1400W power supplies

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI Features10 x 960GB SATA SSD
  • CPU TypeIntel Xeon
  • CPU Speed32
  • Dual Xeon Silver 4314 CPUs deliver 32 cores at up to 3.4GHz turbo
  • 64GB DDR4 2666MHz ECC memory supports demanding virtualization workloads
  • PERC H755 RAID controller with 8GB NV cache enables RAID 0/1/5/6/10/50/60
  • Ten 960GB SATA SSDs provide high-capacity flash storage in 2.5" bays
  • Dual 1400W platinum power supplies and iDRAC9 Enterprise ensure resilient remote management

Dense 1U compute node

The Dell PowerEdge R650 is a 1U rack server populated with two Intel Xeon Silver 4314 processors running at 2.4 GHz with 16 cores each. It ships with 64 GB of DDR4 memory in a four-DIMM configuration. Ten 960 GB SATA SSDs sit behind a PERC H755 RAID controller with 8 GB of non-volatile cache. Dual 1400 W platinum power supplies, iDRAC9 Enterprise, a Broadcom 57412 dual-port 10 GbE SFP+ OCP card, rails and a front bezel complete the package.

Virtualisation and database clusters

This configuration suits teams that need high core density and fast local storage in a single rack unit for virtualisation hosts, database clusters or private-cloud nodes. The 10-drive bay layout and hardware RAID support RAID 0, 1, 5, 6, 10, 50 and 60. Buyers who need direct-attached NVMe performance or GPU acceleration should look at a different platform.

PERC H755 with 8 GB cache

The installed PERC H755 controller provides hardware RAID 0, 1, 5, 6, 10, 50 and 60 backed by 8 GB of battery-protected cache. That cache is the decisive factor for sustained write throughput and data protection on the ten SATA SSDs. If your workload demands a different RAID feature set or an NVMe-optimised controller, this server will not match the requirement.

Highlights

  • Dual Xeon Silver 4314 CPUs deliver 32 cores at up to 3.4GHz turbo
  • 64GB DDR4 2666MHz ECC memory supports demanding virtualization workloads
  • PERC H755 RAID controller with 8GB NV cache enables RAID 0/1/5/6/10/50/60
  • Ten 960GB SATA SSDs provide high-capacity flash storage in 2.5" bays
  • Dual 1400W platinum power supplies and iDRAC9 Enterprise ensure resilient remote management

Specifications

BrandDELL
SeriesPowerEdge R650
ModelR650
Part Number2.40 GHz
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
AI Features10 x 960GB SATA SSD
CPU TypeIntel Xeon
CPU Speed32
CPU SocketLGA 4189
Number of CPU Cores16-Core Processor
# of Processors InstalledSilver 4314
MAX Processors2
Chipset0
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity2TB
Storage ControllerDell Perc H755 Controller
HDD InterfaceSATA
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell EMC 15G Broadcom 57412 Dual Port 10GbE SFP+ OCP 3.0 Network Card
LAN Ports2 x Ports
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features10 x 2.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

What rack height and rail kit does the 1U PowerEdge R650 need?

The server occupies 1U of rack space and ships with Ready Rails for standard rack mounting.

Which drive bays and controller do I populate first when installing the ten 960GB SSDs and the H755 RAID card?

Install the PERC H755 controller in its dedicated slot, then fill the ten front-accessible 2.5-inch bays with the SATA SSDs before configuring RAID 0, 1, 5, 6, 10, 50 or 60.

When will the iDRAC9 Enterprise licence and the PERC H755 battery-backed cache need renewal or replacement?

iDRAC9 Enterprise is licensed for the life of the server; the H755 battery-backed cache module should be replaced when the battery no longer holds charge, typically after several years of operation.
