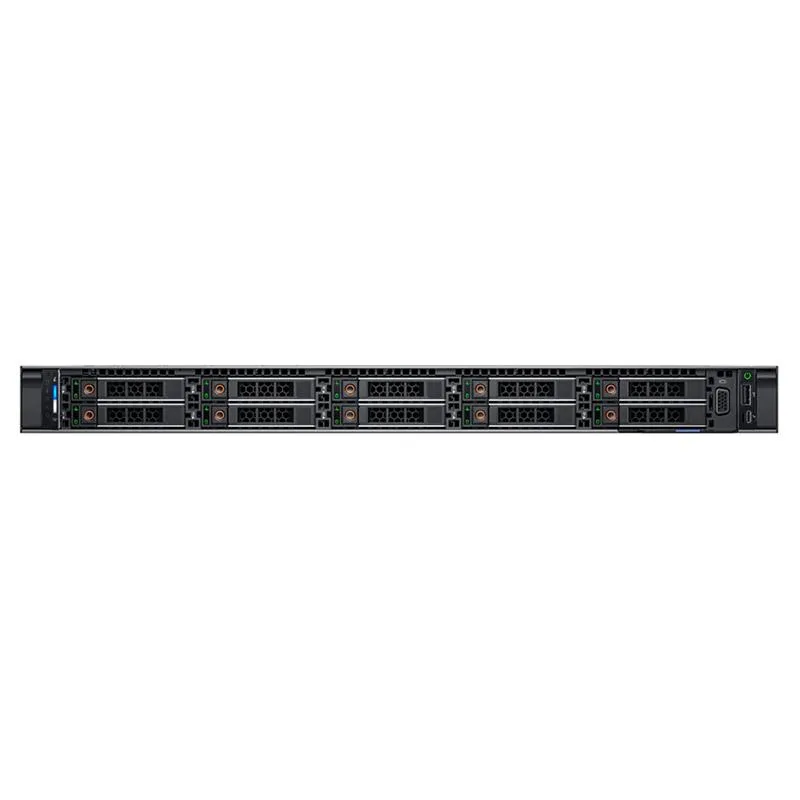

Silver 1U rack server with ten 2.5-inch drive bays and front bezel

DELL

DELL PowerEdge R650 rack server 2x Xeon Silver 4314 1TB DDR4 10x 960GB SSD

SKU CH-V9NX-G51EK

A 1U rack server with dual 16-core Xeon Silver 4314 CPUs, 1TB DDR4 memory and ten 960GB SATA SSDs on a PERC H755 controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI Features10 x 960GB SATA SSD
  • CPU TypeIntel Xeon
  • CPU Speed32
  • Dual Xeon Silver 4314 16-core CPUs deliver strong multi-threaded compute
  • 1TB DDR4 2666MHz ECC memory supports large virtualisation workloads
  • PERC H755 RAID controller with 8GB cache enables RAID 0/1/5/6/10/50/60
  • Ten 960GB SATA SSDs provide high-capacity flash storage
  • iDRAC9 Enterprise plus dual 1400W PSUs ensure remote management and power redundancy

Dell PowerEdge R650 1U rack server

The Dell PowerEdge R650 is a 1U rack server built for enterprise workloads. It ships with two Intel Xeon Silver 4314 processors and 1TB of DDR4 registered ECC memory. The system includes a PERC H755 RAID controller and iDRAC9 Enterprise remote management. Dual 1400W platinum power supplies provide redundant hot-swap power.

Ten 2.5-inch SATA SSD bays with RAID flexibility

The chassis holds ten 2.5-inch drives connected through a Dell PERC H755 controller with 8GB NV cache. The controller supports RAID 0, 1, 5, 6, 10, 50 and 60 for a range of redundancy and performance profiles. All ten bays are populated with 960GB SATA 6Gb/s enterprise SSDs. An OCP 3.0 dual-port 10GbE SFP+ network card is also installed.

1TB DDR4 memory with headroom to 2TB

The server arrives with 32 modules of 32GB DDR4 2666MHz registered ECC memory totalling 1TB. The platform supports up to 2TB across 32 DIMM slots, leaving capacity for future expansion. Memory runs at 2666MHz in this configuration while the platform can reach 3200 MT/s with compatible modules. Buyers needing more than 2TB of system memory must select a different platform.

Highlights

  • Dual Xeon Silver 4314 16-core CPUs deliver strong multi-threaded compute
  • 1TB DDR4 2666MHz ECC memory supports large virtualisation workloads
  • PERC H755 RAID controller with 8GB cache enables RAID 0/1/5/6/10/50/60
  • Ten 960GB SATA SSDs provide high-capacity flash storage
  • iDRAC9 Enterprise plus dual 1400W PSUs ensure remote management and power redundancy

Specifications

BrandDELL
SeriesPowerEdge R650
ModelR650
Part Number2.40 GHz
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
AI Features10 x 960GB SATA SSD
CPU TypeIntel Xeon
CPU Speed32
CPU SocketLGA 4189
Number of CPU Cores16-Core Processor
# of Processors InstalledSilver 4314
MAX Processors2
Chipset0
Installed Memory Size1TB
Memory TypeDDR4
Max Memory Capacity2TB
Storage ControllerDell Perc H755 Controller
HDD InterfaceSATA
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell EMC 15G Broadcom 57412 Dual Port 10GbE SFP+ OCP 3.0 Network Card
LAN Ports2 x Ports
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features10 x 2.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How do the two Xeon Silver 4314 processors running at 2.4 GHz with 16 cores each perform in a live virtualization host?

The dual 16-core Xeon Silver 4314 CPUs provide 32 total cores at 2.4 GHz base and 3.4 GHz turbo, giving strong multi-thread throughput for dense VM workloads.

What RAID levels does the PERC H755 controller support and how does its 8 GB NV cache affect write performance?

The H755 handles RAID 0, 1, 5, 6, 10, 50 and 60; its 8 GB non-volatile cache with battery backup accelerates sustained write IOPS across the ten 960 GB SATA SSDs.

What physical space and mounting hardware does the 1U chassis require?

The server occupies one rack unit and ships with ready rails and a front bezel for direct installation in a standard four-post rack.
