DELL
DELL PowerEdge R670 1U rack server Intel Xeon 6 DDR5
A 1U rack server supporting up to two Intel Xeon 6 processors, 8 TB DDR5 memory and dense E3.S NVMe storage
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height1U
- SecurityCryptographically signed firmware Data at Rest Encryption (S
- CPU TypeIntel Xeon 6
- # of Processors Installed0
- Supports up to two Intel Xeon 6 processors for scalable compute performance
- DDR5 memory architecture with 32 slots enables up to 8 TB capacity
- Up to 20 EDSFF E3.S Gen5 NVMe drives deliver 307.2 TB high-speed storage
- Two x16 Gen5 PCIe expansion slots accommodate full-height accelerators and network adapters
- Silicon Root of Trust plus cryptographically signed firmware secures the boot chain

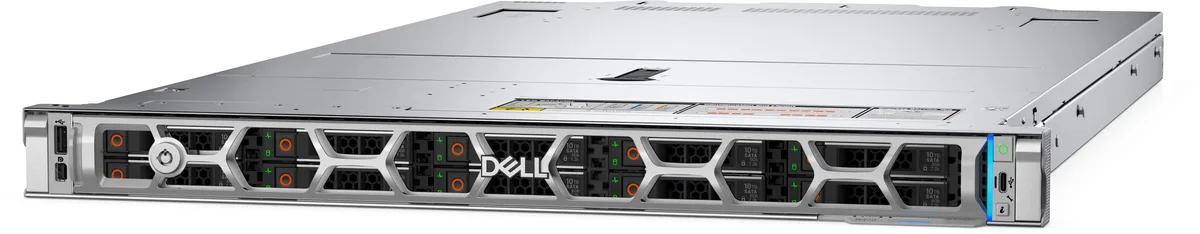

1U Xeon 6 server chassis
The Dell PowerEdge R670 is a 1U rack server designed for general-purpose workloads. It supports up to two Intel Xeon 6 processors and uses DDR5 memory across 32 slots. The system ships without CPUs or memory installed, allowing custom configuration. It suits organisations building dense compute clusters or virtualisation hosts.
Security firmware and flexible PCIe risers
Cryptographically signed firmware, Secure Boot and a silicon root of trust protect the boot chain. Data-at-rest encryption is available with self-encrypting drives and local or external key management. Two front-accessible risers provide up to two x16 Gen5 PCIe slots each, configurable as full-height half-length, full-length or OCP 3.0 modules. An additional rear riser supports up to three x16 or two x8 Gen5 low-profile slots.
Check CPU cooler clearance
Verify that your selected Xeon 6 processors include compatible 1U heatsinks, as none are included. Choose a backplane configuration before ordering: options range from eight E3.S NVMe bays up to twenty E3.S Gen5 bays, plus 2.5-inch alternatives. Ensure your rack depth accommodates the 32.09 to 32.20 inch chassis length and 45.02 lb weight. Confirm power supply redundancy requirements match the chosen configuration.
Highlights
- Supports up to two Intel Xeon 6 processors for scalable compute performance
- DDR5 memory architecture with 32 slots enables up to 8 TB capacity
- Up to 20 EDSFF E3.S Gen5 NVMe drives deliver 307.2 TB high-speed storage
- Two x16 Gen5 PCIe expansion slots accommodate full-height accelerators and network adapters
- Silicon Root of Trust plus cryptographically signed firmware secures the boot chain
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge R670 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 1U |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown TPM 2.0 FIPS, CC-TCG certified Chassis Intrusion Detection |
| CPU Type | Intel Xeon 6 |
| # of Processors Installed | 0 |
| MAX Processors | 2 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 8TB |
| Number of Memory Slots | 32 |
| Expansion Slots | Up to 2 x 16 Gen5 PCIe slots Slot 31 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser Slot 32 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser Up to 3 x 16 or 2 x 8 Gen5 PCIe slots Slot 1 1 x 16 Full Height - Half Length or Full Height - Full Length or 3 x 16 or 1 x 8 Low Profile - Half Length Slot 2 1 x 16 or 1 x 8 Low Profile - Half Length or 1 x 16 OCP 3.0 Slot 4 1 x 16 Full Height - Half Length or 1 x 16 Low Profile - Half Length |
| Expansion Bays | No Backplane configuration Up to 8 x EDSFF E3.S NVMe (SSD) max 122.88 TB also with FIO configuration Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB Up to 20 x EDSFF E3.S Gen5 NVMe (SSD) max 307.2 TB Up to 8 x 2.5 inch SAS/SATA/NVMe Direct/NVMe Raid (SSD) max 122.88 TB 8 x 2.5-inch Universal 245.6 TB Up to 10 x 2.5 inch SAS/SATA (SSD) max 38.4 TB Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) in the rear max 30.72 TB |
| Dimensions | 1.69" x 18.98" x 32.09"-32.20" |
| Weight | 45.02 lbs. |
| Shipping weight | 24.95 kg |
| Package size | 940 × 610 × 152 mm |
Questions about this item
How many Gen5 PCIe lanes does the R670 provide for add-in cards?
Up to two x16 Gen5 PCIe slots are available, configurable as full-height half-length, full-height full-length, or OCP 3.0 on the front riser.
What are the exact chassis dimensions for rack planning?
The 1U chassis measures 1.69" high, 18.98" wide, and 32.09" to 32.20" deep, weighing 45.02 lbs.
What is the correct memory installation sequence for the 32 DDR5 slots?
Populate all 32 DDR5 slots evenly across both processors, following the documented DIMM population order per CPU to enable full 8TB capacity.
