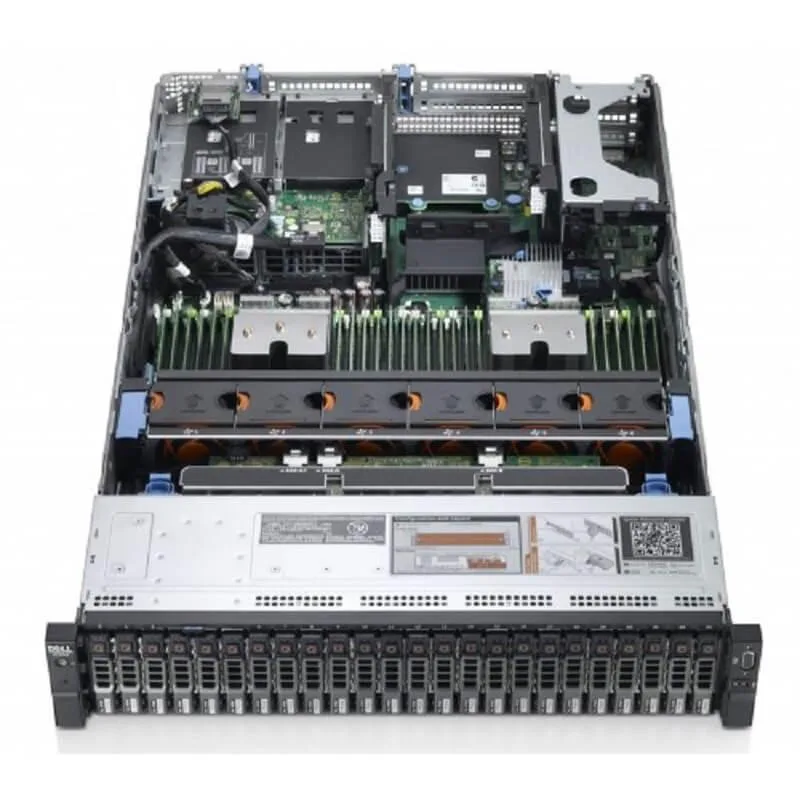

Silver 2U rack server chassis with 24 front 2.5-inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server 2× Xeon E5-2630 v3 2.4 GHz 64 GB DDR4 H730 24× 2.5" bays

SKU CH-4YM7-8ATXM

2U rack server with dual Xeon 2.4 GHz CPUs, 64 GB DDR4, H730 RAID controller and 24 hot-plug 2.5" drive bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 64GB

HDD None

  • Dual Xeon E5-2630 v3 CPUs provide 32 virtual cores for parallel workloads
  • 64 GB DDR4 memory installed across 24 DIMM slots for high capacity
  • H730 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • 24 hot-plug 2.5" drive bays allow up to 52 TB of SAS or SATA storage
  • Dual 750 W redundant power supplies maintain uptime during a power-supply failure

Dense 2U storage server

The Dell PowerEdge R730XD is a 2U rack server with 24 hot-plug 2.5" drive bays, dual Xeon E5-2630 v3 2.4 GHz processors and 64 GB of DDR4 memory. It ships with a Perc H730 RAID controller supporting RAID 0/1/5/6/10/50/60 and two 750 W redundant power supplies. No operating system or drives are included.

Fits high-density SAS/SATA workloads

Buyers who need up to 24 SAS or SATA drives in 2U of rack space will use every bay; buyers who need fewer bays or a different backplane type should look at other chassis. The 24 DIMM slots are already populated to the processor limit of 64 GB, so memory expansion is not possible without a CPU upgrade.

24-bay 2.5" hot-plug capacity

The single specification that decides fit is the 24-bay 2.5" hot-plug layout driven by the H730 controller. If your deployment requires that exact bay count and RAID feature set in 2U, this server matches; if the bay count or drive interface differs, another platform is required.

Highlights

  • Dual Xeon E5-2630 v3 CPUs provide 32 virtual cores for parallel workloads
  • 64 GB DDR4 memory installed across 24 DIMM slots for high capacity
  • H730 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • 24 hot-plug 2.5" drive bays allow up to 52 TB of SAS or SATA storage
  • Dual 750 W redundant power supplies maintain uptime during a power-supply failure

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the dual 2.4 GHz Xeon E5-2630 v3 setup perform in a live workload?

Two eight-core Xeon E5-2630 v3 processors at 2.4 GHz deliver 32 threads with hyper-threading, suited for virtualisation, database and general compute tasks.

What does the H730 12 Gbps RAID controller limit in practice?

The PERC H730 supports SAS and SATA drives at 12 Gbps and handles RAID 0, 1, 5, 6, 10, 50 and 60 across the 24 bays.

What rack space and rails does the 2U chassis require?

The server occupies 2U of rack height, measures 26.8 inches deep by 17.44 inches wide, and includes a rail kit for mounting.
