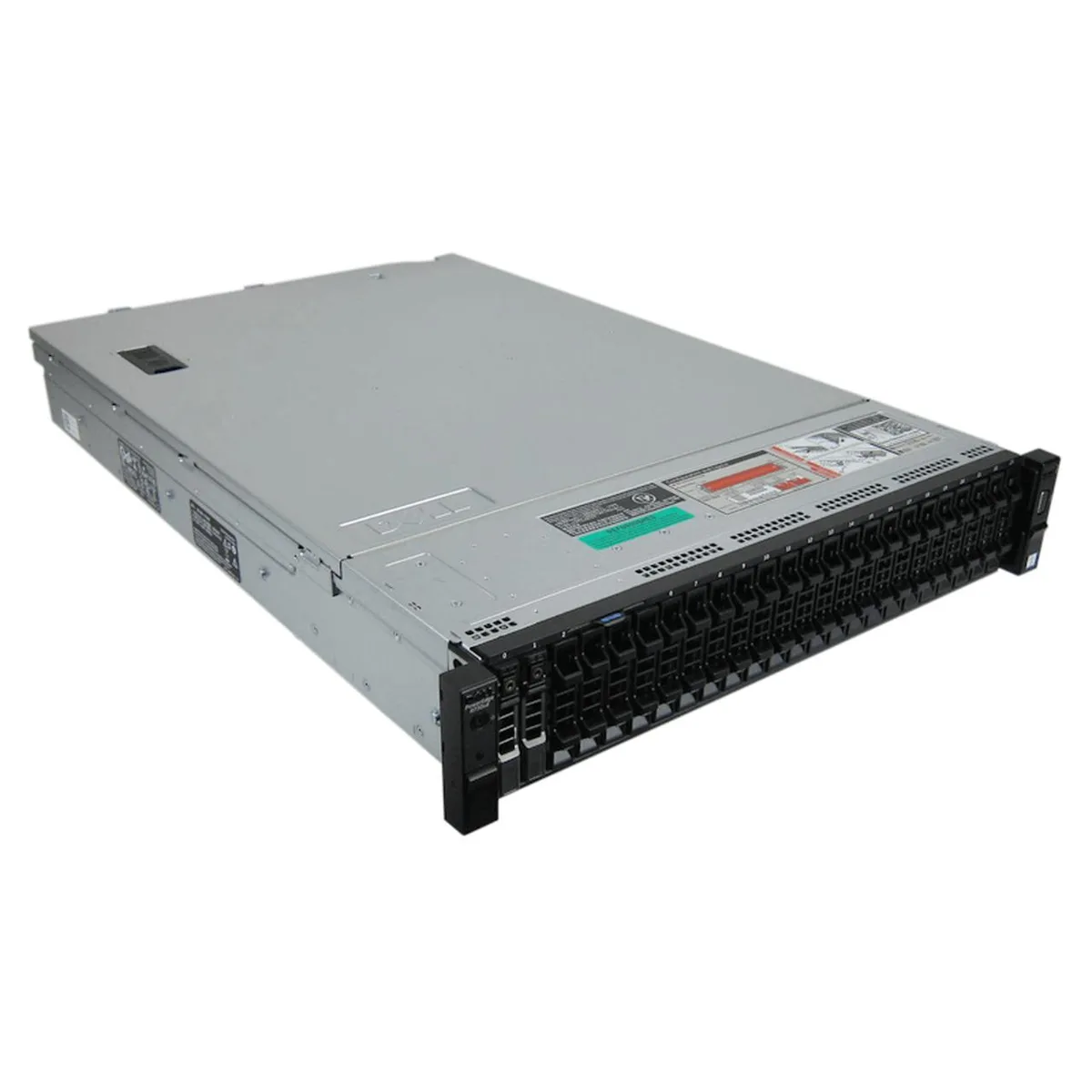

Silver 2U rack server front with twenty-four 2.5-inch drive bays and bezel

DELL

DELL PowerEdge R730xd 2U rack server 2x Xeon E5-2680 v3 2.5GHz 12-core 256GB DDR4 24x 800GB SSD

SKU CH-0QAQ-T3FBY

2U rack server with 24 SATA SSD bays, dual 12-core Xeon CPUs and 256GB DDR4 ECC memory

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.5 GHz
  • CPU SocketLGA 2011-3
  • Dual 12-core Xeon processors reach 3.3GHz turbo for heavy compute
  • 256GB DDR4 registered ECC memory supports up to 1.5TB capacity
  • 24 enterprise 800GB SATA SSDs deliver high-density flash storage
  • PERC H730 controller enables RAID 0/1/5/6/10/50/60 with battery backup
  • Quad-port networking provides 2x 1GbE and 2x 10Gb SFP+ connectivity

Rack server with dual 12-core Xeon processors

The DELL PowerEdge R730xd is a 2U rack server built for midsize and large enterprise workloads. Two Intel Xeon E5-2680 v3 processors deliver 24 cores at 2.5 GHz with 3.3 GHz turbo. 256 GB of DDR4 registered ECC memory and 24 enterprise SATA SSDs provide a dense storage and compute platform. Redundant 750 W power supplies and iDRAC8 Enterprise management support continuous operation.

Suited for storage-heavy virtualisation

This configuration fits organisations running virtual desktop infrastructure, data warehouses or high-performance computing data nodes that benefit from 24 drive bays and hardware RAID 0, 1, 5, 6, 10, 50, 60. Buyers who need more than two processor sockets or memory beyond 1.5 TB should evaluate alternative platforms. Workloads requiring GPU acceleration or different network interfaces are not addressed by this unit.

24-bay 2.5-inch chassis with H730 RAID controller

The single specification that decides fit is the 24-bay 2.5-inch chassis paired with the PERC H730 1 GB controller supporting SATA and SAS drives. This determines how many drives you can install and which RAID levels are available. Verify that your rack space, power budget and drive-type requirements match this 2U form factor before purchasing.

Highlights

  • Dual 12-core Xeon processors reach 3.3GHz turbo for heavy compute
  • 256GB DDR4 registered ECC memory supports up to 1.5TB capacity
  • 24 enterprise 800GB SATA SSDs deliver high-density flash storage
  • PERC H730 controller enables RAID 0/1/5/6/10/50/60 with battery backup
  • Quad-port networking provides 2x 1GbE and 2x 10Gb SFP+ connectivity

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.5 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)24 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose a different drive count or capacity for this server?

The unit ships with 24 bays populated by 800GB SATA SSDs and a PERC H730 controller supporting RAID 0/1/5/6/10/50/60.

What does the 2.5GHz Xeon speed deliver in actual workloads?

Two 12-core E5-2680 v3 processors run at 2.5GHz base with 3.3GHz turbo, providing 24 total cores for virtualization, databases or HPC tasks.

How do the 10Gb SFP+ ports and PERC H730 controller limit throughput?

The X520/I350 card offers two 10Gb SFP+ links, while the H730 handles 12Gb/s SAS/SATA backend bandwidth for the 24 installed SSDs.
