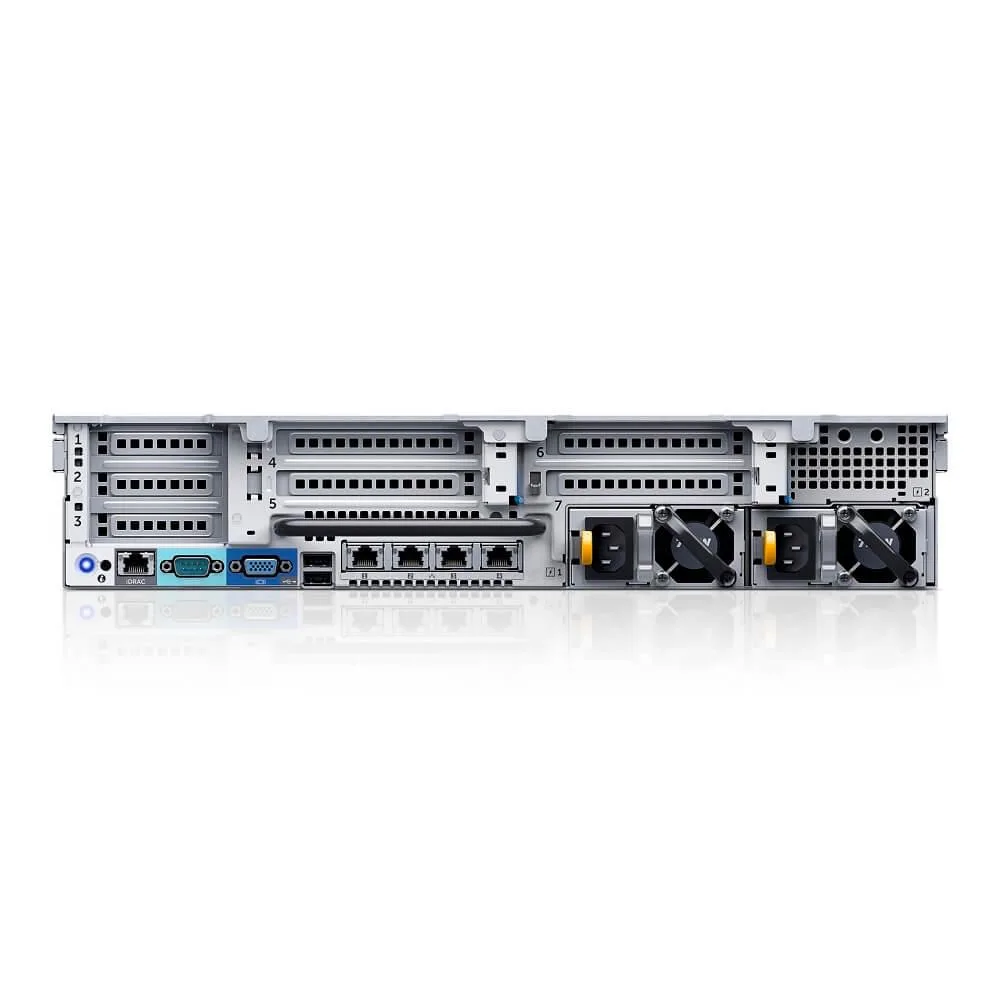

Silver 2U rack server with twelve front drive bays and redundant power supplies

DELL

DELL PowerEdge R730XD 2U rack server E5-2609 v3 1.9GHz 16GB DDR4 3×2TB SAS H330

SKU CH-Q3E7-M2BP2

2U rack server with twelve 3.5-inch hot-plug bays, single Xeon E5-2609 v3 six-core 1.9GHz processor, 16GB DDR4, three 2TB SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

Struck-through versions exist but are not stocked here.

HDD 3 x 2TB SAS

Struck-through versions exist but are not stocked here.

  • 2U rack form factor fits dense datacentre deployments
  • Single Xeon E5-2609 v3 six-core 1.9 GHz processor handles core workloads
  • 16 GB DDR4 memory across 24 DIMM slots supports future expansion
  • Three 2 TB 7.2K SAS drives with H330 RAID controller deliver protected storage
  • Dual 750 W redundant power supplies maintain uptime during power events

Dense 2U storage server

The Dell PowerEdge R730XD fits twelve 3.5-inch hot-plug drives into a 2U rack chassis. A single Xeon E5-2609 v3 six-core processor at 1.9 GHz and 16 GB of DDR4 memory provide the compute base. The Perc H330 controller manages the three installed 2 TB SAS drives in RAID 0, 1, 5, 10, 50 or 60. Dual 750 W redundant power supplies keep the platform running.

Sustained throughput under load

Twelve drive bays fed by a 12 Gbps SAS controller let the array maintain sequential bandwidth across long write sequences without the thermal throttling seen in smaller enclosures. The 7.2 K RPM SAS spindles deliver consistent IOPS for mixed read-write workloads such as backup targets or video archives. Redundant cooling and power remove single points of failure during extended duty cycles.

SAS and PCIe 3.0 interface limits

The H330 tops out at 12 Gbps per lane, so aggregate throughput cannot exceed the controller’s eight-lane PCIe 3.0 link. Maximum raw capacity is 52 TB when all twelve bays are populated with the largest supported drives. Network connectivity defaults to four 1 GbE ports; optional 10 GbE daughter cards require an open PCIe 3.0 slot.

Highlights

  • 2U rack form factor fits dense datacentre deployments
  • Single Xeon E5-2609 v3 six-core 1.9 GHz processor handles core workloads
  • 16 GB DDR4 memory across 24 DIMM slots supports future expansion
  • Three 2 TB 7.2K SAS drives with H330 RAID controller deliver protected storage
  • Dual 750 W redundant power supplies maintain uptime during power events

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the dual 750W redundant supply draw under full load?

Each power supply is rated at 750W; the redundant pair shares load to maintain uptime if one unit fails.

What rack and cabling must I already have for the 12-bay 3.5-inch hot-plug chassis?

The server fits a 2U rack space measuring 26.8 by 17.44 by 3.4 inches and uses SAS or SATA drives with included trays.

Can the H330 controller manage my existing 6Gbps SAS drives alongside the new 7.2K 2TB drives?

Yes, the H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60 and is backward compatible with 6Gbps SAS drives.
