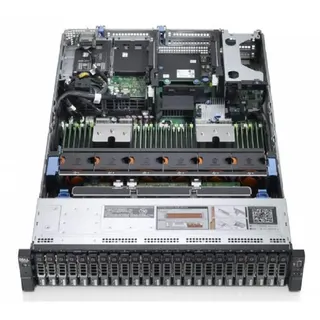

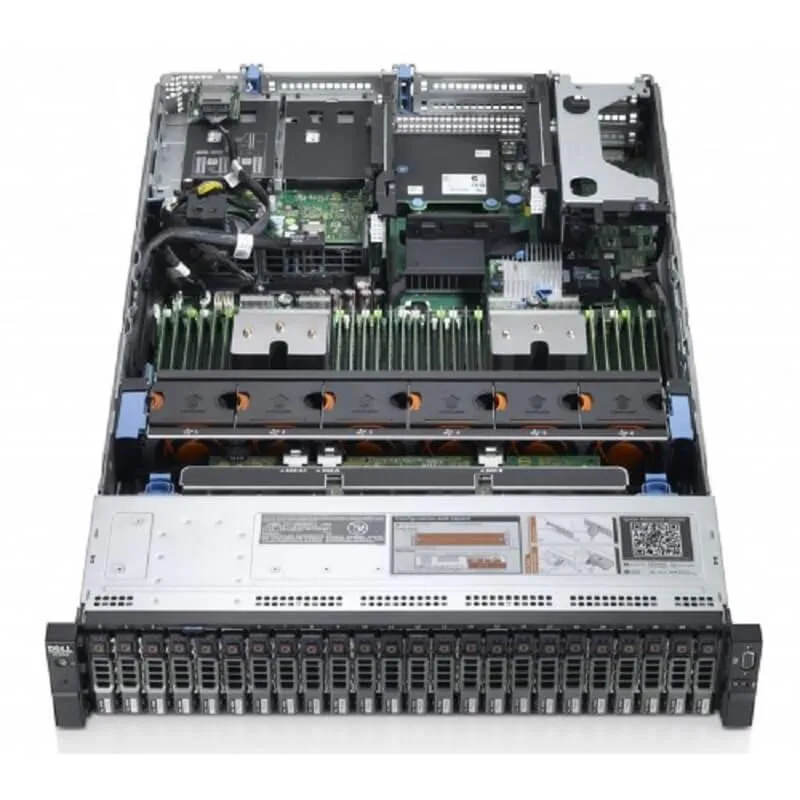

Silver 2U rack server with 24 front 2.5-inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server E5-2609 v3 1.9GHz 64GB DDR4 H330 24×2.5

SKU CH-8Z5X-DTBTP

2U rack server with single Xeon E5-2609 v3, 64 GB DDR4, H330 RAID controller and 24 hot-plug 2.5" drive bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 64GB

HDD None

  • 24 hot-plug 2.5-inch bays support massive local storage
  • Single Xeon E5-2609 v3 six-core 1.9 GHz CPU handles core workloads
  • 64 GB DDR4 memory installed across 24 DIMM slots
  • H330 12 Gbps RAID controller enables RAID 0/1/5/10/50/60
  • Dual 750 W redundant power supplies keep the server running

Rack server for dense storage workloads

The Dell PowerEdge R730XD is a 2U rack server built around a single Intel Xeon E5-2609 v3 six-core processor running at 1.9 GHz. It ships with 64 GB of DDR4 memory installed across 24 DIMM slots, reaching the stated maximum capacity of 64 GB. The platform targets environments that need many local drive bays in a compact rack footprint.

Hot-plug bays and redundant power

Twenty-four 2.5-inch hot-plug bays accept SAS or SATA drives, supported by a Dell PERC H330 RAID controller offering RAID 0, 1, 5, 10, 50 and 60. Two 750 W redundant hot-swap power supplies keep the system running during a supply failure. A DVD-ROM drive and a daughter card with four 1 GbE ports handle basic media and network needs, while iDRAC8 provides remote management.

Single processor limits expandability

Only one CPU is installed, so the second socket remains empty and half the memory channels are unused. Buyers who need the full 1536 GB memory ceiling or the complete PCIe 3.0 lane count must add a second processor. The Matrox G200 video and single power cable are included; rails, bezel, keyboard, mouse and video cable are not.

Highlights

  • 24 hot-plug 2.5-inch bays support massive local storage
  • Single Xeon E5-2609 v3 six-core 1.9 GHz CPU handles core workloads
  • 64 GB DDR4 memory installed across 24 DIMM slots
  • H330 12 Gbps RAID controller enables RAID 0/1/5/10/50/60
  • Dual 750 W redundant power supplies keep the server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What RAID levels does the H330 12Gbps controller support?

The H330 12Gbps RAID controller supports RAID 0, 1, 5, 10, 50, and 60.

How many 2.5" drive bays does the R730XD chassis provide?

The 2U chassis provides up to 24 hot-plug 2.5" drive bays for SAS or SATA drives.

How is the H330 RAID controller installed in the server?

The H330 installs in the dedicated RAID card slot, leaving the six PCIe 3.0 slots free for other cards.
