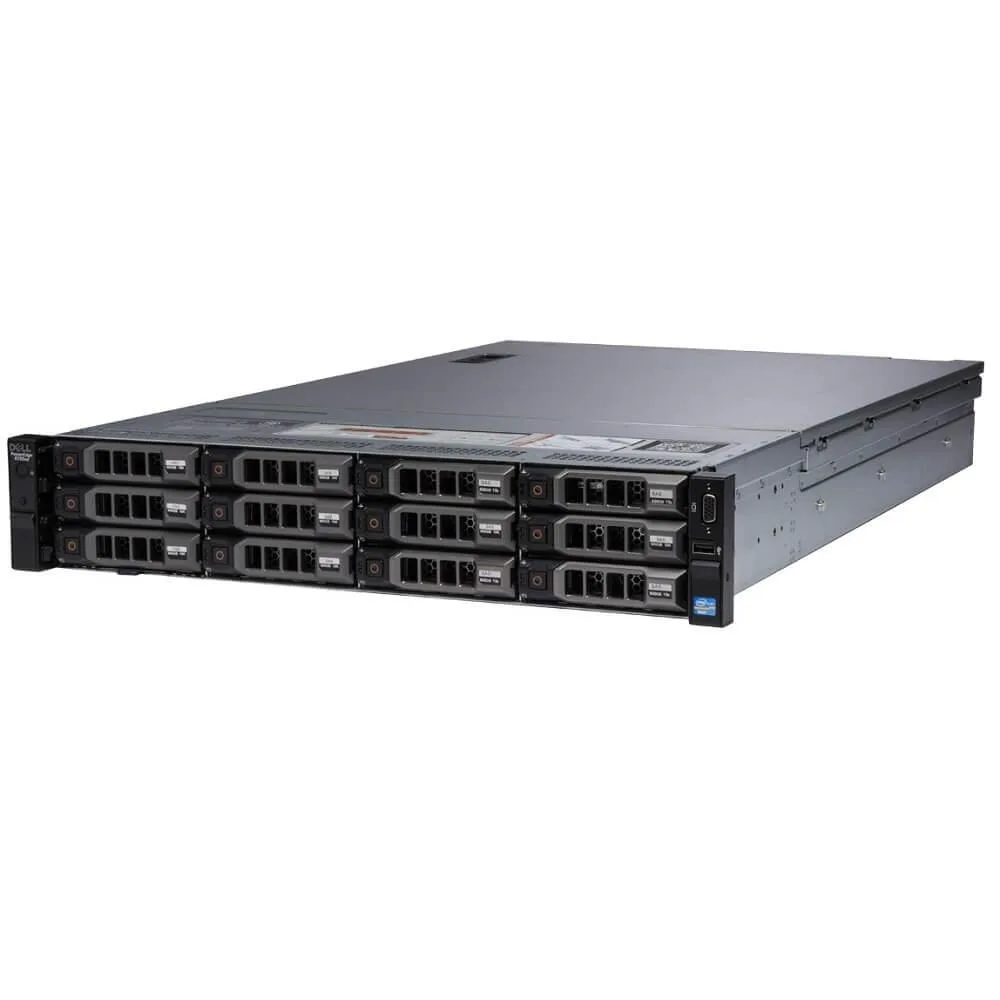

Silver 2U rack server chassis with twelve front 3.5-inch drive bays

DELL

Dell PowerEdge R730XD 2U rack server E5-2650 v3 10-core 2.3 GHz 64 GB DDR4 3×600 GB SAS H330

SKU CH-1XRR-3ZAE9

2U rack server with 10-core Xeon at 2.3 GHz, 64 GB DDR4, three 600 GB 15K SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 64GB

Struck-through versions exist but are not stocked here.

HDD 3 x 600GB

Struck-through versions exist but are not stocked here.

  • 10-core Xeon at 2.3 GHz delivers 20 threads for virtualization
  • 64 GB DDR4 across 24 slots supports memory-heavy workloads
  • Three 600 GB 15K SAS drives provide fast hot-plug storage
  • H330 RAID controller enables RAID 0/1/5/10/50/60 flexibility
  • Dual 750 W redundant power supplies keep the 2U rack server running

Dell PowerEdge R730XD 2U rack server

The Dell PowerEdge R730XD is a 2U rack server built for high-density storage. It uses a single Intel Xeon E5-2650 v3 processor with 10 cores at 2.3 GHz and includes 64 GB of DDR4 memory. Three 600 GB 15K SAS drives and a PERC H330 RAID controller are installed.

Suits storage workloads; not for heavy compute

This server suits buyers who need 12 hot-plug 3.5-inch drive bays in a compact 2U form factor. The H330 controller supports RAID 0, 1, 5, 10, 50 and 60 for local redundancy. Organisations requiring more than one processor or memory beyond 64 GB should look at a different configuration.

Single E5-2650 v3 processor limits expansion

The system ships with one CPU installed and a maximum of two supported. Memory speed runs up to 2400 MT/s depending on the processor capability. The single-socket layout caps memory capacity at 64 GB and leaves the second socket empty for future upgrade.

Highlights

  • 10-core Xeon at 2.3 GHz delivers 20 threads for virtualization
  • 64 GB DDR4 across 24 slots supports memory-heavy workloads
  • Three 600 GB 15K SAS drives provide fast hot-plug storage
  • H330 RAID controller enables RAID 0/1/5/10/50/60 flexibility
  • Dual 750 W redundant power supplies keep the 2U rack server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many 3.5-inch drive bays does the R730XD provide for the installed SAS drives?

The chassis holds up to 12 hot-plug 3.5-inch bays; three ship populated with 600 GB 15 K SAS drives and the remaining bays are open for expansion.

What is the correct order for seating the DIMMs across the 24 slots when adding memory to the single E5-2650 v3 processor?

Populate the 12 slots belonging to processor 1 first, following the channel sequence shown on the air-shroud label, before adding any modules to the second processor's slots.

Which component should be checked first when a drive fails and the H330 controller reports a degraded RAID 5 array?

Replace the failed 3.5-inch SAS drive, let the H330 rebuild the array, then verify the redundant 750 W power supplies are both showing green status.
