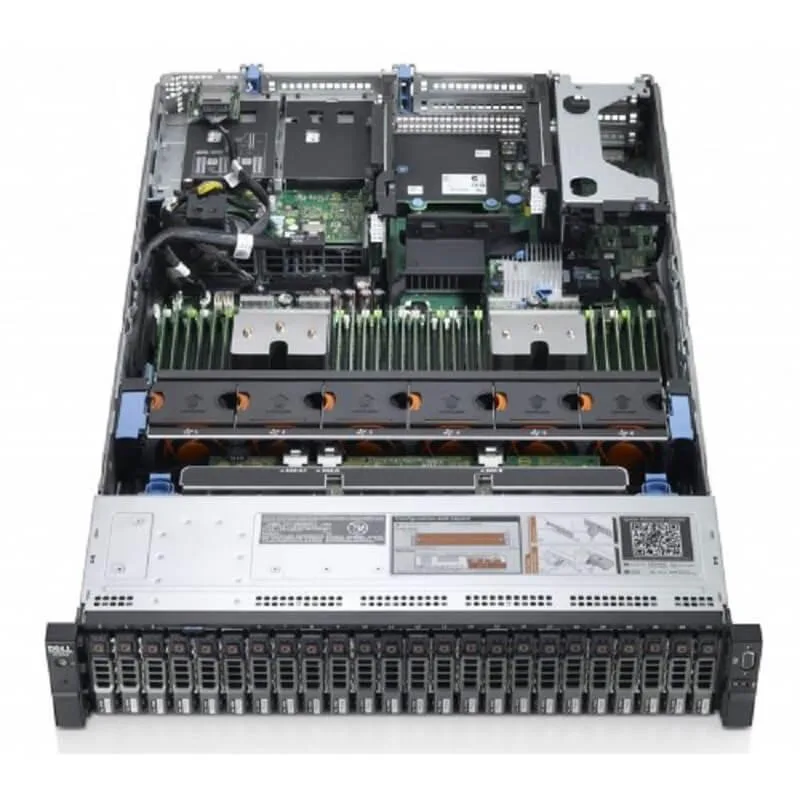

Silver 2U rack server chassis with 24 front drive bays

DELL

DELL PowerEdge R730XD rack server 2U 2x E5-2630v3 2.4GHz 16GB DDR4 3x 300GB SAS H330

SKU CH-MNHX-SYV10

2U rack server with dual Xeon E5-2630v3 CPUs, 16GB DDR4, three 300GB SAS drives and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 3 x 300GB

  • Dual Xeon E5-2630v3 processors deliver 32 virtual cores for parallel workloads
  • 24 hot-plug 2.5-inch bays support up to 52TB of SAS or SATA storage
  • H330 12Gbps RAID controller enables RAID 0, 1, 5, 10, 50, 60
  • Dual 750W redundant power supplies keep the system running during a failure
  • iDRAC8 with Lifecycle Controller provides remote management and monitoring

Dense storage server for archive workloads

The PowerEdge R730XD fits 24 hot-plug 2.5-inch bays into a 2U rack frame. Two Xeon E5-2630v3 processors deliver 16 physical cores at 2.4 GHz with 32 threads when hyper-threading is enabled. The system ships with 16 GB of DDR4 across 24 DIMM slots and three 300 GB 15 K SAS drives on an H330 controller.

Redundant power and tool-less drive access

Dual 750 W hot-swap supplies keep the platform running during a module failure. The front-loading drive carriers slide in without tools, so failed SAS or SATA disks can be replaced while the array stays online. A DVD-ROM and a dedicated RAID card slot leave all six PCIe 3.0 slots free for additional networking or acceleration cards.

Verify rack depth and memory growth plan

The chassis measures 26.8 inches deep, so confirm your cabinet clearance before ordering. The installed 16 GB uses only a fraction of the 24 slots, but the processor memory controller caps DDR4 speed at 2400 MT/s. Buyers who need 10 GbE connectivity must add a supported NDC daughter card, and no operating system is included.

Highlights

  • Dual Xeon E5-2630v3 processors deliver 32 virtual cores for parallel workloads
  • 24 hot-plug 2.5-inch bays support up to 52TB of SAS or SATA storage
  • H330 12Gbps RAID controller enables RAID 0, 1, 5, 10, 50, 60
  • Dual 750W redundant power supplies keep the system running during a failure
  • iDRAC8 with Lifecycle Controller provides remote management and monitoring

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What RAID levels does the H330 controller support?

The H330 supports RAID 0, 1, 5, 10, 50 and 60 across the installed 300 GB SAS drives.

How many 2.5" drive bays does the R730XD chassis provide?

The 2U chassis holds up to 24 hot-plug 2.5" SAS or SATA bays; three are populated with 300 GB 15K drives.

How is the H330 controller installed in the server?

The H330 occupies the dedicated internal RAID slot, not a standard PCIe slot, and connects to the backplane with the supplied mini-SAS cables.
