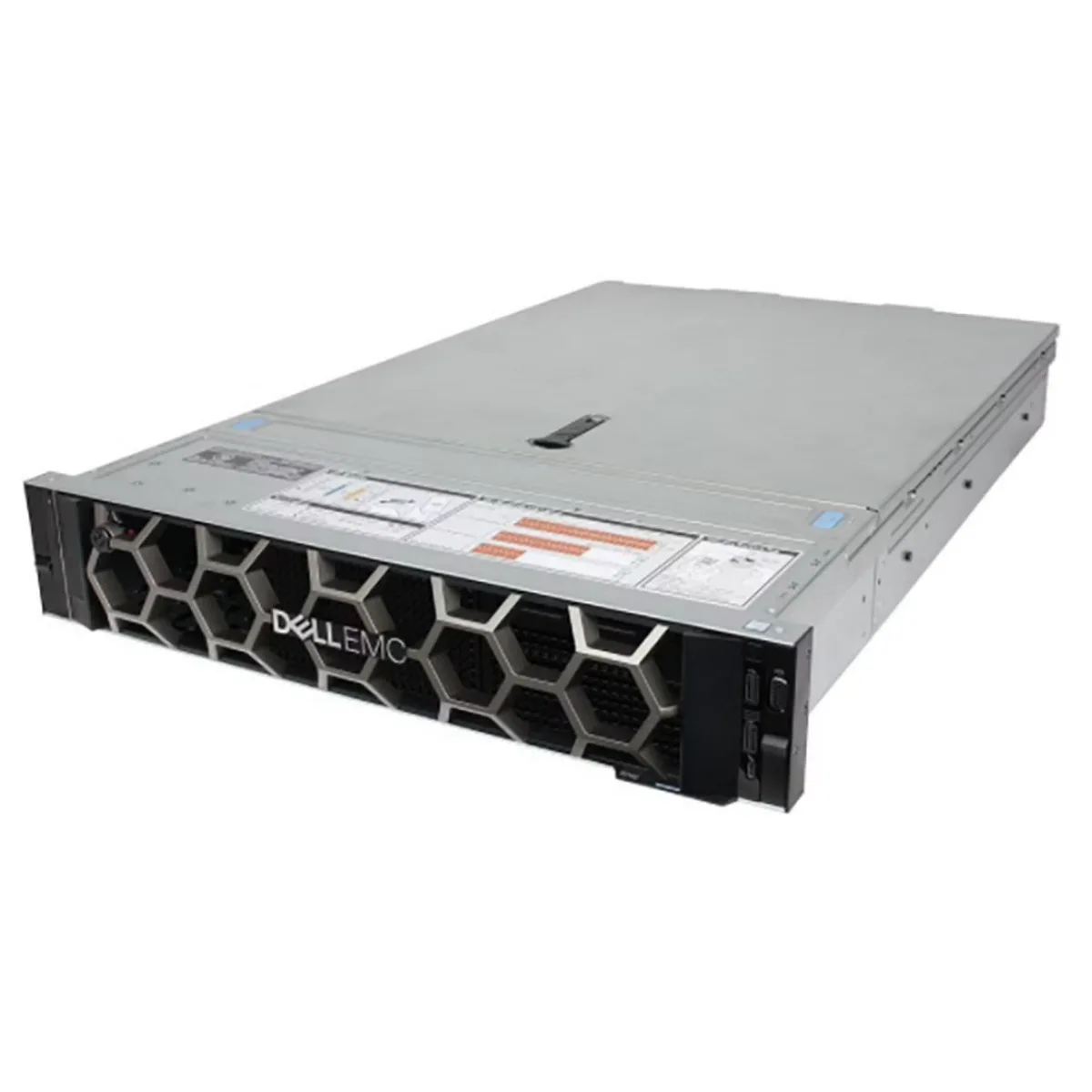

Silver 2U rack server with front bezel, eight 2.5-inch drive bays and redundant power supplies

DELL

DELL PowerEdge R740 2U Rack Server 2x Xeon Gold 6134 3.2GHz 768GB DDR4 2x 800GB SSD H730P

SKU CH-Z8Z5-85B17

2U rack server with dual 8-core Xeon Gold 6134 CPUs, 768GB DDR4 ECC memory, PERC H730P RAID controller, two 800GB SATA SSDs, quad-port 1GbE/10GbE networking, iDRAC9 Enterprise, redundant 750W PSUs.

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed3.20 GHz
  • CPU SocketLGA 3647
  • Dual Xeon Gold 6134 CPUs deliver 3.2 GHz base and 3.7 GHz turbo performance
  • 768 GB DDR4 registered ECC memory across 24 slots for large workloads
  • PERC H730P controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 2 GB cache
  • Two 800 GB enterprise SATA SSDs provide fast, reliable storage
  • Quad-port network card adds 2× 1 GbE and 2× 10 Gb SFP+ connectivity

PowerEdge R740 2U server

The Dell PowerEdge R740 is a 2U rack server built for compute-intensive workloads. Two Intel Xeon Gold 6134 processors each run eight cores at 3.2 GHz with a 3.7 GHz turbo frequency. The system targets virtualisation hosts, database nodes and high-performance applications that demand dual-socket density in a compact form factor.

768 GB DDR4 and dual 800 GB SSDs

Memory is populated across all 24 slots with 32 GB DDR4 2666 MHz registered ECC modules, reaching the installed 768 GB capacity. The PERC H730P controller manages the two 800 GB SATA SSDs and supports RAID 0, 1, 5, 6, 10, 50 and 60 with its 2 GB cache. Memory headroom extends to 3 TB when larger modules are fitted, while the eight 2.5-inch bays allow further storage expansion.

LGA 3647 platform and 12 Gb/s SAS/SATA interface

The dual LGA 3647 sockets limit the server to a maximum of two processors, so no further CPU scaling is possible within this chassis. Storage throughput is bound by the 12 Gb/s SAS/SATA interface on the H730P controller, and networking uses a quad-port daughter card providing two 1 GbE and two 10 Gb SFP+ connections. Remote management is handled by iDRAC 9 Enterprise.

Highlights

  • Dual Xeon Gold 6134 CPUs deliver 3.2 GHz base and 3.7 GHz turbo performance
  • 768 GB DDR4 registered ECC memory across 24 slots for large workloads
  • PERC H730P controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 2 GB cache
  • Two 800 GB enterprise SATA SSDs provide fast, reliable storage
  • Quad-port network card adds 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Specifications

BrandDELL
SeriesPowerEdge R740
ModelR740
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed3.20 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C620
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity3TB
Number of Memory Slots24
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSATA
SSD (Installed)2 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion SlotsRiser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the dual Xeon Gold 6134 3.2GHz CPUs work with my existing DDR4 2666MHz registered ECC modules?

Yes, the server runs 768GB across 24 slots of DDR4 2666MHz registered ECC, so matching modules will operate at the same speed and rank configuration.

How can I confirm the PERC H730P controller and both 800GB SSDs are healthy after installation?

Use iDRAC9 Enterprise to view the controller battery status, RAID virtual-disk state, and each SSD's SMART health; the LCD front panel also shows a green system-health LED when all components report OK.

Which accessories ship with the R740 and what must I source separately?

The box includes the 2U chassis with bezel, sliding Ready Rails, two 750W platinum PSUs, the X520/I350 quad-port network daughter card, and the installed CPUs, memory, controller and SSDs — only additional drives or GPU cards need separate purchase.
