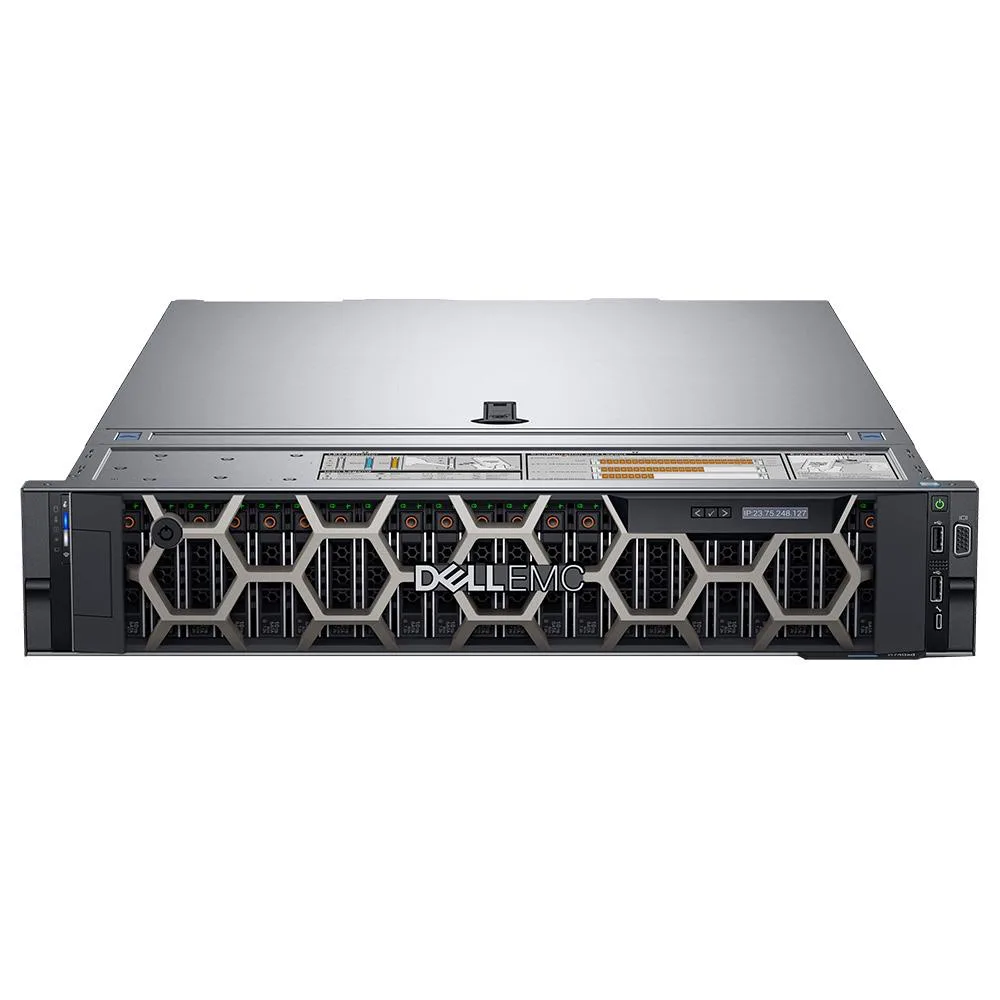

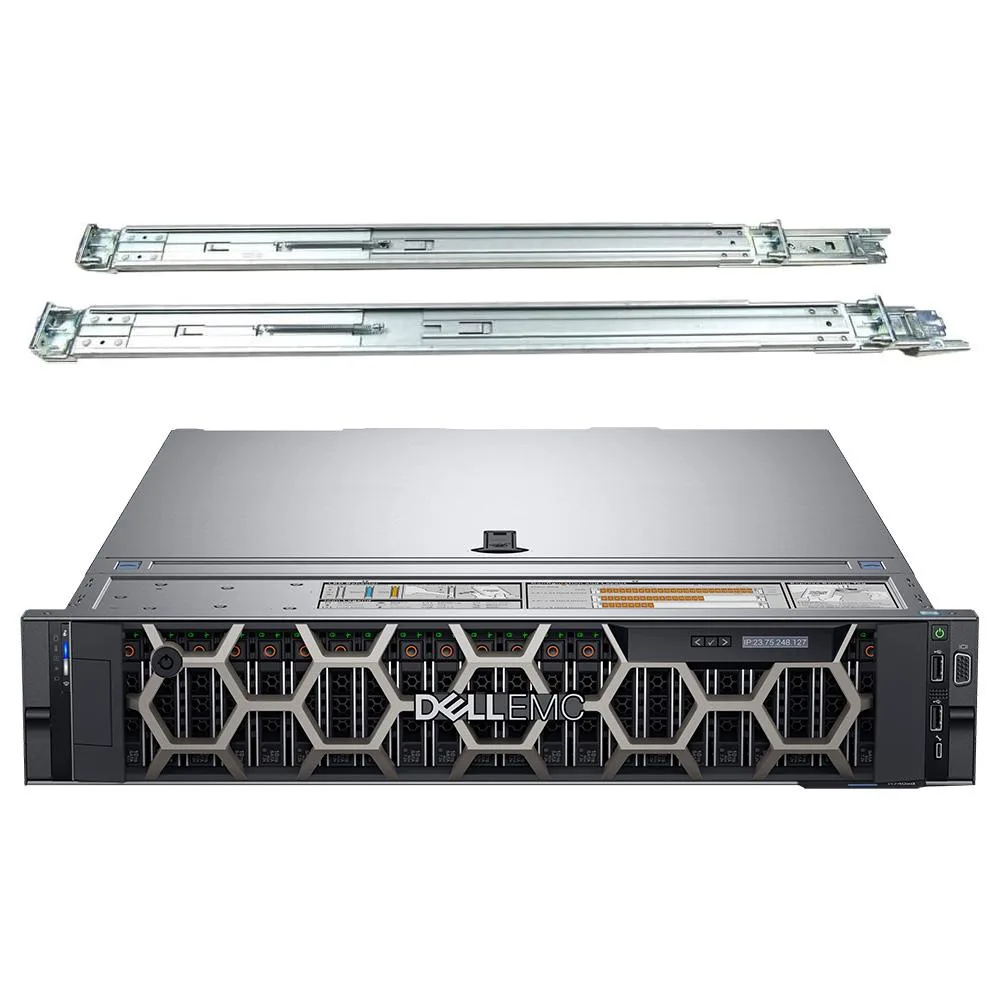

Silver 2U rack server with front drive bays and rail kit

DELL

DELL PowerEdge R740 2U rack server, Dual Xeon 6148 2.40 GHz, 512GB DDR4, 128TB SAS

SKU CH-A61X-N4GEE

A 2U rack server with dual 20-core Xeon processors, 512 GB DDR4 memory and 128 TB of enterprise SAS storage, plus redundant power and iDRAC9 remote management

  • Dual 20-core Xeon Gold 6148 at 2.40 GHz with 3.70 GHz turbo
  • 512 GB DDR4 3200 MHz across 16 modules for large workloads
  • 128 TB enterprise SAS storage on 8 × 16 TB 7.2 K drives
  • PERC H730 RAID controller with 2 GB NV cache protects data
  • Redundant power supplies plus iDRAC9 Express keep the server running

Dense virtualization platform

The Dell PowerEdge R740 is a 2U rack server built for organisations that run dense virtualisation, software-defined storage or high-performance computing workloads. Dual Xeon Gold 6148 processors deliver 20 cores each at 2.40 GHz with turbo up to 3.70 GHz. 512 GB of DDR4 3200 MHz memory across 16 modules supports large VM counts. 128 TB of nearline SAS storage on eight 16 TB drives provides capacity for bulk data.

Scales beyond single-socket limits

This system replaces single-socket servers that hit core or memory ceilings under heavy consolidation. The jump is worth it when workloads demand 40 total cores, 27.5 MB cache per CPU and 512 GB RAM simultaneously. Eight 3.5-inch drive bays filled with 7.2K RPM SAS disks remove the need for external arrays in many storage-heavy deployments. Redundant power supplies keep the platform running during a module swap.

Rack-ready with integrated management

The included rail kit mounts the 2U chassis in standard racks without extra hardware. A PERC H730 RAID controller with 2 GB cache manages the 12 Gb/s SAS drives. Broadcom BCM5720 quad-port 1 GbE provides baseline connectivity. iDRAC9 Express gives remote console and firmware control over a dedicated network link. Windows Server 2022 Standard covers 16 cores; the remaining cores require additional licensing. Drives and memory ship separately for on-site installation.

Highlights

  • Dual 20-core Xeon Gold 6148 at 2.40 GHz with 3.70 GHz turbo
  • 512 GB DDR4 3200 MHz across 16 modules for large workloads
  • 128 TB enterprise SAS storage on 8 × 16 TB 7.2 K drives
  • PERC H730 RAID controller with 2 GB NV cache protects data
  • Redundant power supplies plus iDRAC9 Express keep the server running

Specifications

No published specifications for this item yet.

Questions about this item

Does the included rail kit mount the 740 in a standard 2U rack space?

Yes, the rail kit supplied with the 740 is designed for a standard 2U rack opening.

What must be installed before the server will boot with the Xeon 6148 processors?

The 512 GB of DDR4 memory ships as 16 separate 32 GB modules and must be seated in the DIMM slots before first power-on.

How is a failed drive in the 128 TB SAS array replaced without downtime?

The eight 3.5-inch nearline SAS drives are hot-swappable; pull the faulty tray, insert the replacement, and the PERC H730 controller rebuilds the RAID automatically.
