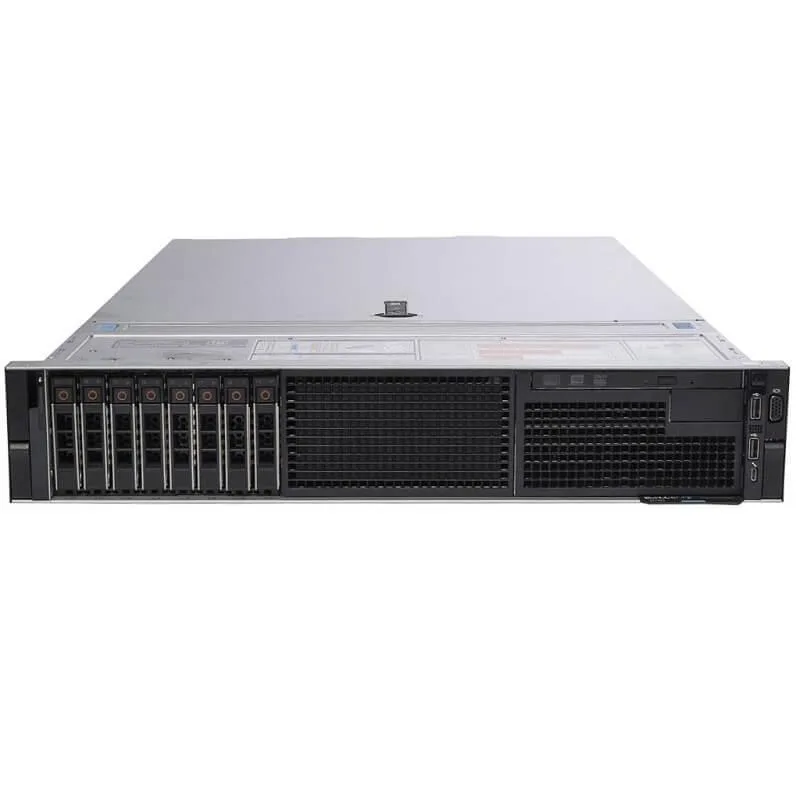

Silver 2U rack server front with eight 2.5 inch drive bays

DELL

DELL PowerEdge R740 2U Rack Server Xeon Gold 6136 12C 3.0GHz 192GB DDR4 H330 8x 2.5

SKU CH-2649-7KV2E

A 2U rack server with a 12-core Xeon Gold 6136 at 3.0GHz, 192GB DDR4, an H330 RAID controller and eight 2.5-inch hot-plug bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C620

Installed Memory Size 192GB

HDD None

  • Intel Xeon Gold 6136 12-core 3.0GHz drives virtualization workloads
  • 192GB DDR4 memory across 24 DIMM slots supports dense VM deployments
  • H330 controller enables RAID 0/1/5/10/50/60 for flexible storage
  • 8 x 2.5" hot-plug bays allow drive changes without downtime
  • Dual 750W redundant power supplies keep the server running during failures

DELL PowerEdge R740 2U server

This 2U rack server is built for business workloads such as virtualization, databases, backups and application hosting. A single Intel Xeon Gold 6136 twelve-core processor running at 3.0 GHz delivers 24 threads for multi-service environments. The unit ships with 192 GB of DDR4 memory installed across 24 DIMM slots. It is aimed at IT teams that need a dense compute platform in a standard rack footprint.

8-bay 2.5-inch hot-plug chassis with H330 RAID

The front panel accepts up to eight 2.5-inch SAS or SATA drives for flexible storage layouts. The integrated Dell PERC H330 controller supports RAID 0, 1, 5, 10, 50 and 60 without an extra card. Two 750 W redundant hot-swap power supplies keep the system running if one unit fails. PCIe 3.0 riser options provide up to eight slots, including four x16 connectors for add-in cards.

iDRAC9 remote management and DVD optical drive

The embedded iDRAC9 with Lifecycle Controller enables out-of-band monitoring, firmware updates and remote console access from any browser. A DVD-ROM drive is included for legacy media installs. The Matrox G200 graphics chip provides basic video output for local console work. Rails, bezel, keyboard, mouse and video cable are not supplied, so plan for those separately.

Highlights

  • Intel Xeon Gold 6136 12-core 3.0GHz drives virtualization workloads
  • 192GB DDR4 memory across 24 DIMM slots supports dense VM deployments
  • H330 controller enables RAID 0/1/5/10/50/60 for flexible storage
  • 8 x 2.5" hot-plug bays allow drive changes without downtime
  • Dual 750W redundant power supplies keep the server running during failures

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R740
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C620
Installed Memory Size192GB
Memory TypeDDR4
Max Memory Capacity192GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity30 TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC9 with Lifecycle Controller, iDRAC9 Express (default). Optional: iDRAC9 Enterprise (upgrade).
LAN Ports4 x Ports
Expansion SlotsRiser options with up to 8 x PCIe 3.0, maximum of 4 x16 slots
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight59.0000LBS

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum memory capacity supported by the installed Xeon Gold 6136 processor?

The installed Xeon Gold 6136 processor supports a maximum memory capacity of 192GB DDR4 across 24 DIMM slots running up to 2666MT/s.

How much power do the redundant supplies draw when the server runs continuously under load?

The server includes two 750W redundant hot-swap power supplies designed to share load and maintain operation if one unit fails.

Which drive trays and cables must I already have to populate the 2.5-inch hot-plug bays?

The 8 x 2.5-inch hot-plug SAS/SATA bays require compatible drive trays and data cables, which are not included with the server.
