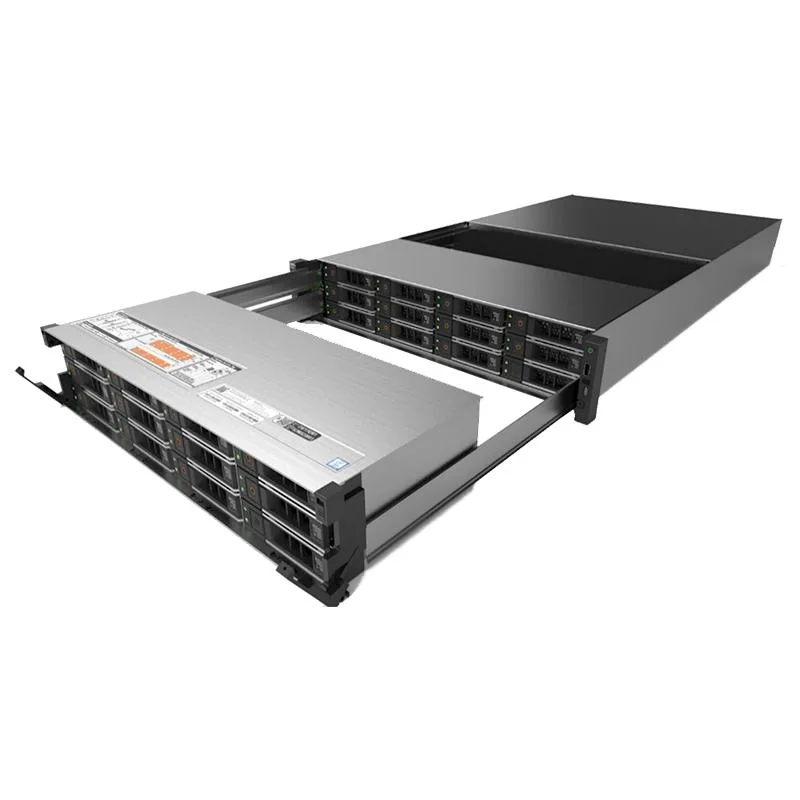

Silver 2U rack server with 26 front drive bays and bezel removed

DELL

DELL PowerEdge R740xd2 rack server 2U 26-bay 2x Xeon Gold 6230 2.1GHz 20-core 512GB DDR4 H330

SKU CH-T63W-TXN5M

2U rack server with 26 3.5-inch drive bays, dual Xeon Gold 6230 20-core CPUs, 512GB DDR4 and H330 storage controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.1GHz (3.9GHz Turbo)
  • CPU SocketLGA 3647
  • Dual Xeon Gold 6230 CPUs deliver 40 cores at 2.1 GHz base clock
  • 512 GB DDR4-2666 ECC memory across 16 slots ensures data integrity
  • PERC H330 controller provides 12 Gb/s SAS and SATA connectivity
  • 26 front-access 3.5-inch drive bays maximise storage density in 2U
  • iDRAC 9 Enterprise plus dual 10/25 Gb SFP28 and dual 1 GbE ports enable remote management

2U Rack Server with 26 Drive Bays

The Dell PowerEdge R740xd2 is a 2U rackmount server built for storage-dense workloads. It ships with two Intel Xeon Gold 6230 processors running at 2.1 GHz with 3.9 GHz turbo, each providing 20 cores. The system includes 512 GB of DDR4-2666 ECC registered memory across 16 slots and a Dell PERC H330 12 Gb/s SAS/SATA storage controller. Twenty-six 3.5-inch drive trays support high-capacity SAS, SATA and SSD media.

Upgrade from Lower-Density or Single-CPU Platforms

This server replaces 1U or 2U systems that offer fewer drive bays or only a single processor. The jump is worth it when workloads demand both high core counts and local storage capacity in the same chassis, such as software-defined storage clusters, backup repositories or media archives. Dual 1100 W platinum power supplies and iDRAC 9 Enterprise management are included for redundancy and remote administration.

Verify Rack Space, Network Uplinks

Confirm the rack can accommodate a 2U form factor and that power distribution supports two 1100 W units. The onboard networking provides dual 1 GbE ports plus a Broadcom 57414 dual-port 10/25 Gb SFP28 OCP 2.0 mezzanine card; ensure compatible SFP28 transceivers and cabling are available. No drives are installed, so select SAS, SATA or SSD media that match the H330 controller and 3.5-inch tray count. Front bezel and ready rails are not included.

Highlights

  • Dual Xeon Gold 6230 CPUs deliver 40 cores at 2.1 GHz base clock
  • 512 GB DDR4-2666 ECC memory across 16 slots ensures data integrity
  • PERC H330 controller provides 12 Gb/s SAS and SATA connectivity
  • 26 front-access 3.5-inch drive bays maximise storage density in 2U
  • iDRAC 9 Enterprise plus dual 10/25 Gb SFP28 and dual 1 GbE ports enable remote management

Specifications

BrandDELL
SeriesPowerEdge
ModelR740xd2
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.1GHz (3.9GHz Turbo)
CPU SocketLGA 3647
Number of CPU Cores20 Core-Processors
CPU FeaturesGold 6230
# of Processors Installed2
MAX Processors2
Installed Memory Size512GB
Memory TypeDDR4
Max Memory Capacity1TB
Number of Memory Slots16
Hard Drive (Installed)None
Storage ControllerDell Perc H330 Controller
HDD Interface0
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
Ethernet Controller1x Integrated Dual Port 1GbE LOM and 1x Dell EMC Broadcom 57414 Dual Port 10/25Gb SFP28 OCP 2.0 Mezzanine Card
Remote ManagementiDRAC9 Enterprise
LAN Ports4 x Ports
Management PortRJ 45
Operating SystemNo
Features0

Questions about this item

Does the 2U chassis accept standard 3.5-inch drive trays for all 26 bays?

Yes, the server ships with 26 Dell EMC 14G PowerEdge 3.5-inch drive trays, one for each front bay.

How is the PERC H330 controller installed, and what step is often missed?

The H330 is a mini mono card that plugs into the dedicated internal storage slot; the step often missed is connecting the two mini-SAS cables from the controller to the backplane before closing the chassis.

Which components are hot-swappable for later replacement without downtime?

The two 1100 Watt platinum power supplies and all 26 drive trays are hot-swappable; the fans are also redundant and hot-swappable.
