DELL PowerEdge R750 2U 12 Bay 2x Xeon Silver 4314 1TB DDR4 12x 4TB H755

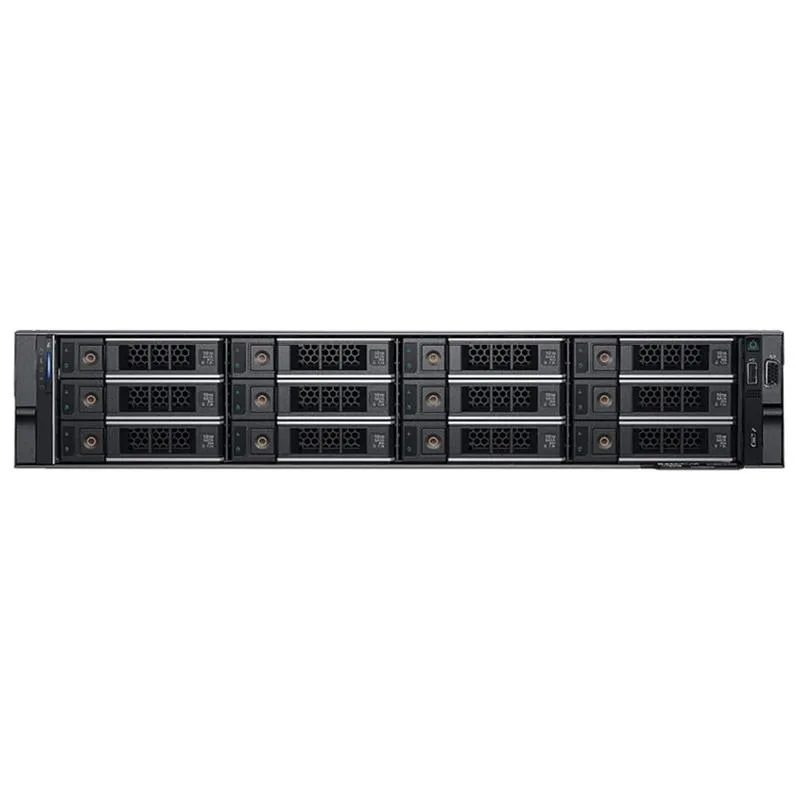

Dell PowerEdge R750 2U 12-Bay Server

The Dell PowerEdge R750 is a 2U rack server built for enterprise workloads. It ships with two Intel Xeon Silver 4314 processors, each offering 16 cores at 2.4GHz with 3.4GHz turbo. The system includes 1TB of DDR4 2666MHz registered ECC memory across 32 DIMM slots. A PERC H755 RAID controller with 8GB NV cache manages the twelve 3.5-inch drive bays populated with 4TB 7.2K SATA hard drives. Dual 1400W platinum power supplies, a Broadcom 5720 quad-port 1GbE OCP 3.0 card, iDRAC9 Enterprise, rails and a front bezel complete the package.

Suited for dense virtualisation

This configuration fits organisations that need high core counts and large memory capacity in a 2U form factor. The twelve 3.5-inch bays provide substantial raw capacity on nearline SATA drives. Buyers who require NVMe performance or 2.5-inch drive density should look at alternative chassis layouts. Workloads demanding GPU acceleration or single-thread frequency beyond 3.4GHz turbo are not addressed by these Silver 4314 CPUs.

Twelve 3.5-inch SATA bays with H755 RAID

The storage subsystem centres on twelve 3.5-inch SATA 6Gb/s bays driven by the PERC H755 controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. This layout determines how many drives you can install and which RAID levels are available. If your design calls for a different bay count, 2.5-inch form factor or NVMe direct attach, this server will not match that requirement.
