Silver 2U rack server with 24 front drive bays, bezel and rails

DELL

DELL PowerEdge R750 2U rack server 2× Xeon Gold 6338 2.0GHz 32C 64GB DDR4 24× 960GB SSD H755

SKU CH-PGZV-FBV6R

A 2U rack server with dual Xeon Gold 6338 32-core processors, 64 GB DDR4 memory, a PERC H755 RAID controller and 24× 960 GB SATA SSDs

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 4189
  • Dual Xeon Gold 6338 CPUs deliver 64 cores at up to 3.2GHz turbo
  • 64GB DDR4 3200MHz ECC memory across 4 modules for reliable throughput
  • PERC H755 RAID controller with 8GB NV cache supports RAID 0/1/5/6/10/50/60
  • 24× 960GB SATA SSDs provide high-capacity flash storage in 2.5" bays
  • iDRAC9 Enterprise plus quad-port 1GbE OCP 3.0 enable remote management and networking

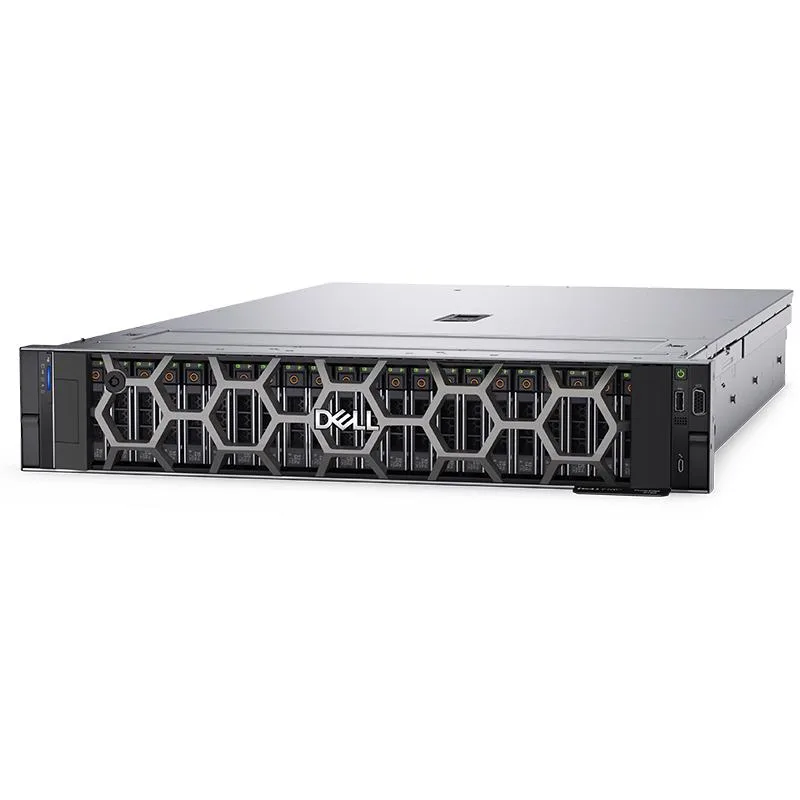

Dell PowerEdge R750 2U server

The Dell PowerEdge R750 is a 2U rack server built for enterprise workloads. It ships with dual Intel Xeon Gold 6338 processors, each running at 2.0 GHz with 32 cores and 3.2 GHz turbo capability. The system includes 64 GB of DDR4 3200 MHz registered ECC memory across four modules. Twenty-four 960 GB SATA SSDs provide high-density solid-state storage.

Suited for virtualisation and database clusters

This configuration suits organisations that need dense compute and storage in a 2U form factor. The dual 32-core CPUs and 24-bay SSD array handle virtualisation, analytics and database workloads with room for growth. Buyers who require NVMe drive support or larger memory capacities from day one should evaluate other platforms. The fixed 64 GB starting memory and SATA-only drive interface limit immediate headroom for memory-intensive or ultra-low-latency applications.

Storage controller defines RAID flexibility

The Dell PERC H755 controller with 8 GB NV cache and battery backs RAID 0, 1, 5, 6, 10, 50 and 60 across all 24 drive bays. This single component determines which redundancy and performance layouts are available for the 960 GB SSD set. Matching the controller feature set to the required RAID level is the decisive step before deployment.

Highlights

  • Dual Xeon Gold 6338 CPUs deliver 64 cores at up to 3.2GHz turbo
  • 64GB DDR4 3200MHz ECC memory across 4 modules for reliable throughput
  • PERC H755 RAID controller with 8GB NV cache supports RAID 0/1/5/6/10/50/60
  • 24× 960GB SATA SSDs provide high-capacity flash storage in 2.5" bays
  • iDRAC9 Enterprise plus quad-port 1GbE OCP 3.0 enable remote management and networking

Specifications

BrandDELL
SeriesPowerEdge R750
ModelR750
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 4189
Number of CPU Cores32-Core Processor
CPU FeaturesGold 6338
# of Processors Installed2
MAX Processors2
Chipset0
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity0
Number of Memory Slots32
Storage ControllerDell Perc H755 Controller
HDD InterfaceSATA
SSD (Installed)24 x 960GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD CapacityNone
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell EMC 15G Broadcom 5720 Quad Port 1GbE OCP 3.0 Network Card
LAN Ports4 x Ports
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How often do the 1400 Watt platinum power supplies need replacement in a 24-bay 2U server?

The two hot-swap 1400 W platinum units are redundant; swap a failed module without downtime, typical server PSU life exceeds five years under normal load

Which component hits its limit first when all 24 SATA SSDs and dual Xeon Gold 6338 CPUs run at full tilt?

The PERC H755 controller with 8 GB NV cache manages the 24-drive RAID set; sustained write throughput will saturate the controller before CPU or memory

What noise and heat levels should I expect from dual 1400 W PSUs and 64-core Xeons running 24/7?

Dual platinum PSUs and 2U chassis fans keep inlet temps within spec; expect data-centre grade acoustic output, not office-quiet operation
