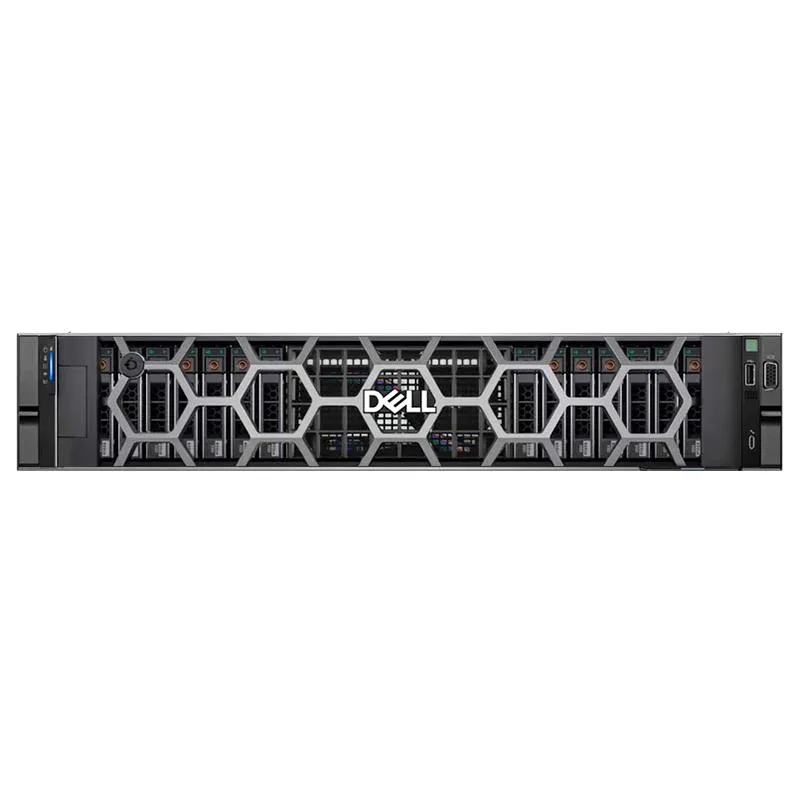

Silver 2U rack server with sixteen 2.5-inch drive bays and dual power supplies

DELL

DELL PowerEdge R760 2U Rack Server 2x Xeon Gold 6416H 2.2GHz 18C 512GB DDR5 H965i 16x2.5 5720 iDRAC9 2x1400W

SKU CH-H6QW-R34W1

A 2U rack server with dual 18-core Xeon Gold 6416H processors, 512 GB DDR5 memory, H965i RAID controller, sixteen 2.5-inch drive bays, quad-port 1 GbE networking, iDRAC9 Datacenter management.

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.2GHz (4.2GHz Turbo)
  • CPU SocketLGA 4677
  • Dual 18-core Xeon Gold 6416H CPUs reach 4.2GHz turbo for compute-intensive workloads
  • 512GB DDR5-4800 ECC memory across 32 slots supports large virtualisation clusters
  • PERC H965i RAID controller with 8GB NV cache handles RAID 0/1/5/6/10/50/60 and NVMe
  • 16 hot-swap 2.5" drive bays plus OCP 3.0 quad-port 1GbE for flexible I/O
  • iDRAC9 Datacenter and dual 1400W platinum PSUs provide enterprise-grade management and redundant power

Enterprise 2U rack server

The Dell PowerEdge R760 is a 2U rack server built for virtualization, AI inference, databases and software-defined storage. Dual Intel Xeon Gold 6416H processors provide 18 cores each at 2.2 GHz with 4.2 GHz turbo. 512 GB of DDR5-4800 ECC registered memory fills 16 of 32 slots. The PERC H965i controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across sixteen 2.5-inch hot-swap bays.

Thermal design with dual 1400 W platinum PSUs

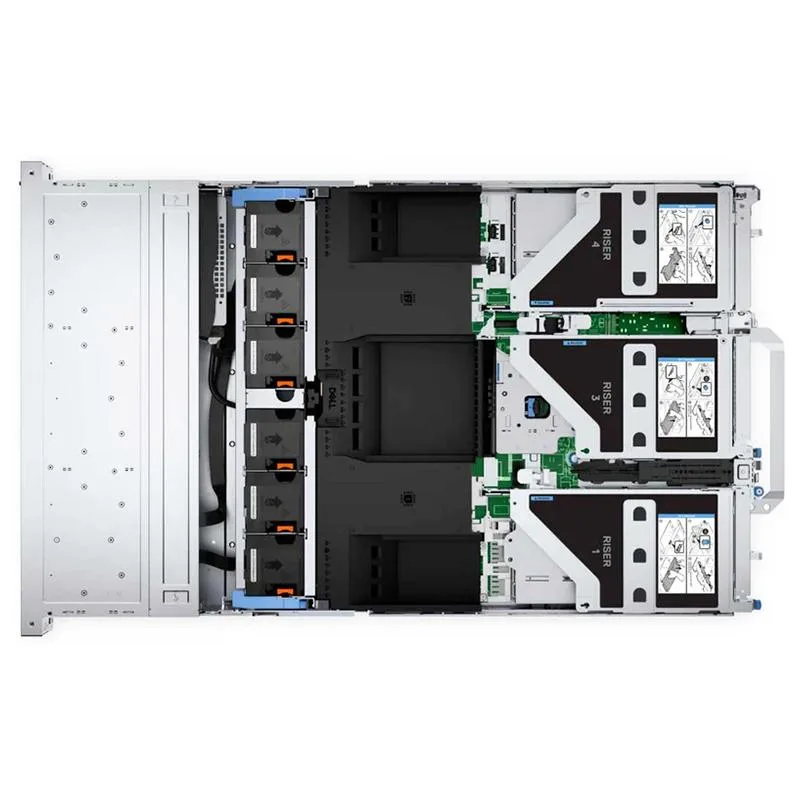

Redundant hot-swap 1400 W platinum power supplies share load in normal operation. The 2U chassis directs front-to-rear airflow across the CPUs, memory and drive bays. iDRAC9 Datacenter monitors inlet temperature, fan speeds and power draw in real time. The Broadcom 5720 quad-port 1 GbE OCP 3.0 adapter adds minimal heat while providing four network links.

Sustained load behaviour

Under continuous compute or storage workloads both Xeon Gold 6416H CPUs maintain all-core frequencies within the 2U thermal envelope. DDR5 ECC memory corrects single-bit errors without interrupting long-running jobs. The H965i controller sustains NVMe, SAS and SATA throughput with its 8 GB NV cache. iDRAC9 Datacenter logs telemetry for capacity planning and firmware updates without host downtime.

Highlights

  • Dual 18-core Xeon Gold 6416H CPUs reach 4.2GHz turbo for compute-intensive workloads
  • 512GB DDR5-4800 ECC memory across 32 slots supports large virtualisation clusters
  • PERC H965i RAID controller with 8GB NV cache handles RAID 0/1/5/6/10/50/60 and NVMe
  • 16 hot-swap 2.5" drive bays plus OCP 3.0 quad-port 1GbE for flexible I/O
  • iDRAC9 Datacenter and dual 1400W platinum PSUs provide enterprise-grade management and redundant power

Specifications

BrandDELL
SeriesPowerEdge
ModelR760
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.2GHz (4.2GHz Turbo)
CPU SocketLGA 4677
Number of CPU Cores18 Core-Processors
CPU FeaturesGold 6416H
# of Processors Installed2
MAX Processors2
Installed Memory Size512GB
Memory TypeDDR5
Max Memory Capacity8TB
Number of Memory Slots32
Hard Drive (Installed)None
Storage ControllerDell Perc H965i Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Ethernet ControllerDell EMC Broadcom 5720 Quad Port 1GbE OCP 3.0 Network Card
Remote ManagementiDRAC9 Datacenter
LAN Ports4 x Ports
Management PortRJ 45
Operating SystemNo

Questions about this item

How do I install the PERC H965i RAID controller in the R760, and what step is often missed?

Seat the H965i in the dedicated front storage controller slot, connect the two SAS cables to the 16-drive backplane, then install the 8 GB NV cache module onto the controller board before closing the chassis.

Which components in this server will need replacement over time, and when?

The 1400 W platinum power supplies are hot-swap; replace a unit if its status LED turns amber. The 8 GB NV cache on the H965i includes a supercapacitor that typically lasts several years before requiring service.

What is the first limit reached when the dual Xeon Gold 6416H processors run at 4.2 GHz turbo under sustained load?

The 1400 W power supply rating and thermal design envelope are the first constraints; the platform throttles core frequency to stay within the 2U cooling capacity before memory bandwidth or PCIe Gen5 links saturate.
