DELL PowerEdge R760 2U Rack Server 2x Xeon Gold 6430 768GB DDR5 4x 1.92TB SATA

Dual 32-Core Xeon Gold 6430 Server

The Dell PowerEdge R760 is a 2U rack server built for enterprise workloads that demand high core counts and large memory capacity. It ships with two Intel Xeon Gold 6430 processors, each delivering 32 cores at a 2.1 GHz base clock with a 3.4 GHz turbo frequency. The system includes 768 GB of DDR5-4800 ECC registered memory across 24 modules, leaving eight slots available for future expansion. This configuration targets virtualization hosts, database clusters and AI inference platforms that benefit from 64 total threads and high memory bandwidth.

Redundant 1400 W Platinum Power Supplies

Two hot-swap 1400 watt platinum-efficiency power supplies provide full redundancy for continuous operation in datacentre environments. The 2U chassis uses Dell's engineered airflow design to cool the dual-socket processor complex, 24 DIMMs and sixteen drive bays under sustained load. Fan speeds scale with inlet temperature and component utilisation, maintaining thermal margins without unnecessary acoustic output during lighter workloads. The redundant power architecture allows a supply to be replaced without shutting down the server.

16-Bay Front Storage with H965i RAID

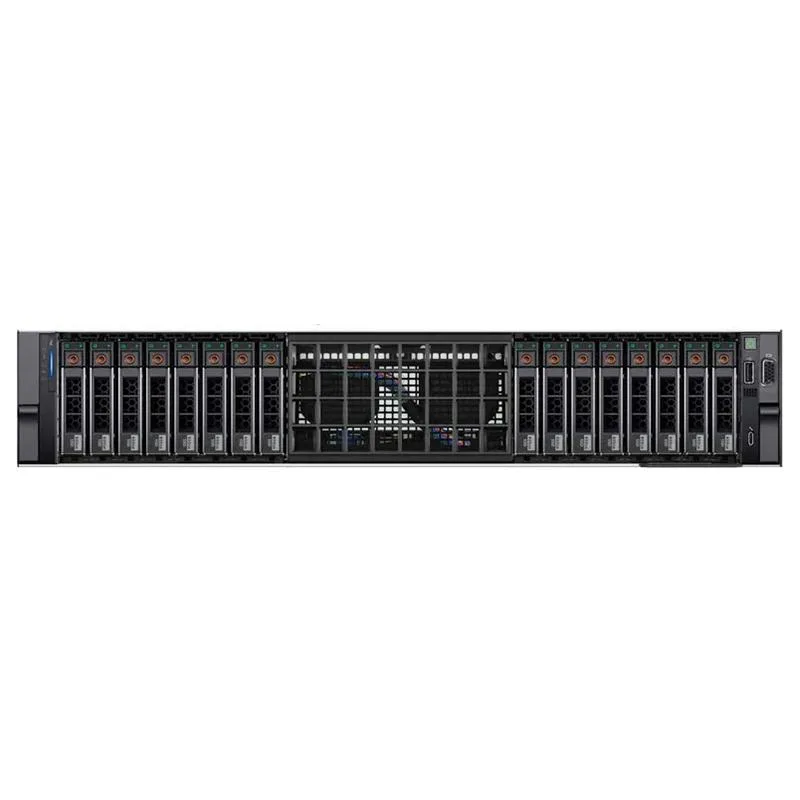

The front panel holds sixteen 2.5-inch hot-swap bays supporting SAS, SATA and NVMe drives; four 1.92 TB SATA SSDs are installed. A Dell PERC H965i controller with 8 GB of non-volatile cache manages RAID levels 0, 1, 5, 6, 10, 50 and 60 across the array. Networking is handled by a Broadcom 5720 quad-port 1 GbE OCP 3.0 adapter, while iDRAC9 Datacenter provides dedicated remote management with Lifecycle Controller automation. Ready Rails and a front bezel are included for standard rack mounting.
