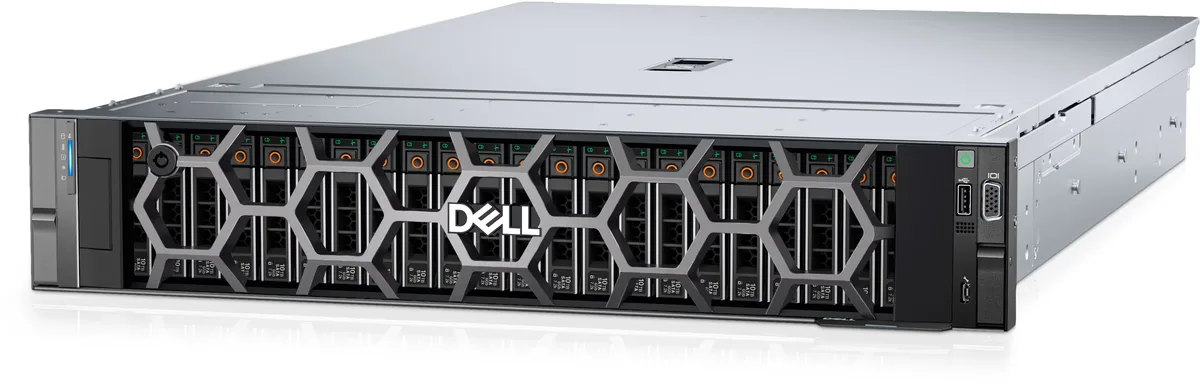

Silver 2U rack server chassis with front drive bays

DELL

DELL PowerEdge R760 2U rack server 32 DDR5 slots 8TB max

SKU CH-K9S1-CPTPP MPN PowerEdge_R760

2U rack server supporting dual Xeon processors, 32 DDR5 slots for 8TB memory, and up to 24 NVMe drives

  • WorkloadMixed Workload Standardization, Database and Analytics, Virt
  • TypeRack
  • Rack Height2U
  • SecurityCryptographically signed firmware Secure Boot Secure Erase S
  • CPU TypeIntel Xeon Scalable
  • # of Processors Installed0
  • Supports dual Xeon processors up to 64 cores each for heavy workloads
  • 32 DDR5 slots deliver 8TB maximum memory capacity at 5600 MT/s
  • Flexible front bays: 12×3.5″ SAS/SATA, 24×2.5″ SAS/SATA/NVMe, 16×EDSFF E3.S NVMe
  • GPU-ready chassis fits 6 single-wide or 2 double-wide accelerators
  • Silicon Root of Trust with TPM 2.0 FIPS and signed firmware secures the platform

2U rack server for mixed workloads

The Dell PowerEdge R760 is a 2U rack server built for mixed workload standardisation, database and analytics, and virtual desktop infrastructure. It supports up to two Intel Xeon Scalable processors on the Intel C741 chipset. The chassis ships with no processors or memory installed, letting you configure the platform for the target application.

32 DDR5 slots and GPU density

The system provides 32 DDR5 DIMM slots with a maximum capacity of 8TB and speeds up to 5600 MT/s on 5th Generation Intel Xeon Scalable processors. It replaces platforms limited to fewer memory channels or lower GPU density by supporting up to 6 single-wide or 2 double-wide GPUs. The upgrade is worth it when workloads demand large memory footprints and accelerator cards in a 2U form factor.

Flexible front and rear storage bays

Front bays accept up to 12 x 3.5-inch SAS/SATA drives, up to 24 x 2.5-inch SAS/SATA/NVMe drives, or up to 16 x EDSFF E3.S Gen5 NVMe drives. Rear bays add up to 4 x 2.5-inch SAS/SATA/NVMe devices. This layout frees up rack space by consolidating high-capacity storage and compute in one enclosure, while the integrated security features such as TPM 2.0 and Silicon Root of Trust protect the platform without extra hardware.

Highlights

  • Supports dual Xeon processors up to 64 cores each for heavy workloads
  • 32 DDR5 slots deliver 8TB maximum memory capacity at 5600 MT/s
  • Flexible front bays: 12×3.5″ SAS/SATA, 24×2.5″ SAS/SATA/NVMe, 16×EDSFF E3.S NVMe
  • GPU-ready chassis fits 6 single-wide or 2 double-wide accelerators
  • Silicon Root of Trust with TPM 2.0 FIPS and signed firmware secures the platform

Specifications

BrandDELL
SeriesPowerEdge R760
WorkloadMixed Workload Standardization, Database and Analytics, Virtual Desktop Infrastructure
TypeRack
Rack Height2U
SecurityCryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Secured Component Verification (Hardware integrity check)
Data at Rest Encryption (SEDs with local or external key mgmt)
CPU TypeIntel Xeon Scalable
# of Processors Installed0
MAX Processors2
ChipsetIntel C741
Installed Memory SizeNo
Memory TypeDDR5
Max Memory Capacity8TB
Memory FeaturesSpeeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors
Number of Memory Slots32
Hard Drive (Installed)None
SSD (Installed)No
Servers_Graphic Installed0
GPU TypeSupports 6 x Single-Wide or 2 x Double-Wide GPUs
Expansion BaysFront:
- Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
- Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
- Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Rear:
- Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
- Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB
Dimensions3.41" x 18.97" x 30.39"
Shipping weight22.68 kg
Package size762 × 635 × 254 mm

Questions about this item

What rack height does the PowerEdge R760 require?

The PowerEdge R760 is a 2U rack server, so it needs 2U of vertical space in a standard rack.

How are the DDR5 memory modules installed, and what step is often missed?

Populate the 32 DDR5 slots according to the processor configuration; the common error is not balancing DIMMs across both processor channels for full 5600 MT/s speed.

When will the TPM 2.0 module need attention?

The TPM 2.0 FIPS and CC-TCG certified module is soldered to the board and does not require replacement; only firmware updates via iDRAC9 are needed over the server life.
