DELL PowerEdge R760 rack server 2x Silver 4410Y 2.0GHz 32GB DDR5 4x 1.92TB H965i 5720 iDRAC9 2x 1400W

Server Identity

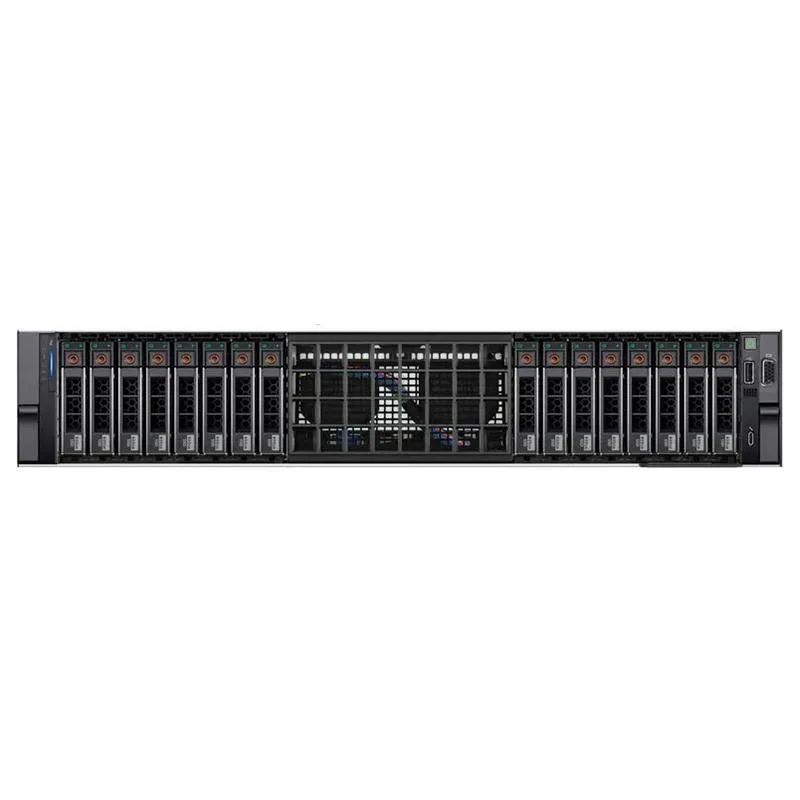

The Dell PowerEdge R760 is a 2U rack server equipped with dual Intel Xeon Silver 4410Y processors running at 2.0GHz with 3.9GHz turbo, providing 12 cores each. It ships with 32GB of DDR5-4800 ECC registered memory across 32 available slots. The platform targets virtualization hosts, database clusters, and software-defined storage nodes that require dense 2.5-inch drive capacity in a standard rack footprint.

Bundled Controller and Drives

The PERC H965i front RAID controller adds 8GB of non-volatile cache and supports RAID 0, 1, 5, 6, 10, 50, and 60 across SATA and NVMe devices. Four factory-installed 1.92TB SATA 6Gb/s 2.5-inch solid-state drives occupy a portion of the sixteen hot-swap bays, delivering immediate redundant storage for operating systems or active datasets. The Broadcom 5720 quad-port 1GbE OCP 3.0 network card provides four copper Ethernet links for management and workload traffic separation.

Installation Notes

The server includes Ready Rails sliding rails and a front bezel for standard four-post rack mounting. Dual 1400W platinum-efficiency hot-swap power supplies install from the rear and share load automatically. iDRAC9 Datacenter enables full remote deployment, firmware updates, and console access over a dedicated management port before the operating system boots. Builders needing more than four drives or additional PCIe expansion should verify cable routing and bracket clearance for the sixteen-bay chassis.
