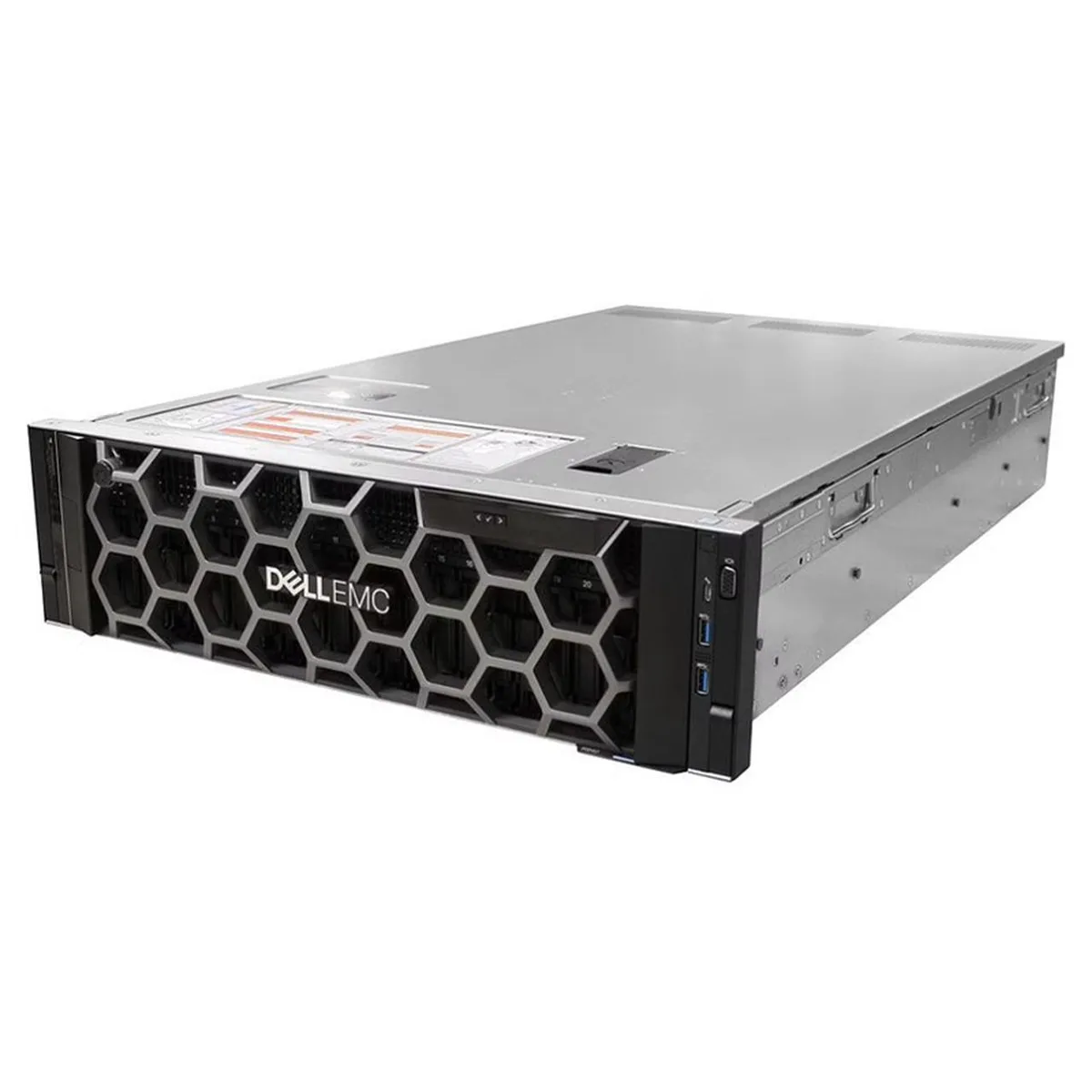

Silver 3U rack server front with eight 2.5-inch drive bays and bezel

DELL

DELL PowerEdge R940 3U Rack Server 4x Xeon Gold 6130 2.1GHz 16-Core 256GB DDR4 H730P

SKU CH-6T75-TRHJF

A 3U rack server with four 16-core Xeon Gold 6130 processors at 2.1 GHz, 256 GB DDR4 memory, a PERC H730P RAID controller, eight 2.5-inch drive trays, quad-port 1 GbE and 10 Gb SFP+ networking.

  • TypeRack
  • Rack Height3U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647

Installed Memory Size 256GB

HDD None

CPU Model Gold 6130

  • Four-socket Xeon Gold 6130 CPUs deliver 64 total cores for heavy workloads
  • 256 GB DDR4 2666 MHz registered ECC memory supports large datasets
  • PERC H730P 2 GB controller enables RAID 0/1/5/6/10/50/60 with battery backup
  • Quad-port X520/I350 network daughter card provides two 1 GbE and two 10 Gb SFP+ links
  • Dual 1600 W platinum power supplies and iDRAC9 Enterprise ensure uptime and remote management

Mission-critical compute density

The Dell PowerEdge R940 packs four Intel Xeon Gold 6130 processors, each with 16 cores at 2.1 GHz and a 3.7 GHz turbo, into a 3U rack chassis. It ships with 256 GB of DDR4 2666 MHz registered ECC memory across eight 32 GB modules. The system targets organisations running large databases, virtualisation clusters or in-memory analytics that need maximum core count in minimal rack space.

Scale-up replacement for dual-socket limits

When a two-socket server hits its processor or memory ceiling, this four-socket design adds headroom without a cluster rewrite. The Intel C620 chipset supports the full complement of four CPUs and up to 6 TB of DDR4 across 48 slots. The jump is worth it when licensing, latency or data-locality favour a single large node over multiple smaller ones.

Memory and storage headroom

Eight 2.5-inch SAS/SATA drive bays connect to a PERC H730P 2 GB controller supporting RAID 0, 1, 5, 6, 10, 50, 60 and pass-through. The 256 GB installed memory handles substantial working sets, while the 48 DIMM slots allow growth to 6 TB for the largest in-memory workloads. Networks attach through a quad-port daughter card with two 1 GbE and two 10 Gb SFP+ links.

Highlights

  • Four-socket Xeon Gold 6130 CPUs deliver 64 total cores for heavy workloads
  • 256 GB DDR4 2666 MHz registered ECC memory supports large datasets
  • PERC H730P 2 GB controller enables RAID 0/1/5/6/10/50/60 with battery backup
  • Quad-port X520/I350 network daughter card provides two 1 GbE and two 10 Gb SFP+ links
  • Dual 1600 W platinum power supplies and iDRAC9 Enterprise ensure uptime and remote management

Specifications

BrandDELL
SeriesPowerEdge R940
ModelR940
TypeRack
Rack Height3U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors Installed4
MAX Processors4
ChipsetIntel C620
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity6TB
Number of Memory Slots48
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion SlotsUp to 13 PCIe Gen 3 Slots, 3x PCIe x8, and 10 x PCIe 3.0 x16 slots
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack size and height does the 3U PowerEdge R940 require?

The server occupies 3U of vertical space in a standard rack and ships with Ready Rails for mounting.

How are the four Xeon Gold 6130 processors installed, and what step is often missed?

Each processor seats in an LGA 3647 socket; the common mistake is not applying thermal paste evenly before locking the heat sinks.

When will the PERC H730P controller battery need replacement?

The 2GB RAID controller uses a battery-backed cache that typically requires a new battery after three to five years of continuous operation.
