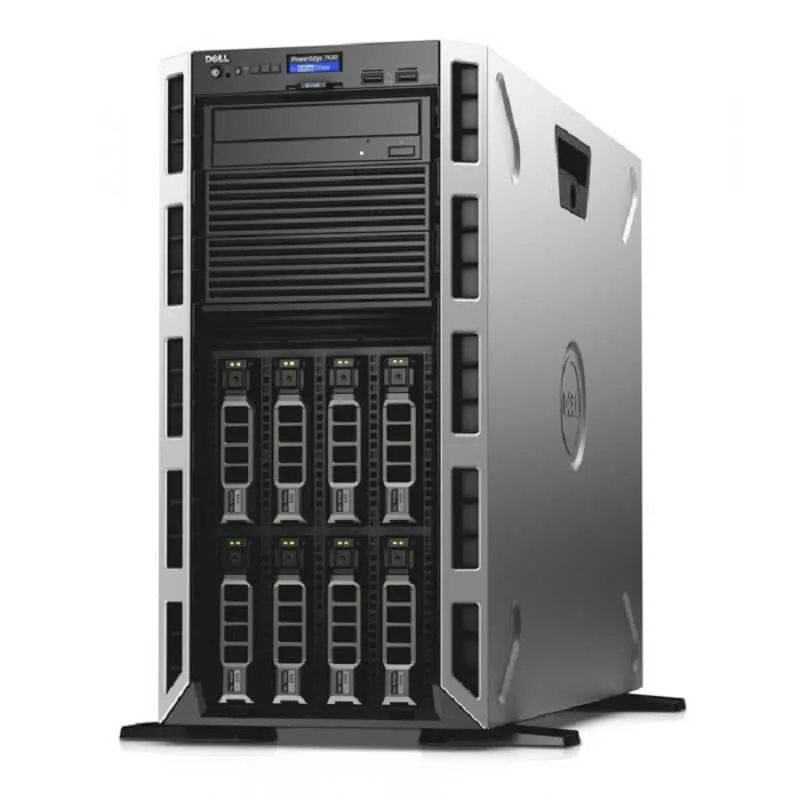

Tower server chassis with eight front drive bays and dual power supplies

DELL

Dell PowerEdge T330 Tower Server Xeon E3-1220 V5 64GB 2x 2TB SAS H330

SKU CH-3DY8-WSV6J

Tower server with Xeon E3-1220 V5, 64GB DDR4, dual 2TB SAS drives and H330 RAID controller in an 8-bay hot-plug chassis

  • TypeTower
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • ChipsetIntel C236
  • Installed Memory Size64GB
  • Quad-core Xeon E3-1220 V5 at 3.0 GHz handles multi-threaded workloads
  • 64 GB DDR4 ECC memory at 2400 MT/s supports data integrity
  • Two 2 TB 7.2K SAS drives with H330 RAID controller for redundancy
  • Eight hot-plug 3.5" bays allow up to 64 TB total storage
  • Dual 495 W redundant power supplies keep the server running

Dell PowerEdge T330 Tower Server

The Dell PowerEdge T330 is a 5U tower server built around a single Intel Xeon E3-1220 V5 quad-core processor running at 3.0 GHz. It arrives with 64 GB of DDR4 ECC unbuffered memory populating all four DIMM slots, reaching the platform maximum. Two 2 TB 7.2K SAS drives and a PERC H330 12 Gbps RAID controller provide hardware RAID 0, 1, 5, 10, 50 and 60. Dual 495 W hot-swap power supplies and iDRAC8 remote management complete the chassis.

Small-business workloads and remote offices

This configuration suits small-business workloads, remote offices or departmental applications that need ECC memory integrity and hot-plug drive serviceability in a quiet tower form factor. The single-socket design and 64 GB memory ceiling rule out heavier virtualisation clusters or databases that demand more cores or larger memory footprints. Buyers who need GPU compute should note the chassis supports optional GPU kits for up to four 300 W accelerators.

64 GB DDR4 memory limit

The platform maximum of 64 GB DDR4 across four slots is the decisive specification; the system ships at that limit so no further memory expansion is possible. If your application requires more memory or additional CPU sockets, a different server platform will be necessary.

Highlights

  • Quad-core Xeon E3-1220 V5 at 3.0 GHz handles multi-threaded workloads
  • 64 GB DDR4 ECC memory at 2400 MT/s supports data integrity
  • Two 2 TB 7.2K SAS drives with H330 RAID controller for redundancy
  • Eight hot-plug 3.5" bays allow up to 64 TB total storage
  • Dual 495 W redundant power supplies keep the server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T330
TypeTower
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
ChipsetIntel C236
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory Features4 DIMM slots. (4GB/8GB/16GB up to 2400MT/s ECC Unbuffered, actual memory speed dependent on the processor capability).
Number of Memory Slots4
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeIntegrated Graphics
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports2 x Ports
Expansion SlotsSupport for up to 4 full height PCIe 3.0 slots
Operating SystemNo
Weight110.0000LBS

Questions about this item

How loud and hot does the T330 get with both 495W power supplies running continuously?

The server uses dual 495W redundant hot-swap power supplies and a 5U tower chassis designed for 24/7 operation, so fan noise and heat output scale with the Xeon E3-1220 V5 workload and the eight drive bays you populate.

Which rails, cables or peripherals do I need to supply myself before the T330 will boot?

A power cable is included, but the rail kit, bezel, keyboard, mouse and video cable are not included, so you must provide those if you plan to rack-mount or manage the server locally.

Can I keep using my existing SATA drives in the T330 alongside the two 2TB SAS drives?

Yes, the eight 3.5-inch hot-plug bays accept both SAS and SATA drives, and the H330 controller supports RAID 0, 1, 5, 10, 50 and 60 across mixed drive types.
