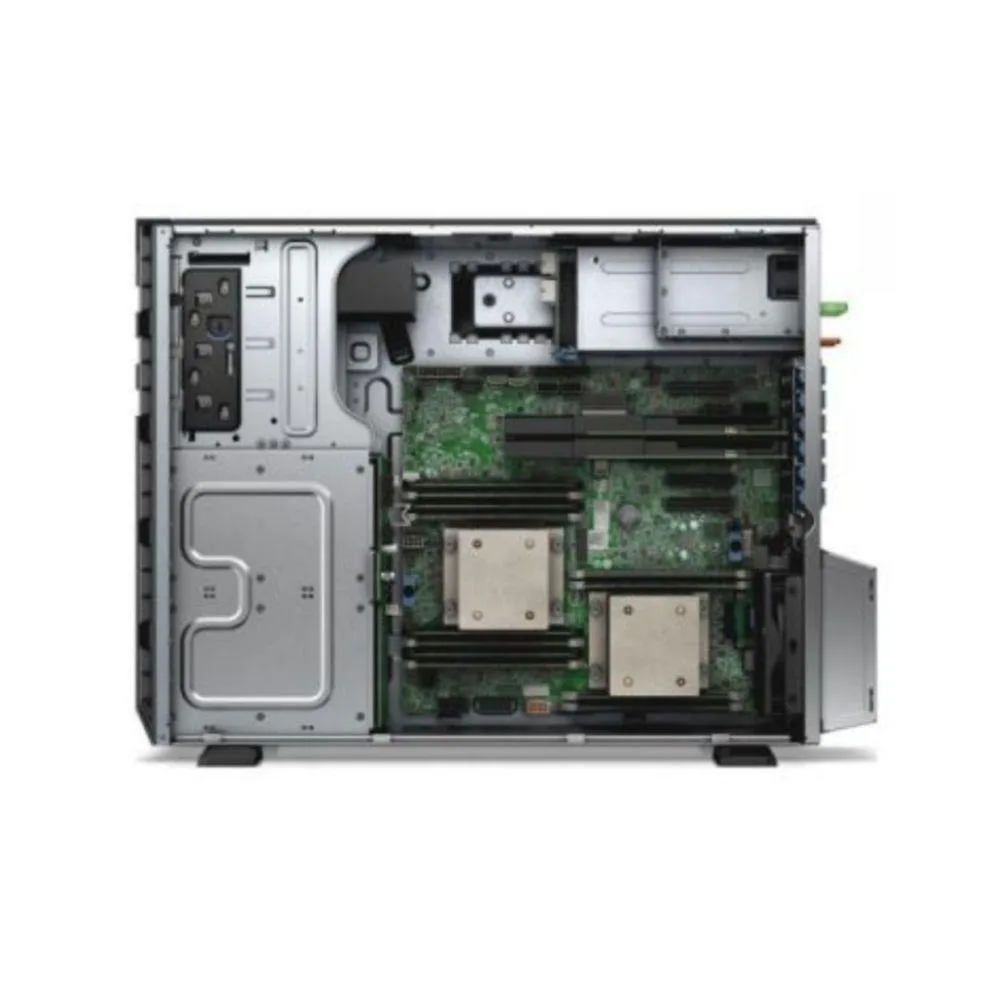

Dell PowerEdge T430 16-bay 2.5-inch rack server silver front bezel

DELL

DELL PowerEdge T430 16SFF 2x Xeon E5-2620 v3 192GB DDR4 rack server

SKU CH-0EG6-1QNW4

Rack server with dual Xeon E5-2620 v3 CPUs at 2.4GHz, 192GB DDR4, PERC H730 SAS controller and 16 drive bays for 2.5" drives

  • TypeRack
  • CPU TypeIntel Xeon
  • CPU Speed2.4GHz
  • # of Processors Installed2
  • MAX Processors2
  • Installed Memory Size192GB
  • Dual Xeon E5-2620 v3 processors provide 2.4 GHz base frequency for multi-threaded workloads
  • 192 GB DDR4 ECC memory supports virtualization density up to 384 GB maximum capacity
  • 16-bay 2.5-inch chassis enables flexible SAS storage configurations with PERC H730 controller
  • iDRAC8 Express remote management allows out-of-band server monitoring and control
  • Dual 1100 W power supplies deliver redundant power for continuous operation

Dual-socket Xeon rack server

The Dell PowerEdge T430 16SFF ships with two Xeon E5-2620 v3 processors running at 2.4GHz and 192GB of DDR4 ECC registered memory. It is built for virtualisation hosts, database nodes or dense storage workloads that need up to sixteen 2.5-inch drive bays. The PERC H730 SAS controller manages RAID arrays across those bays while iDRAC8 Express provides remote console and power control.

Sustained load behaviour

Two six-core CPUs and 192GB of RAM let the chassis run multiple hypervisor threads or heavy database indexes for hours without throttling. Dual 1100W supplies share the load so a single failure does not drop the platform. The 1Gb dual-port 332T adapter handles steady east-west traffic between cluster members without saturating the bus.

Installation and common issues

Depth of 36 inches and 40-pound weight mean two people or a lift are needed to slide the unit into a standard rack; rails are optional and must be requested. No drives are installed, so the buyer must add SAS disks or SSDs and initialise arrays in the H730 BIOS before the OS sees storage. Memory can grow to 384GB using DDR4 RDIMMs only; mixing generations will prevent boot.

Highlights

  • Dual Xeon E5-2620 v3 processors provide 2.4 GHz base frequency for multi-threaded workloads
  • 192 GB DDR4 ECC memory supports virtualization density up to 384 GB maximum capacity
  • 16-bay 2.5-inch chassis enables flexible SAS storage configurations with PERC H730 controller
  • iDRAC8 Express remote management allows out-of-band server monitoring and control
  • Dual 1100 W power supplies deliver redundant power for continuous operation

Specifications

BrandDELL
SeriesPowerEdge
ModelRack Mount
TypeRack
CPU TypeIntel Xeon
CPU Speed2.4GHz
# of Processors Installed2
MAX Processors2
Installed Memory Size192GB
Memory TypeDDR4
Max Memory Capacity384GB
Hard Drive (Installed)9,60
Storage ControllerDell PERC H730 SAS Controller
HDD InterfaceSAS
GPU TypeIntegrated Graphics
Remote ManagementiDRAC8 - Express License
Dimensions36 x 24 x 10 in
Weight40

Questions about this item

How loud and hot does the 16SFF chassis get with dual Xeon E5-2620 v3 CPUs running continuously?

The 16SFF chassis uses dual 1100W supplies and redundant fans to manage heat from the two 2.4GHz Xeon E5-2620 v3 processors during 24/7 operation.

Which drives and caddies do I need to populate the 16 front 2.5in bays?

The PERC H730 SAS controller requires 2.5in SAS drives; 16 drive caddies are needed to fill all front bays.

Will my existing 1GbE network and SAS storage work with the iDRAC8 and PERC H730?

The onboard 332T dual 1GbE adapter and PERC H730 SAS controller integrate directly with existing 1GbE switches and SAS arrays.
