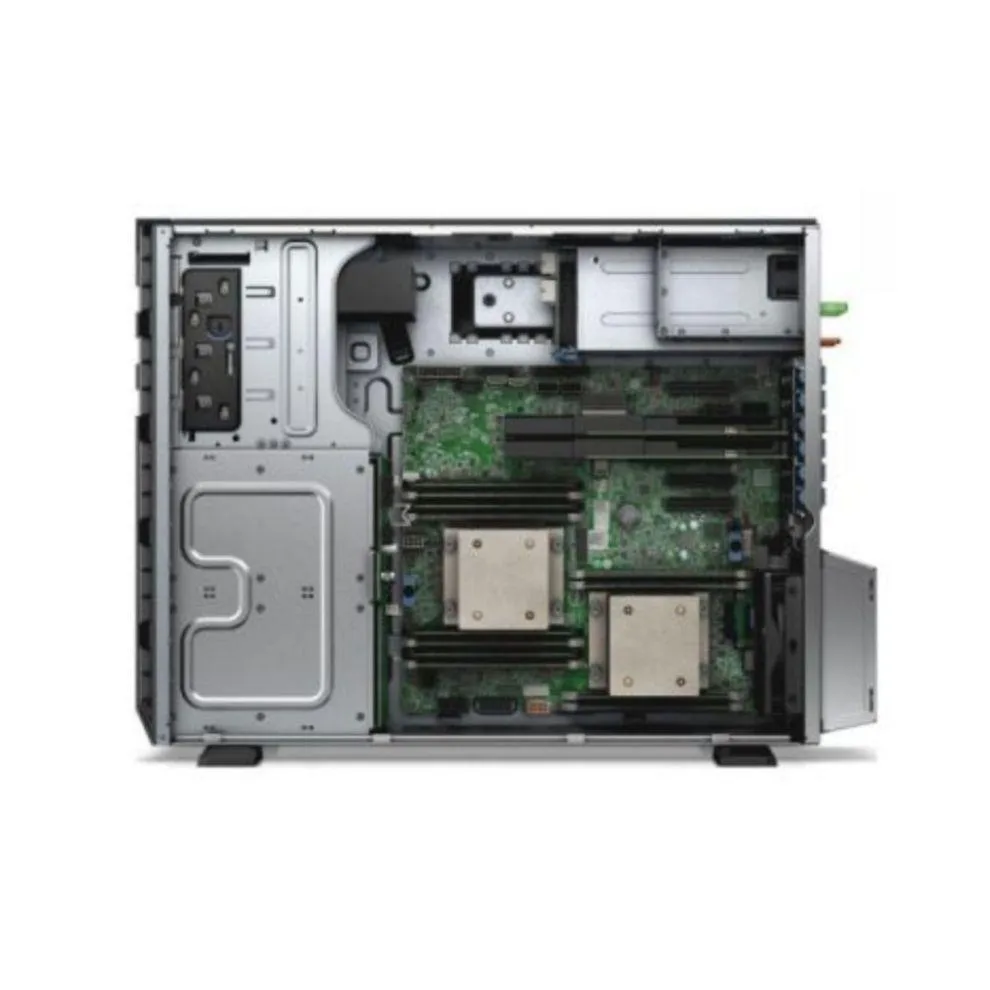

Dell PowerEdge T430 16-bay 2.5-inch rack server silver front

DELL

DELL PowerEdge T430 16SFF 2x Xeon E5-2683 v4 64GB DDR4 rack server

SKU CH-2XP6-93XR3

Rack server with dual 2.1 GHz Xeon processors, 64 GB DDR4 ECC memory and a PERC H730 SAS controller in a 16-bay 2.5" chassis

  • TypeRack
  • CPU TypeIntel Xeon
  • CPU Speed2.1GHz
  • # of Processors Installed2
  • MAX Processors2
  • Installed Memory Size64GB
  • Dual Xeon E5-2683 v4 CPUs deliver 32 cores at 2.1GHz
  • 64GB DDR4 ECC memory scales to 384GB
  • 16 x 2.5" SAS bays with PERC H730 RAID controller
  • iDRAC8 Express enables remote management
  • Redundant 1100W supplies power the 430 rack chassis

Server overview

The Dell PowerEdge T430 is a 2U rack server equipped with two Intel Xeon E5-2683 v4 processors running at 2.1 GHz and 64 GB of DDR4 ECC registered memory. It targets organisations that need dense compute capacity in a standard rack footprint for virtualisation, database or application workloads. The chassis supports up to sixteen 2.5-inch SAS drive bays and includes a PERC H730 RAID controller. Remote management is provided by iDRAC8 Express.

Installation notes

The unit ships with dual 1100 W power supplies and a two-port 1 GbE 332T network adapter already installed. Rails are available on request but are not included by default. Drive bays accept 2.5-inch SAS drives only; no drives are installed from the factory so storage must be added before deployment. Firmware and BIOS are updated to the latest stable release and the system has passed full diagnostics and burn-in testing.

Interface limits

The PERC H730 controller manages SAS storage and the sixteen-bay backplane provides the physical limit for internal drives. Memory can be expanded to 384 GB using DDR4 ECC registered modules across the available slots. Processor sockets are fully populated with the two supported Xeon E5-2683 v4 CPUs so no further CPU upgrades are possible. Network connectivity is limited to the two onboard 1 GbE ports unless additional adapters are installed.

Highlights

  • Dual Xeon E5-2683 v4 CPUs deliver 32 cores at 2.1GHz
  • 64GB DDR4 ECC memory scales to 384GB
  • 16 x 2.5" SAS bays with PERC H730 RAID controller
  • iDRAC8 Express enables remote management
  • Redundant 1100W supplies power the 430 rack chassis

Specifications

BrandDELL
SeriesPowerEdge
ModelRack Mount
TypeRack
CPU TypeIntel Xeon
CPU Speed2.1GHz
# of Processors Installed2
MAX Processors2
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity384GB
Hard Drive (Installed)9,60
Storage ControllerDell PERC H730 SAS Controller
HDD InterfaceSAS
GPU TypeIntegrated Graphics
Remote ManagementiDRAC8 - Express License
Dimensions36 x 24 x 10 in
Weight40

Questions about this item

How do I confirm the PERC H730 RAID controller is operational after installation?

The iDRAC8 Express remote-management interface reports controller status and firmware version; a green status LED on the controller itself also indicates normal operation.

Which drives and rail kit must be purchased separately for the 16-bay 2.5-inch chassis?

No drives are installed; you must supply SAS drives for the 16 bays and order the rail kit separately if rack mounting is required.

Should I choose the 64 GB DDR4 configuration or expand toward the 384 GB maximum for virtualization workloads?

Start with the installed 64 GB DDR4 ECC Registered memory; the system supports up to 384 GB across 24 DIMM slots, so add modules in matched pairs as VM density grows.
