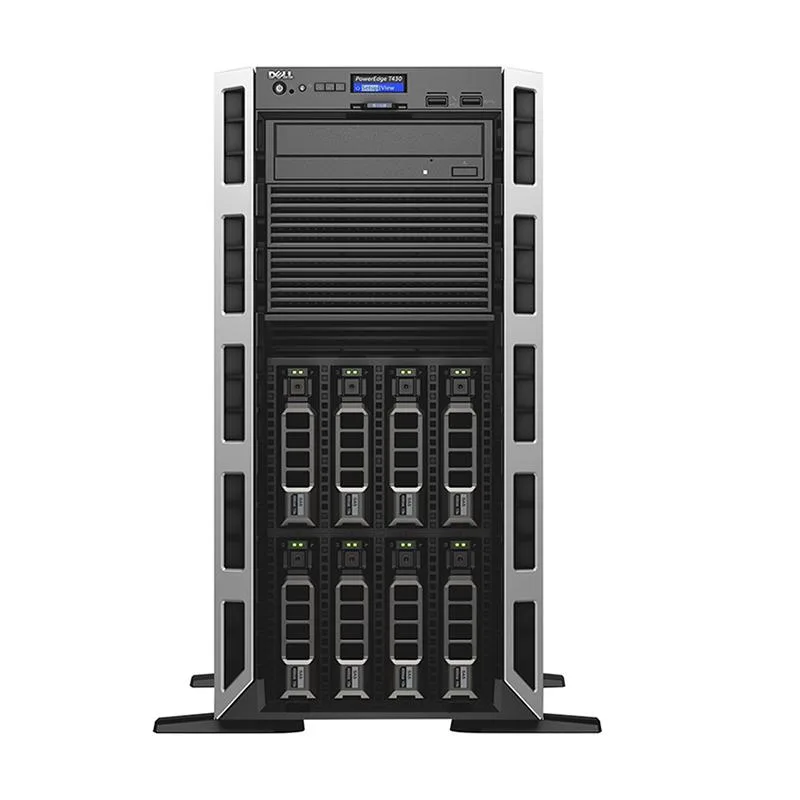

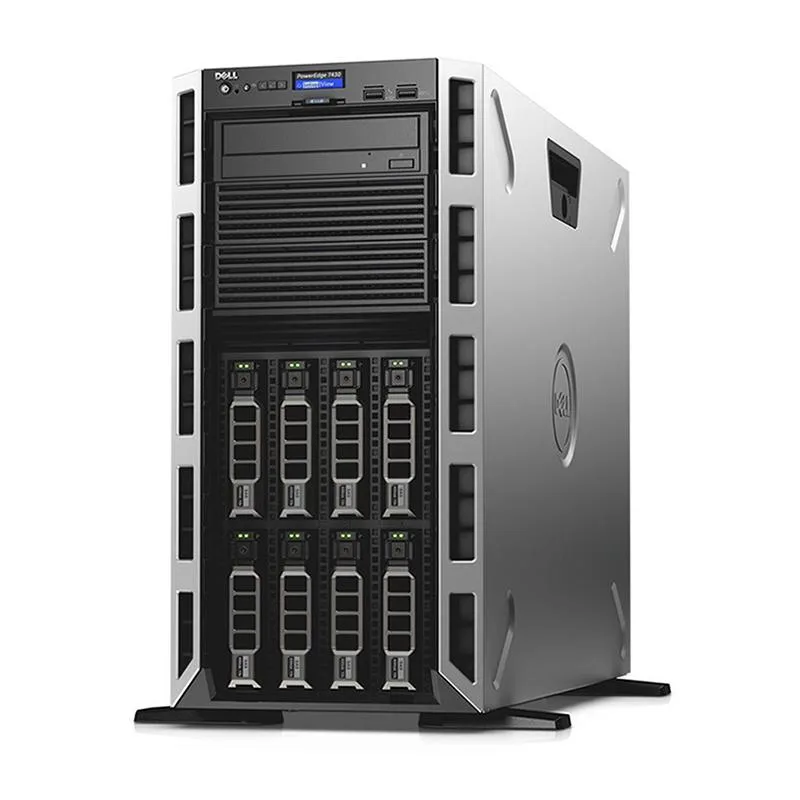

Tower server chassis with eight 3.5-inch drive bays, front bezel absent, silver finish

DELL

DELL PowerEdge T430 rack server 2x Xeon E5-2695 v4 2.1GHz 18-core 64GB DDR4 8x 8TB HDD H730

SKU CH-69FD-GYFPG

Tower server with dual 18-core Xeon processors at 2.1 GHz, 64 GB DDR4 ECC memory, eight 8 TB SATA drives on a PERC H730 RAID controller, dual 1 GbE ports.

  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • # of Processors InstalledE5-2695 V4
  • Dual 18-core Xeon E5-2695 v4 at 2.1 GHz with 3.3 GHz turbo for heavy multi-thread workloads
  • 64 GB DDR4 2400 MHz registered ECC across 4 slots for reliable data integrity
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60 for flexible storage protection
  • Eight 8 TB 7.2 K SATA drives deliver 64 TB raw capacity in 3.5" hot-swap bays
  • Dual 750 W platinum power supplies with iDRAC8 Express for remote management and uptime

Dual 18-core Xeon server with 64GB DDR4

The PowerEdge T430 is a 2U rack server built around two Intel Xeon E5-2695 v4 processors running at 2.10 GHz with a 3.3 GHz turbo. It ships with 64 GB of registered ECC DDR4 memory across four 16 GB modules and eight 8 TB 7.2K SATA hard drives managed by a PERC H730 controller with 1 GB cache. Redundant 750 W platinum power supplies and iDRAC 8 Express remote management come standard.

Suits small-office workloads needing local capacity

This configuration fits file and print serving, mail, collaboration and web serving where large spinning-disk capacity and dual-processor throughput matter. The 12 DIMM slots allow expansion to 384 GB, and the eight 3.5-inch bays are fully populated. Buyers who need solid-state boot drives or more than two processor sockets should consider other platforms because the installed drives are SATA HDDs and the board supports a maximum of two CPUs.

PERC H730 RAID controller with 1 GB cache

The storage controller supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode, backed by a battery-protected 1 GB write cache. It connects to the eight SATA drives through a 12 Gb/s SAS/SATA interface. This single component determines whether the array can deliver the redundancy level and rebuild performance your workload requires.

Highlights

  • Dual 18-core Xeon E5-2695 v4 at 2.1 GHz with 3.3 GHz turbo for heavy multi-thread workloads
  • 64 GB DDR4 2400 MHz registered ECC across 4 slots for reliable data integrity
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60 for flexible storage protection
  • Eight 8 TB 7.2 K SATA drives deliver 64 TB raw capacity in 3.5" hot-swap bays
  • Dual 750 W platinum power supplies with iDRAC8 Express for remote management and uptime

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2695 V4
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 8TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8 MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports2 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How do I install the Dell PERC H730 RAID controller and what step is commonly missed?

The PERC H730 mini card seats in the dedicated internal storage slot; the step often missed is connecting the battery backup cable to the controller before closing the chassis.

What maintenance will the 8TB 7.2K SATA drives and 750W power supplies need over time?

Plan to replace any drive that shows SMART errors or exceeds its rated workload; the hot-swap power supplies can be swapped individually without downtime when a unit flags a fault.

Which limit appears first when the dual Xeon E5-2695 v4 CPUs run sustained 18-core workloads?

The 750W platinum power supplies set the ceiling; sustained all-core turbo at 3.3GHz across both 18-core processors can draw enough power to trigger throttling before thermal limits are reached.
