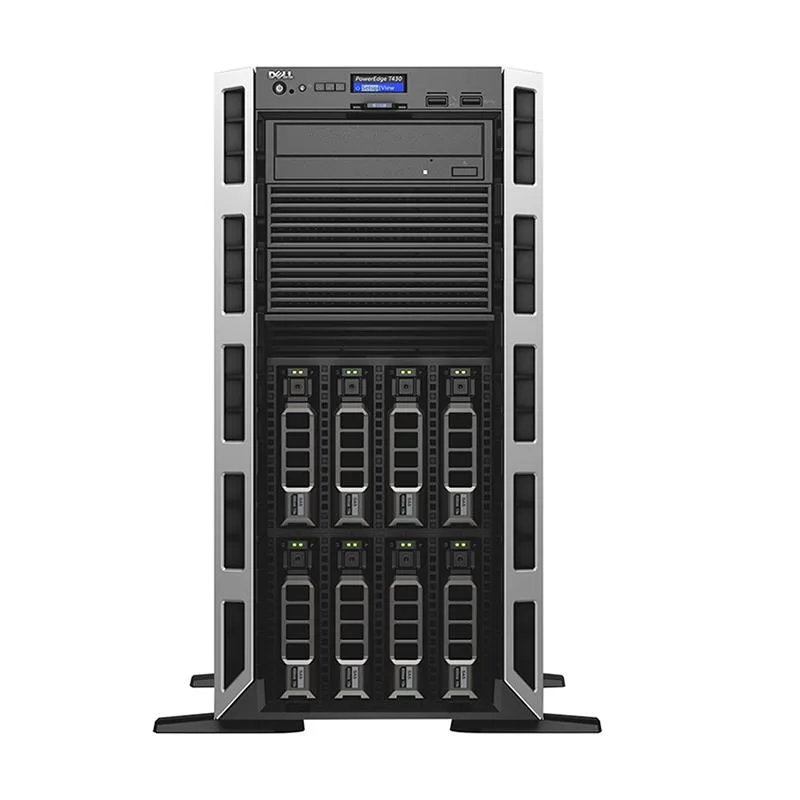

Tower server chassis, eight front 3.5-inch drive bays, matte black finish

DELL

DELL PowerEdge T430 rack server 2x Xeon E5-2695 v4 2.1GHz 18C 16GB DDR4 8x 4TB H730

SKU CH-6RTX-F6PCD

Tower server with dual 18-core Xeon CPUs, 16 GB DDR4, eight 4 TB SATA drives and a PERC H730 RAID controller

  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • # of Processors InstalledE5-2695 V4
  • Dual 18-core Xeon E5-2695 v4 CPUs at 2.1 GHz boost to 3.3 GHz for heavy workloads
  • H730 controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Eight 4 TB 7.2K SATA drives provide high-density local storage
  • iDRAC 8 Express enables remote management without an on-site console
  • Dual 750 W platinum power supplies deliver redundant hot-swap power

Dell PowerEdge T430 dual-Xeon server

The Dell PowerEdge T430 is a tower-format server system built around two Intel Xeon E5-2695 v4 processors, each running at 2.1 GHz with 18 cores. It ships with 16 GB of DDR4 registered ECC memory across two modules and includes a Dell PERC H730 storage controller with 1 GB cache. Eight 3.5-inch 4 TB SATA hard drives are installed in the eight-bay chassis, and dual 750 W platinum power supplies provide redundancy.

Suited for small-office file, mail.

This configuration fits small offices or remote sites that need a single server for collaboration, productivity, mail, file, print, or web serving with ample local storage. Organisations requiring more than 16 GB of memory for virtualisation or large databases should plan additional DDR4 modules, as only two of twelve slots are populated. Buyers needing solid-state storage or 2.5-inch drive bays will not find them in this unit.

384 GB maximum DDR4 capacity

The system supports up to 384 GB of DDR4 registered ECC memory across twelve slots, so the installed 16 GB leaves extensive headroom for memory-intensive applications. The PERC H730 controller manages the eight 7.2K SATA drives in RAID levels 0, 1, 5, 6, 10, 50, or 60, and the dual 1 GbE ports handle network connectivity. iDRAC 8 Express enables remote management without an operating system.

Highlights

  • Dual 18-core Xeon E5-2695 v4 CPUs at 2.1 GHz boost to 3.3 GHz for heavy workloads
  • H730 controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Eight 4 TB 7.2K SATA drives provide high-density local storage
  • iDRAC 8 Express enables remote management without an on-site console
  • Dual 750 W platinum power supplies deliver redundant hot-swap power

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2695 V4
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 4TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8 MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports2 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

What SATA speed does the PERC H730 controller limit the 8 drives to?

The PERC H730 controller runs at 12Gb/s SAS/SATA, but the installed 7.2K drives operate at 6Gb/s SATA, so the array is capped at 6Gb/s per drive.

What rack space and rails are required to mount the T430?

The T430 is a tower chassis that uses Ready Rails for rack mounting; the rails and front bezel are not included with this unit.

How are the two Xeon E5-2695 v4 processors installed, and what step is often missed?

Both CPUs go into the LGA 2011-3 sockets with the supplied heatsinks; the step often missed is applying thermal paste evenly before locking the retention lever.
