DELL

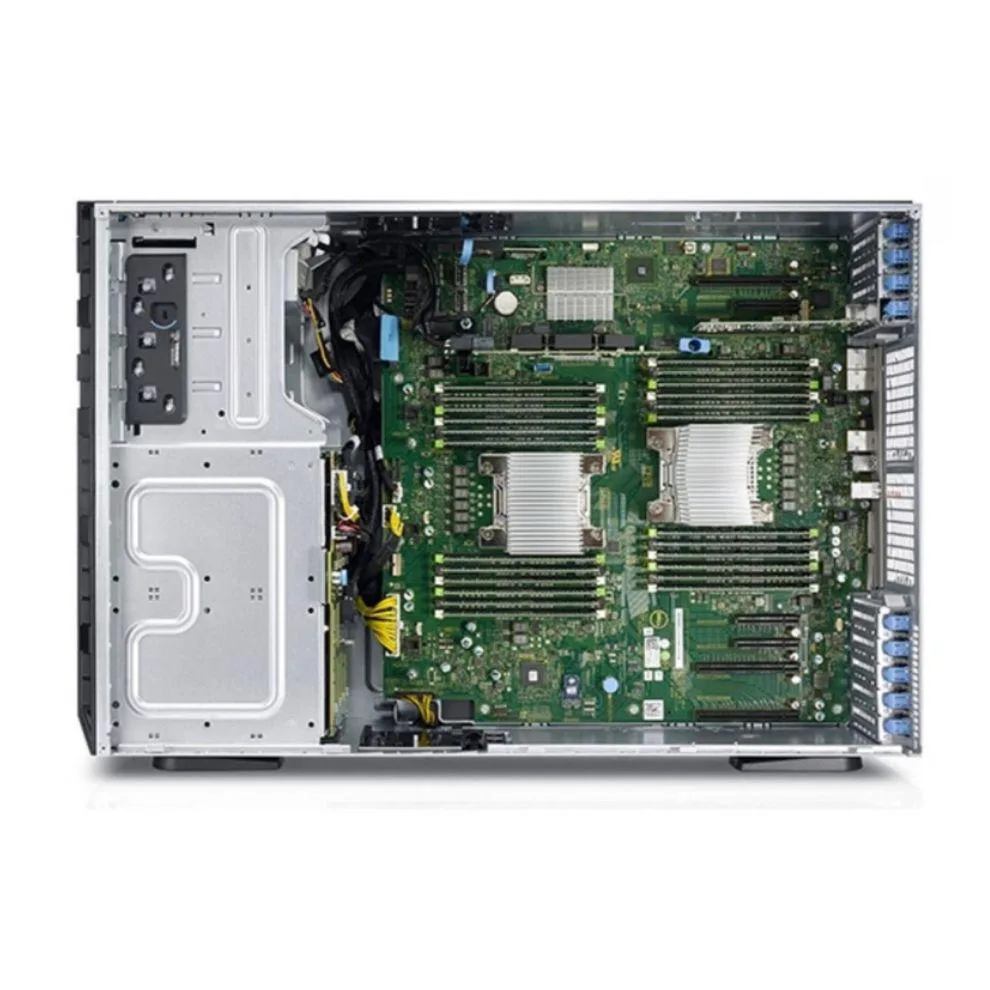

DELL PowerEdge T630 16SFF 2x Xeon E5-2699v4 64GB DDR4 No Drive rack server
A 16-bay rack server with dual 22-core Xeon processors at 2.2GHz, 64GB DDR4, and a PERC H730 SAS controller
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size64GB
- Dual Xeon E5-2699 v4 processors provide 22 cores each for parallel workloads
- 64 GB DDR4 ECC registered memory supports data integrity
- 16 drive bays for 2.5 inch SAS or SATA drives
- PERC H730 RAID controller manages storage arrays
- iDRAC8 Enterprise licence enables remote server management
Dual-socket Xeon server for virtualisation
The DELL PowerEdge T630 fits 16 SFF drive bays and two Xeon E5-2699 v4 processors running at 2.2 GHz. It ships with 64 GB DDR4 ECC memory and a PERC H730 SAS controller. The platform targets organisations consolidating multiple workloads onto one chassis.
64 GB installed with 1.5 TB headroom
Sixty-four gigabytes of DDR4 handle moderate VM density and database caches out of the box. Fourteen additional DIMM slots allow growth toward the 1.5 TB ceiling when workloads expand. Storage capacity depends entirely on the drives you add to the 2.5-inch bays.
Redundant 1100 W supplies cool twin 22-core CPUs
Two 1100 W units share the load while fans ramp only under sustained compute pressure. The iDRAC8 Enterprise licence provides remote power and thermal monitoring without a dedicated KVM. Acoustic output stays low enough for office-adjacent rack rows.
Highlights
- Dual Xeon E5-2699 v4 processors provide 22 cores each for parallel workloads
- 64 GB DDR4 ECC registered memory supports data integrity
- 16 drive bays for 2.5 inch SAS or SATA drives
- PERC H730 RAID controller manages storage arrays
- iDRAC8 Enterprise licence enables remote server management
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 64GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Hard Drive (Installed) | 8,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions about this item
Will the two Xeon E5-2699 v4 CPUs at 2.2 GHz fit into my current DDR4 memory channels?
The system ships with 64 GB of DDR4 ECC registered memory installed across the two processors and supports up to 1.5 TB total capacity.
How can I confirm the PERC H730 RAID controller is operating correctly after installation?
The controller appears in the iDRAC8 Enterprise interface and runs its own POST self-test; a green status LED on the card and clean firmware logs indicate normal operation.
Which components are included in the 16-bay 2.5-inch chassis and what must I supply?
The server includes two Xeon E5-2699 v4 CPUs, 64 GB DDR4 RAM, PERC H730 controller, dual 1100 W power supplies, 2-port 1 GbE 332T adapter, and iDRAC8 Enterprise; drives and rail kit are not included.
