DELL

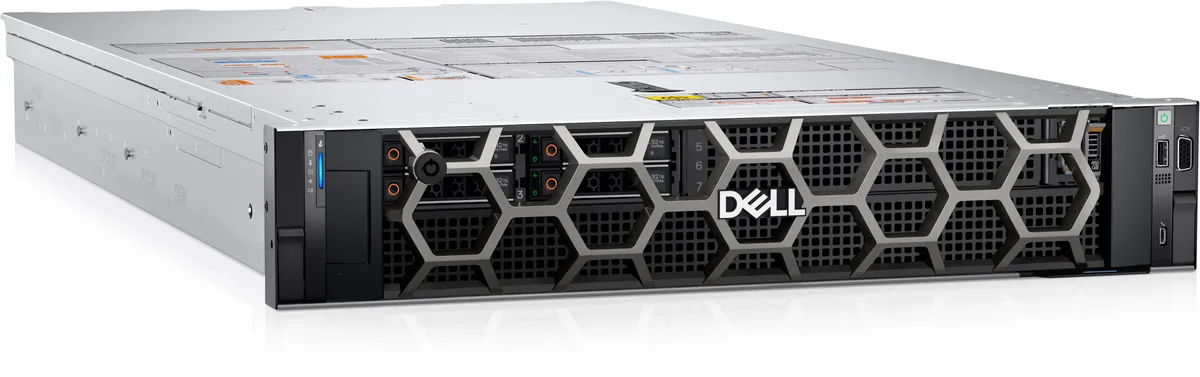

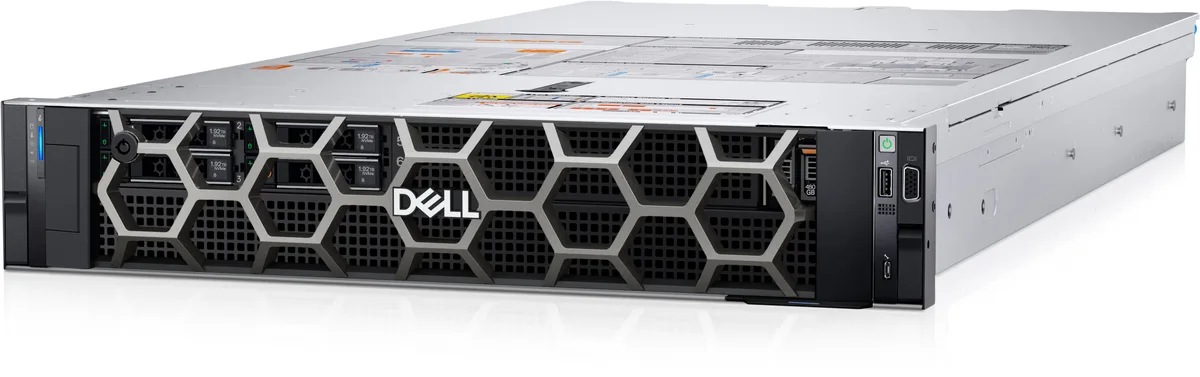

DELL PowerEdge XE9640 2U rack server 4 GPU 61.44 TB NVMe
A 2U liquid-cooled rack server for AI, ML and HPC workloads supporting four 600 W Intel Max 1550 or 700 W NVIDIA H100 GPUs, up to two Xeon Scalable CPUs.
- WorkloadMeet the demands of AI, ML, DL and HPC with the high perform
- TypeRack
- Rack Height2U
- SecurityCryptographically signed firmware Data at Rest Encryption (S
- CPU TypeIntel Xeon Scalable
- # of Processors Installed0
- Handles AI, ML, DL and HPC workloads with liquid-cooled performance
- Supports two 4th Generation Intel Xeon Scalable processors for compute scale
- Configurable with 4 Intel Max 1550 OAM 600W or 4 NVIDIA H100 SXM 700W NVLINK GPUs
- Up to 4 x 2.5-inch NVMe SSD drives delivering 61.44 TB storage capacity
- DDR5 memory up to 2 TB with 32 DIMM slots for large datasets
2U liquid-cooled AI server
The Dell PowerEdge XE9640 is a 2U rack server built for AI, ML, DL and HPC workloads. It supports up to two Intel Xeon Scalable processors on the Intel C741 chipset and ships without CPUs or memory installed. The chassis uses liquid cooling to handle high-density accelerator configurations.
Sustained accelerator performance

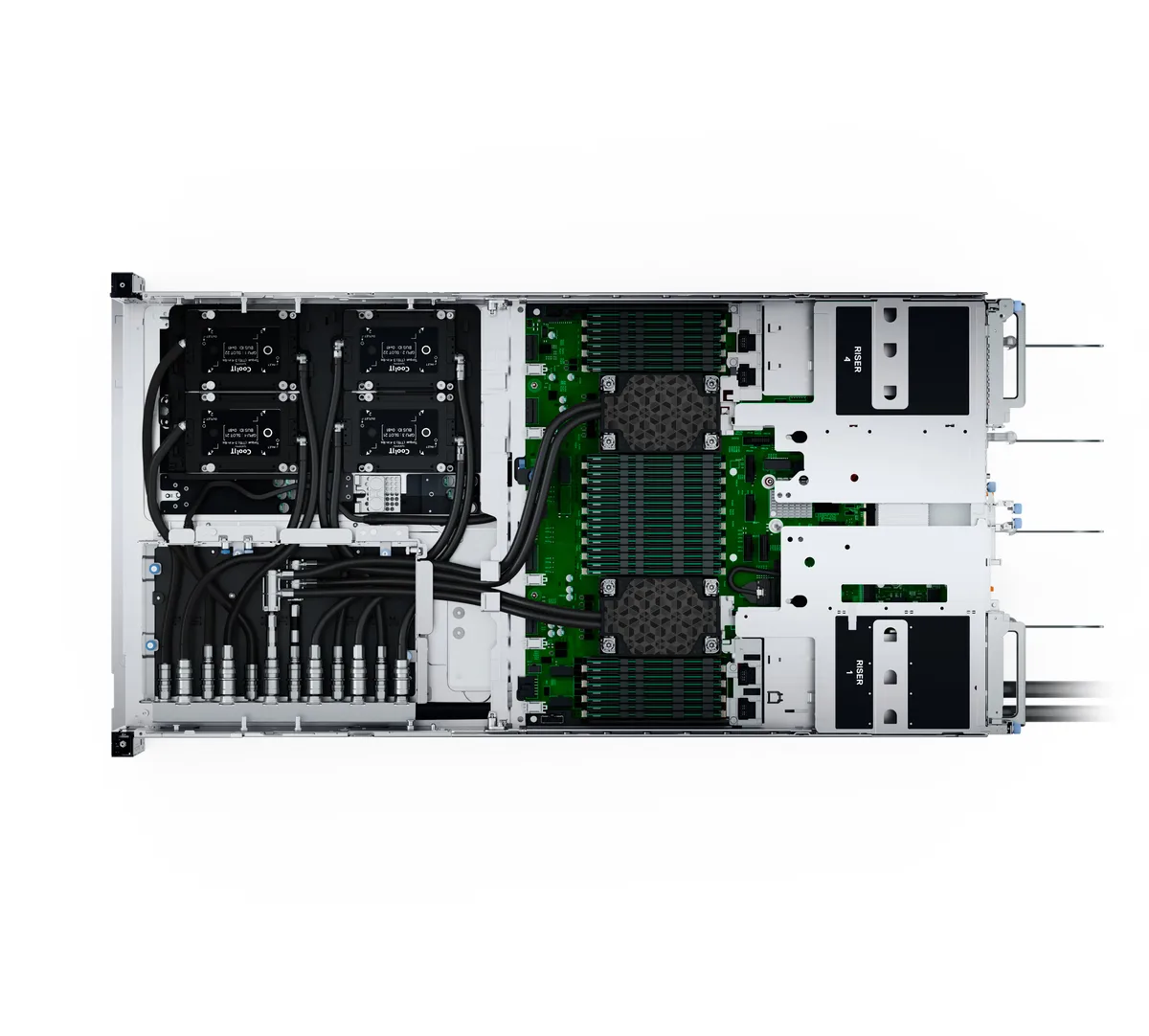

The system accommodates four Intel Data Center Max 1550 OAM modules at 600 W each with Xe Link, or four NVIDIA H100 SXM modules at 700 W each with NVLINK. Liquid cooling is designed to maintain thermal stability for these accelerators during continuous training or inference runs. Front bays accept up to four 2.5-inch NVMe SSDs for a maximum of 61.44 TB of high-speed local storage.
Pre-deployment checklist
Verify that your rack provides 2U of space and compatible liquid-cooling infrastructure for the chosen GPU option. Confirm DDR5 memory module quantities: 16 or 32 DIMMs for NVIDIA configurations up to 2 TB, but only 16 DIMMs supported for Intel GPU configurations up to 1 TB. Ensure power distribution can deliver the required wattage for dual CPUs plus four 600 W or 700 W accelerators.
Highlights
- Handles AI, ML, DL and HPC workloads with liquid-cooled performance
- Supports two 4th Generation Intel Xeon Scalable processors for compute scale
- Configurable with 4 Intel Max 1550 OAM 600W or 4 NVIDIA H100 SXM 700W NVLINK GPUs
- Up to 4 x 2.5-inch NVMe SSD drives delivering 61.44 TB storage capacity
- DDR5 memory up to 2 TB with 32 DIMM slots for large datasets
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge XE9640 |
| Workload | Meet the demands of AI, ML, DL and HPC with the high performance liquid-cooled server |
| Type | Rack |
| Rack Height | 2U |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China |
| CPU Type | Intel Xeon Scalable |
| # of Processors Installed | 0 |
| MAX Processors | 2 |
| Chipset | Intel C741 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 2TB |
| Hard Drive (Installed) | None |
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| GPU Type | 4 Intel Data Center Max 1550 OAM 600W with Xe Link or 4 NVIDIA H100 SXM 700W NVLINK GPUs |
| Expansion Bays | Front: STORAGE - Up to 4 x 2.5-inch NVMe SSD drives max 61.44 TB |
| Other ports | Front ports - 1 x iDRAC Direct (Micro-AB USB) port - 1 x USB 2.0 - 1 x VGA Rear ports - 1 x USB 2.0 - 1 x USB 3.0 - 1 x RJ45 iDRAC9 ethernet port |
| Operating System | No |
| Dimensions | 3.41" x 18.97" x 36.47" |
| Weight | 102.07 lbs. |
| Shipping weight | 27.22 kg |
| Package size | 1016 × 635 × 127 mm |
Questions about this item
How much heat does the liquid-cooled server produce when running AI workloads all day?
The server uses liquid cooling to handle four GPUs rated at 600 W or 700 W each, keeping component temperatures stable under continuous load.
Which CPUs and memory must I supply to make the system operational?
You must install up to two Intel Xeon Scalable processors on the C741 chipset and populate DDR5 DIMMs up to 2 TB total capacity.
Can I keep my existing SATA or SAS drives and use them in the front bays?
The front bays accept up to four 2.5-inch NVMe SSDs only; SATA and SAS drives are not supported in those slots.
