Compact 1U rack server in matte black finish, front panel shows USB ports, display port, management port

DELL

DELL PowerEdge XR4510c 1U rack server DDR4 512GB max

SKU CH-B8GG-A4WHG MPN PowerEdge_XR4510c

1U rack server for edge workloads with up to 20 cores, 512 GB DDR4 and four M.2 NVMe drives

  • WorkloadVDI, vSAN/ VM, Machine vision, Point-of-sale, Video surveill
  • TypeRack
  • Rack Height1U
  • SecurityCryptographically signed firmware Secure Boot Secure Erase S
  • CPU TypeIntel Xeon Scalable
  • # of Processors Installed0
  • Handles VDI and video surveillance workloads with Intel Xeon Scalable processor
  • Secures firmware and boot process with Silicon Root of Trust and TPM 2.0
  • Scales memory to 512 GB using DDR4 LRDIMMs at 2933 MT/s
  • Fits 1U rack space measuring 1.62 by 6.58 by 13.48 inches
  • Connects peripherals via front USB 3.0, iDRAC Direct and Mini-DisplayPort

Target workloads

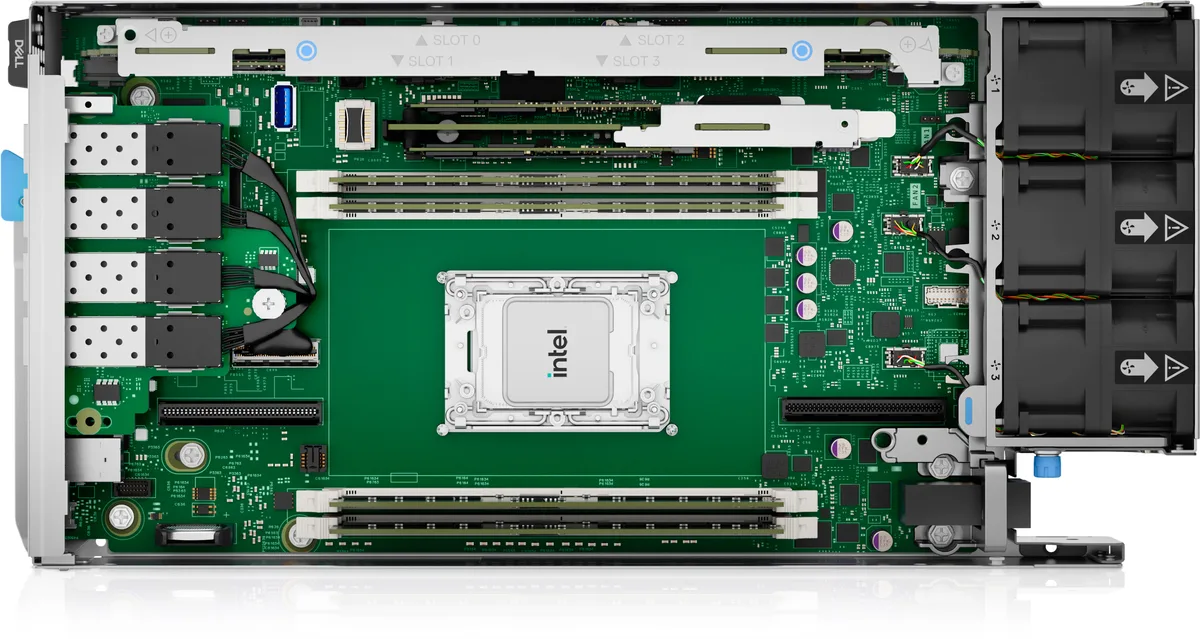

The Dell PowerEdge XR4510c is a 1U rack server built for VDI, vSAN, machine vision, point-of-sale, video surveillance and data compression. It accepts one Intel Xeon Scalable processor with up to 20 cores and supports registered ECC DDR4 memory up to 512 GB across four slots. Storage is handled by four M.2 NVMe SSDs on a riser module plus SATA or SAS interfaces.

Upgrade path

This chassis replaces older 1U platforms that cannot reach 512 GB of DDR4 or lack integrated NVMe riser support. The jump is worthwhile when workloads demand higher core counts, larger memory capacity or local NVMe speed for edge deployments. Buyers staying with standard SATA SSDs or memory below 256 GB may not need the extra headroom this model provides.

Pre-order checks

Verify that your rack supplies front-access airflow for a 1.62" high unit measuring 6.58" wide by 13.48" deep. Confirm the power infrastructure can support the chosen Xeon configuration since no processor ships installed. Ensure you source registered ECC DDR4 RDIMMs or LRDIMMs rated for 2933 MT/s, and plan for an operating system licence as none is included.

Highlights

  • Handles VDI and video surveillance workloads with Intel Xeon Scalable processor
  • Secures firmware and boot process with Silicon Root of Trust and TPM 2.0
  • Scales memory to 512 GB using DDR4 LRDIMMs at 2933 MT/s
  • Fits 1U rack space measuring 1.62 by 6.58 by 13.48 inches
  • Connects peripherals via front USB 3.0, iDRAC Direct and Mini-DisplayPort

Specifications

BrandDELL
SeriesPowerEdge XR4510c
WorkloadVDI, vSAN/ VM, Machine vision, Point-of-sale, Video surveillance, Data compression
TypeRack
Rack Height1U
SecurityCryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
CPU TypeIntel Xeon Scalable
# of Processors Installed0
MAX Processors1
Installed Memory SizeNo
Memory TypeDDR4
Max Memory Capacity512GB
Memory FeaturesSupports RDIMM 256 GB max and LRDIMM 512 GB max, with speeds up to 2933 MT/s
Supports registered ECC DDR4 DIMMs only
Number of Memory Slots4
Hard Drive (Installed)None
HDD InterfaceSATA/SAS
SSD (Installed)No
Other portsFront ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 2 x USB 3.0
- 1 x Serial port
- 1 x Mini-DisplayPort
- 1 x RJ45 iDRAC9 ethernet port
Operating SystemNo
Dimensions1.62" x 6.58" x 13.48"
Weight5.42 lbs.
Shipping weight3.63 kg
Package size381 × 254 × 127 mm

Questions about this item

What rack dimensions does the 1.62-inch high, 6.58-inch wide chassis require?

The server occupies 1U of rack space with dimensions of 1.62" x 6.58" x 13.48" and weighs 5.42 lbs, so it mounts in any standard 1U slot with sufficient depth.

Which processor and memory configuration steps are required before powering on the system?

Install one Intel Xeon Scalable processor (up to 20 cores) into the single socket, then populate the four DDR4 slots with registered ECC RDIMMs up to 256 GB or LRDIMMs up to 512 GB at 2933 MT/s.

When should the M.2 NVMe SSDs on the riser module be replaced or upgraded?

The four M.2 NVMe slots on the riser module accept standard M.2 drives; replace or add SSDs when capacity or endurance limits are reached for VDI, vSAN, or video-surveillance workloads.
