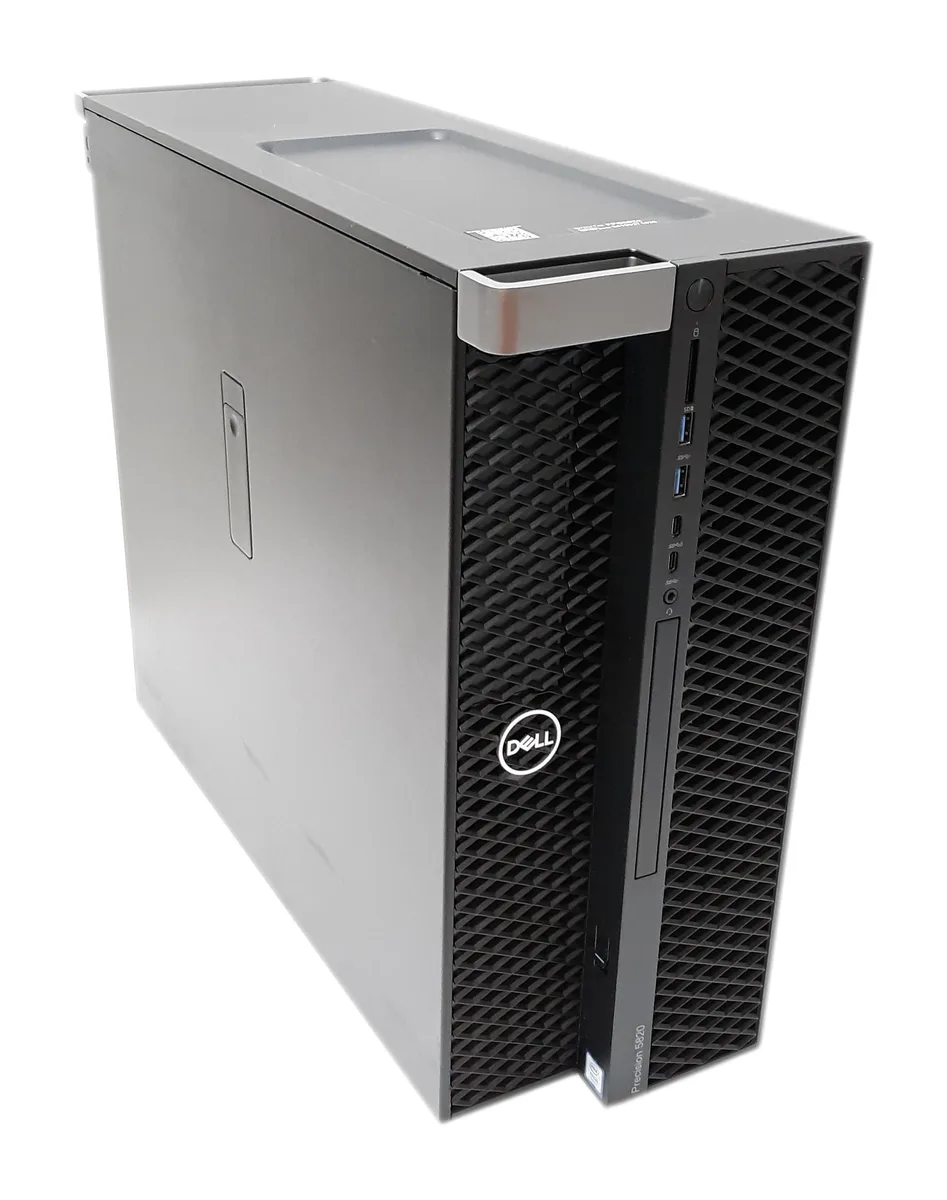

Black Dell Precision 5820 tower workstation standing upright, matte finish, front panel ports visible

DELL

Dell Precision 5820 Tower Xeon W-2125 16GB RAM 256GB NVMe 1TB HDD M2000

SKU CH-H3V9-NQE9C

Tower workstation with a 4.0 GHz Xeon W-2125, 16 GB DDR4 ECC memory, 256 GB NVMe plus 1 TB hard drive, Nvidia Quadro M2000 graphics and a 950 W power supply

  • TypeDesktop
  • Installed Memory Size16GB
  • Operating SystemPro 64
  • Xeon W-2125 at 4.0 GHz with 4 cores and 8 threads
  • 256 GB NVMe plus 1 TB HDD for fast boot and large storage
  • 16 GB DDR4 ECC memory on 4-channel motherboard
  • Nvidia Quadro M2000 4 GB with four DisplayPort outputs
  • 950 W PSU and multiple PCIe Gen 3 slots for expansion

Dell Precision 5820 Tower Xeon W-2125 Workstation

This Dell Precision 5820 Tower is a new workstation built around an Intel Xeon W-2125 processor with four cores and eight threads. It ships with 16GB of DDR4 memory, a 256GB NVMe drive and a 1TB hard disk. The Nvidia Quadro M2000 graphics card provides four DisplayPort outputs for professional visualisation tasks.

Upgrading from older Xeon or Core i7 systems

The Xeon W-2125 runs at 4.0GHz with 8.25MB cache, offering a measurable step up from earlier quad-core workstations for single-threaded CAD and simulation workloads. The 950W power supply and dual NVMe interfaces support faster storage and higher GPU power than previous Precision towers. The jump is worth it when your current machine bottlenecks on CPU frequency or lacks NVMe boot speed.

PCIe Gen 3 slot layout limits expansion

The motherboard provides two full PCIe x16 slots, one wired as x8, one as x4 and one as x1, plus a legacy PCI slot. This Gen 3 topology restricts total bandwidth for multiple high-throughput cards such as additional GPUs or 10GbE adapters. Builders needing more than two full-speed x16 devices or newer PCIe Gen 4 storage will hit a ceiling.

Highlights

  • Xeon W-2125 at 4.0 GHz with 4 cores and 8 threads
  • 256 GB NVMe plus 1 TB HDD for fast boot and large storage
  • 16 GB DDR4 ECC memory on 4-channel motherboard
  • Nvidia Quadro M2000 4 GB with four DisplayPort outputs
  • 950 W PSU and multiple PCIe Gen 3 slots for expansion

Specifications

TypeDesktop
Installed Memory Size16GB
Operating SystemPro 64

Questions about this item

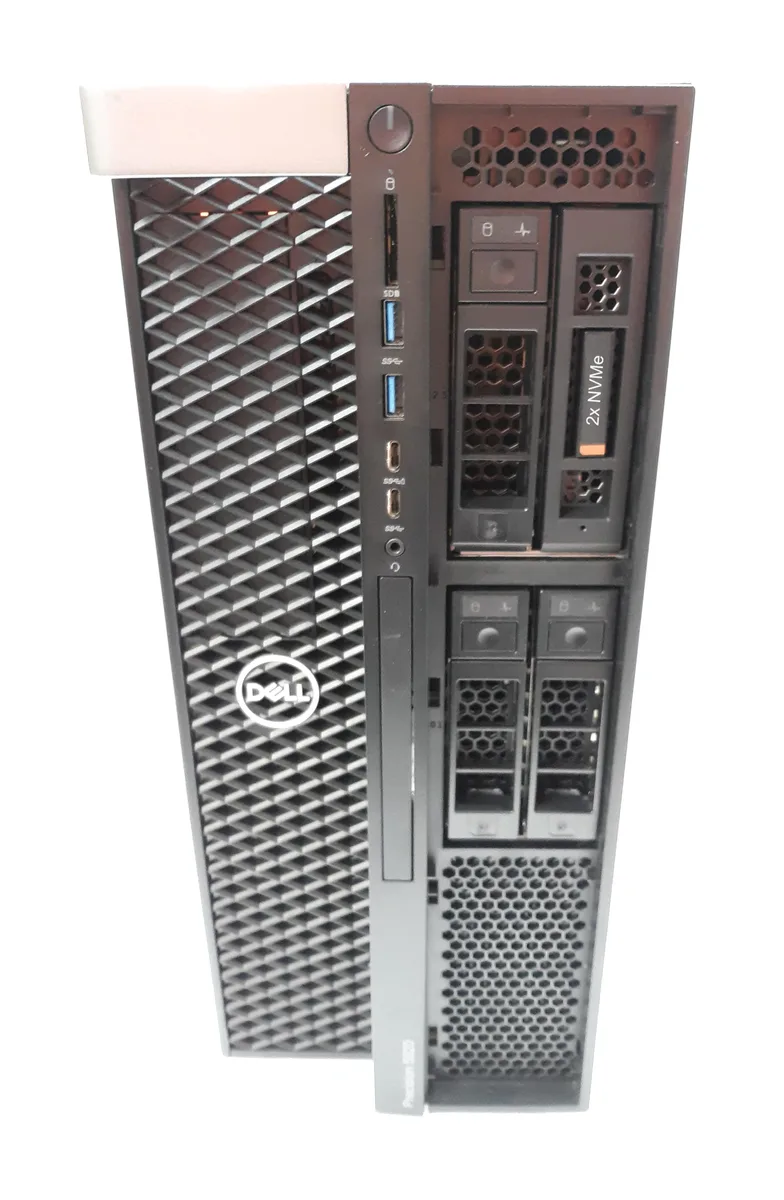

What are the internal drive bays and NVMe slots available in the Dell Precision 5820 Tower?

The tower includes three HDD caddies for 3.5-inch drives and two NVMe interfaces on the motherboard for M.2 solid-state storage.

How is the Nvidia Quadro M2000 installed and which power connector does it require?

The M2000 seats in a full-length PCIe 3.0 x16 slot and draws auxiliary power through a single 6-pin connector from the 950 W supply.

When will the 950 W power supply or the M2000 graphics card likely need replacement?

The 950 W PSU typically runs five to seven years before capacitor aging warrants a swap; the M2000 4 GB card stays useful until driver support ends or workload demands more VRAM.
