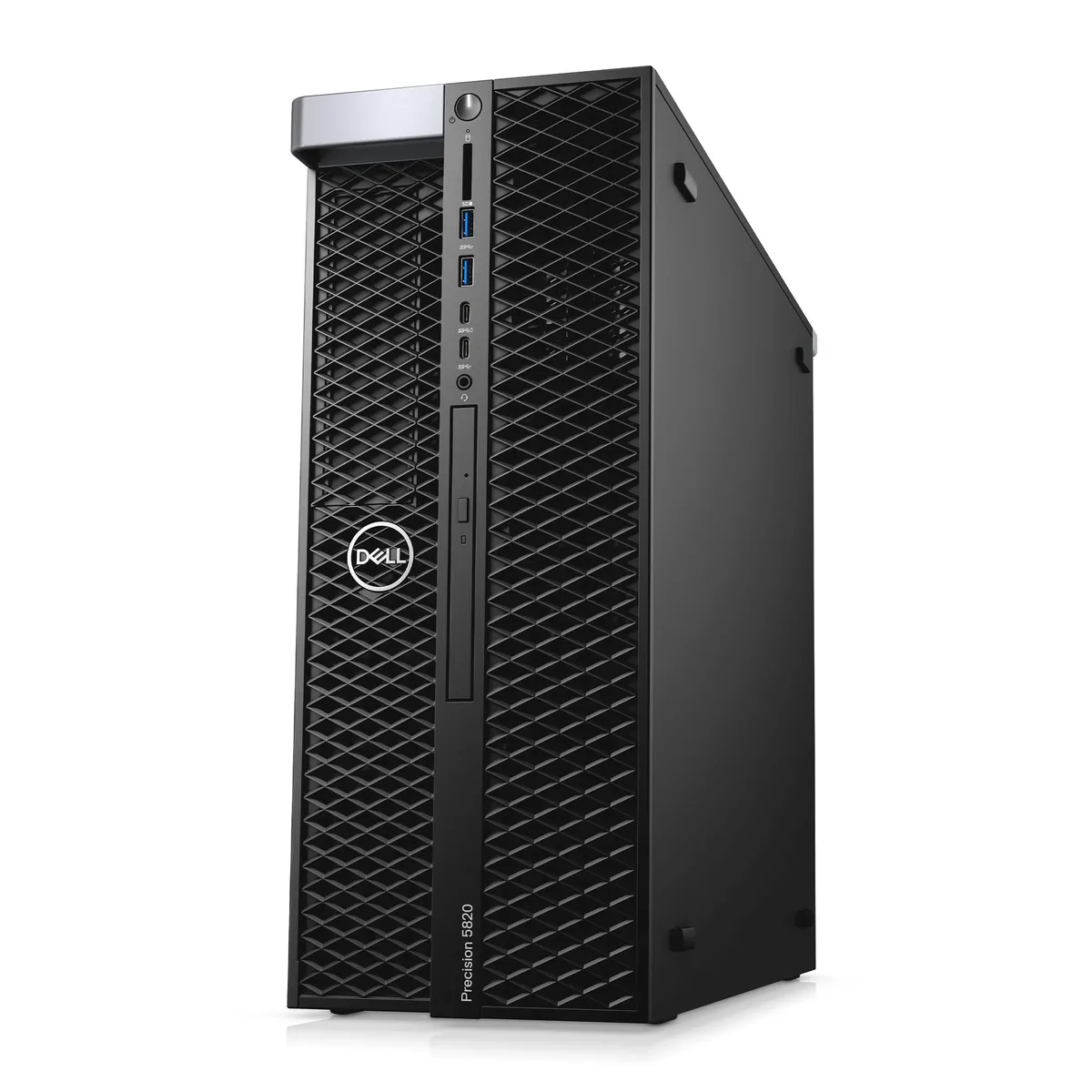

Tall black tower workstation with front panel vents and Dell badge

DELL

DELL Precision T5820 Xeon W-2123 3.6GHz 16GB Quadro M4000 512GB NVMe 2TB HDD Win11 Pro Tower

SKU CH-XSFJ-PEYW7

A tower workstation for CAD and engineering with a 3.6 GHz Xeon processor, 16GB RAM, Quadro M4000 graphics, 512GB NVMe storage and 2TB HDD

  • TypeBusiness Desktops & Workstations
  • Form FactorTower
  • UsageWorkstation
  • Processor1x Intel Xeon W-2123 (3.60 GHz) 4C
  • Memory16GB
  • Storage1x 2TB HDD, 1x 512GB SSD M.2
  • Xeon W-2123 3.60 GHz 4-core CPU powers sustained engineering workloads
  • 16 GB RAM handles large project files and professional multitasking
  • 512 GB NVMe SSD plus 2 TB HDD gives fast boot and ample storage
  • Quadro M4000 graphics drives CAD, 3D modelling and visualisation tasks
  • 950 W supply supports add-in cards and future storage upgrades

Precision T5820 Workstation for CAD & Engineering

The Dell Precision T5820 is a tower workstation built for engineering, drafting, 3D modelling and technical design workloads. It runs on an Intel Xeon W-2123 processor at 3.60 GHz with four cores. Sixteen gigabytes of installed memory supports large project files and multitasking. The system includes an NVIDIA Quadro M4000 graphics card for professional visualisation tasks.

Suits ISV-Certified Workflows.

This workstation suits professionals who need ISV-certified reliability for CAD, engineering and design applications. The 950 W power supply and toolless chassis allow straightforward add-in card and storage upgrades. Buyers who need multi-GPU compute density or higher core counts for rendering farms should evaluate alternative platforms.

Verify LGA 2066 Platform Compatibility

Confirm that your existing peripherals and expansion cards are compatible with the LGA 2066 platform and the tower form factor. The 512 GB M.2 SSD and 2 TB hard drive occupy specific storage bays; check available slots if you plan further storage additions. Windows 11 Pro is pre-installed and ready for domain join or remote desktop use.

Highlights

  • Xeon W-2123 3.60 GHz 4-core CPU powers sustained engineering workloads
  • 16 GB RAM handles large project files and professional multitasking
  • 512 GB NVMe SSD plus 2 TB HDD gives fast boot and ample storage
  • Quadro M4000 graphics drives CAD, 3D modelling and visualisation tasks
  • 950 W supply supports add-in cards and future storage upgrades

Specifications

BrandDELL
SeriesPrecision
ModelT5820
TypeBusiness Desktops & Workstations
Form FactorTower
UsageWorkstation
Processor1x Intel Xeon W-2123 (3.60 GHz) 4C
Memory16GB
Storage1x 2TB HDD, 1x 512GB SSD M.2
GraphicsM4000
Power Supply950W
Operating SystemWindows 11 Pro
Windows 11Ready
CPU TypeIntel Xeon
CPU Name1x Intel Xeon W-2123 (3.60 GHz) 4C
CPU Base Frequency3.60GHz
CPU Socket TypeLGA 2066
Graphics CardM4000
Memory Capacity16GB
Memory Slot (Total)8
Maximum Memory Supported512GB
SSD512GB
HDD2TB
HDD RPM7200rpm
Front USB4
Front Audio Ports1
Video Ports4x DisplayPort
Rear USB6
RJ451 port
Rear Audio Ports2 ports

Questions about this item

Does the workstation require any external hardware such as a monitor, keyboard and mouse to operate?

Yes, the Dell Precision T5820 tower includes the system unit and power cable only; a display, keyboard and mouse must be supplied separately.

Will the 950W power supply support additional drives or expansion cards I may want to add later?

The 950W unit is designed to handle demanding components, add-in cards and storage upgrades, providing headroom for future configuration changes.

How can I verify the NVIDIA Quadro M4000 is recognised and performing correctly after setup?

Open Windows Device Manager to confirm the M4000 appears under Display adapters, then run the NVIDIA System Information tool or a viewport benchmark in your CAD application to validate professional driver operation.
