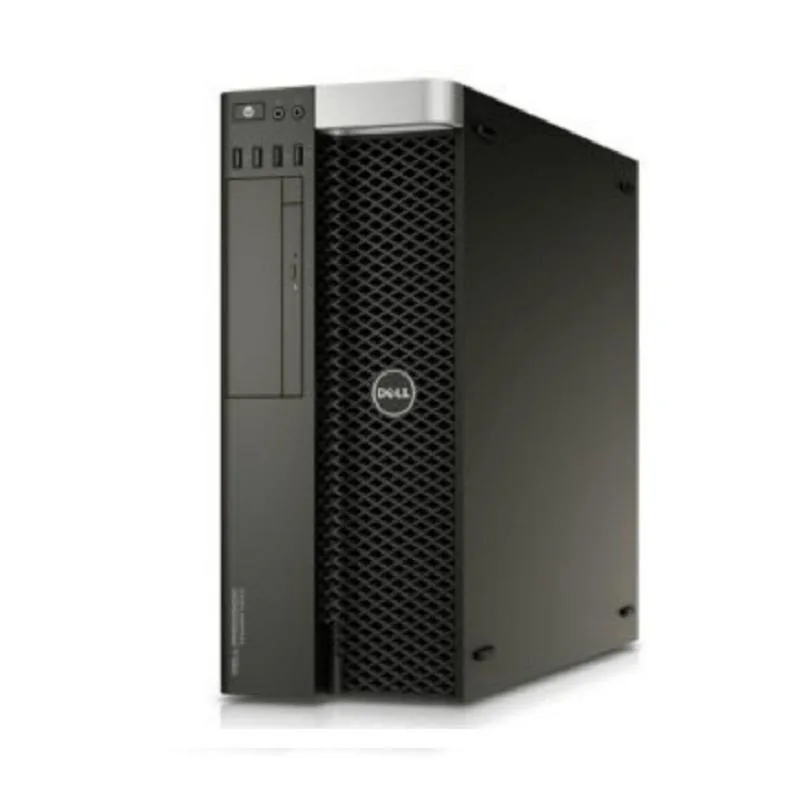

Black tower workstation with front-panel ports and side venting

DELL

DELL Precision T7810 desktop PC Xeon E5-2603 v3 64GB 2TB K4200

SKU CH-6VF5-MWK1B

Tower workstation with Xeon E5-2603 v3, 64 GB DDR4, 2 TB SATA drive and Quadro K4200 graphics running Windows 10 Pro

  • TypeBusiness Desktops & Workstations
  • Form FactorTower
  • ColorBlack
  • Power Supply685W
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • Six-core Xeon E5-2603 v3 at 1.6 GHz for multi-threaded workloads
  • 64 GB DDR4 ECC memory with room to expand to 256 GB
  • NVIDIA Quadro K4200 with 4 GB GDDR5 for professional graphics
  • 2 TB 7.2 K SATA drive plus six 6 Gb/s SATA ports
  • 685 W 90 % efficient PSU with active power factor correction

Precision T7810 Xeon workstation

The Dell Precision T7810 is a tower workstation built around a single Intel Xeon E5-2603 v3 six-core processor running at 1.6 GHz. It ships with 64 GB of DDR4 2133 ECC memory and a 2 TB 7.2K SATA hard drive. An Nvidia Quadro K4200 with 4 GB GDDR5 handles graphics output. Windows 10 Pro 64-bit comes pre-installed on the 685 W 90 % efficient power supply.

Suits ISV-certified workflows.

This system suits engineers and designers running certified ISV applications that rely on Quadro drivers and ECC memory stability. The four-channel memory architecture with eight DIMM slots supports expansion up to 256 GB. Buyers who want an all-flash boot configuration or the throughput of a second processor should look elsewhere because the chassis provides only 3.5" SATA bays and a single LGA 2011-3 socket.

Quadro K4200 4 GB GDDR5 decides GPU fit

The installed Nvidia Quadro K4200 4 GB GDDR5 card determines whether this workstation matches a given visual-computing workload. It delivers certified OpenGL performance for legacy CAD, DCC and scientific visualisation packages. If the target application demands more frame-buffer memory or newer compute APIs, the graphics subsystem will be the limiting factor.

Highlights

  • Six-core Xeon E5-2603 v3 at 1.6 GHz for multi-threaded workloads
  • 64 GB DDR4 ECC memory with room to expand to 256 GB
  • NVIDIA Quadro K4200 with 4 GB GDDR5 for professional graphics
  • 2 TB 7.2 K SATA drive plus six 6 Gb/s SATA ports
  • 685 W 90 % efficient PSU with active power factor correction

Specifications

BrandDELL
SeriesPrecision
ModelPrecision T7810
TypeBusiness Desktops & Workstations
Form FactorTower
ColorBlack
Power Supply685W
MonitorMonitor not included
Operating SystemWindows 10 Pro
ChipsetIntel C612
CPU TypeIntel Xeon
CPU FSB2133 MHz
CPU NameIntel Xeon E5-2603 v3
CPU Socket TypeLGA 2011-3
GPU/VGA TypeNVIDIA Quadro K4200
Graphics CardNvidia Quadro K4200 4GB GDDR5 Graphic Card
Memory Capacity64GB DDR4
Memory SpeedDDR4 2133
SSDNo
HDD2TB
HDD InterfaceSATA
HDD RPM7200
Optical Drive TypeDVD±RW
Optical Drive FeaturesDVD±RW
Screen SizeNo Screen
LAN ChipsetIntegrated
LAN Speed10/100/1000Mbps
Front USB4
Front IEEE 13940
Front Audio Ports1
Rear USB6
Rear Audio Ports1 port
Internal BaysTwo internal 3.5" hard drive bay, one external 5.25" bay, and one external slimline optical bay.
Storage ControllerIntel AHCI 6Gb/s SATA controller with six ports at 6Gb/s, two reserved for optical drives, Intel RSTe supports software RAID 0,1,5,10
Dimensions (H x W x D)12.00 in. x 24.00 in. x 24.00 in.
Weight45.0000LBS

Questions about this item

How do I install the Nvidia Quadro K4200 4GB GDDR5 graphics card in the Precision T7810 tower?

Insert the card into one of the two full-length PCIe x16 Gen 3 slots and connect the auxiliary power cable from the 685W supply; the step often missed is seating the retention bracket screw to prevent the heavy card from sagging.

What maintenance will the 2TB 7.2K SATA drive need later?

Run SMART checks periodically and keep at least 15 percent free space; the mechanical drive will eventually require replacement after several years of continuous operation.

What limit appears first during sustained heavy workloads on the Xeon E5-2603 v3 and K4200?

The 685W power supply becomes the limiting factor when both the six-core 1.6GHz processor and the 4GB GDDR5 GPU run at full load for extended periods.
