Black tower workstation chassis with front panel ports and optical drive bay

DELL

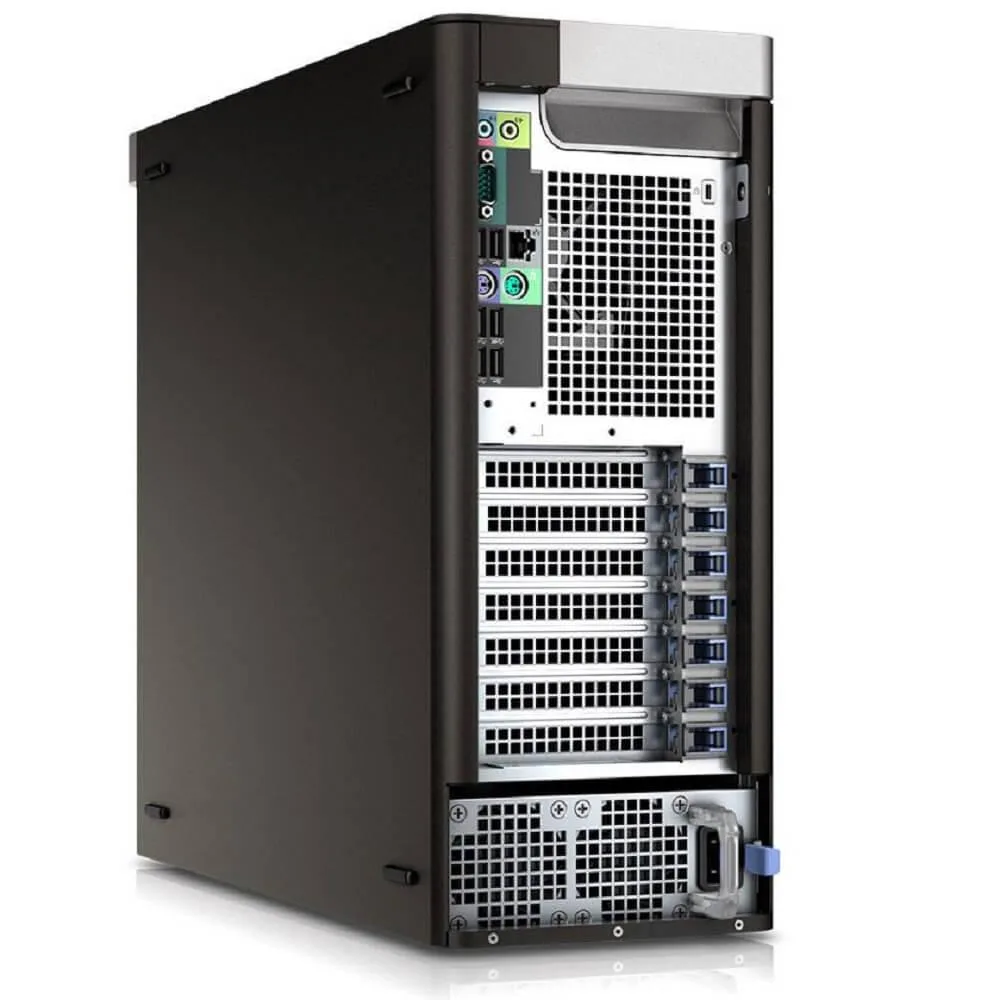

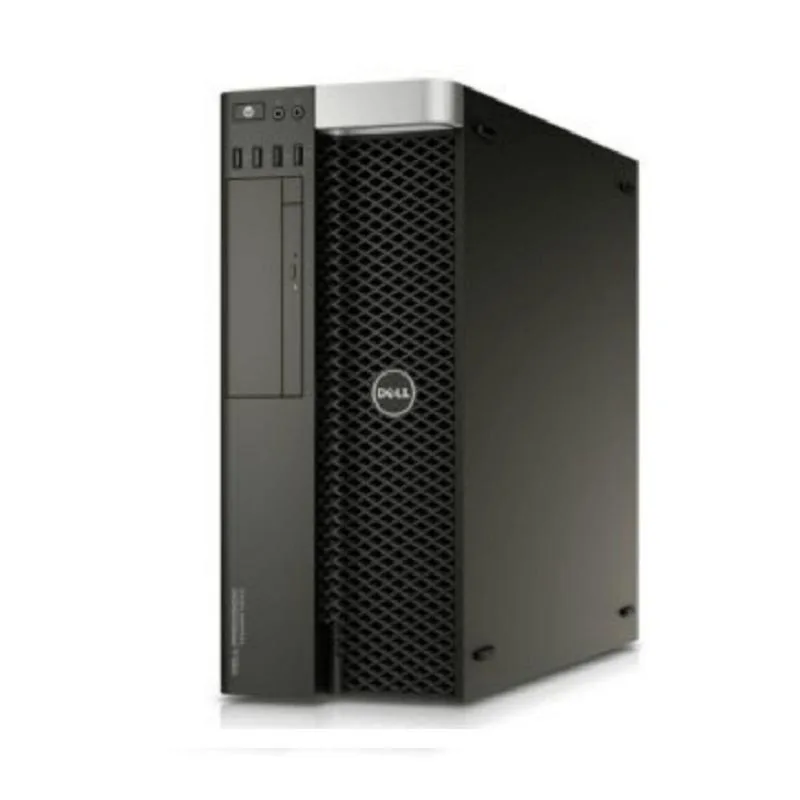

DELL Precision T7810 Tower Workstation Dual Xeon E5-2630 v3 2.4GHz 16GB DDR4 500GB Quadro K4200 Windows 10 Pro

SKU CH-WBD8-P301D

Dual Xeon E5-2630 v3 workstation with 16GB DDR4, 500GB SATA drive and Quadro K4200 4GB GDDR5 graphics

  • TypeBusiness Desktops & Workstations
  • Form FactorTower
  • ColorBlack
  • Power Supply685W
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro

CPU Name Intel Xeon E5-2630 v3

GPU/VGA Type Quadro K4200

Memory Capacity 16GB DDR4

SSD None

  • 1TB
  • 250GB
  • 500GB
  • None

HDD 500GB

Struck-through versions exist but are not stocked here.

  • Dual Xeon E5-2630 v3 CPUs deliver 32 virtual cores for parallel workloads
  • NVIDIA Quadro K4200 with 4GB GDDR5 drives professional 3D and compute tasks
  • 16GB DDR4 2133MHz ECC memory supports error-corrected stability up to 256GB
  • 500GB 7.2K RPM SATA drive provides reliable storage for projects
  • 685W 90% efficient power supply ensures stable delivery to all components

Dual Xeon E5-2630 v3 Workstation

The Dell Precision T7810 tower houses two eight-core Intel Xeon E5-2630 v3 processors running at 2.4 GHz with Hyperthreading, providing 32 virtual cores for multi-threaded professional workloads. It ships with 16 GB of DDR4 ECC RDIMM memory at 2133 MHz and a 500 GB 7.2K RPM SATA drive. The Nvidia Quadro K4200 graphics card adds 4 GB of GDDR5 memory for certified ISV applications. Windows 10 Pro 64-bit comes pre-installed.

685W Power Supply Thermals

A 685W power supply rated at 90% efficiency with active Power Factor Correction delivers stable power to the dual-CPU platform and Quadro K4200. The tower chassis uses internal airflow paths to move heat away from both processors, the memory zones and the graphics card during typical workstation tasks. Integrated Intel I217 Gigabit Ethernet and the DVD-RW drive draw minimal additional power. The system runs Windows 10 Pro without extra thermal load from discrete storage controllers.

Sustained Multi-Core Load Behaviour

Under continuous heavy compute the dual Xeon configuration maintains its 2.4 GHz base frequency across all 16 physical cores, leveraging the C612 chipset and quad-channel memory architecture to feed data without throttling. The Quadro K4200 sustains GPU compute and viewport performance for extended rendering or simulation sessions. Six SATA ports on the Intel AHCI controller with RSTe RAID 0,1,5,10 support keep storage bandwidth consistent. Two internal 3.5" bays and one external 5.25" bay allow capacity expansion for long-running projects.

Highlights

  • Dual Xeon E5-2630 v3 CPUs deliver 32 virtual cores for parallel workloads
  • NVIDIA Quadro K4200 with 4GB GDDR5 drives professional 3D and compute tasks
  • 16GB DDR4 2133MHz ECC memory supports error-corrected stability up to 256GB
  • 500GB 7.2K RPM SATA drive provides reliable storage for projects
  • 685W 90% efficient power supply ensures stable delivery to all components

Specifications

BrandDELL
SeriesPrecision
ModelPrecision T7810
TypeBusiness Desktops & Workstations
Form FactorTower
ColorBlack
Power Supply685W
MonitorMonitor not included
Operating SystemWindows 10 Pro
ChipsetIntel C612
CPU TypeIntel Xeon
CPU FSB2133 MHz
CPU NameIntel Xeon E5-2630 v3
CPU Socket TypeLGA 2011-3
CPU Main FeaturesHyperthreading
GPU/VGA TypeNVIDIA Quadro K4200
Graphics CardNvidia Quadro K4200 4GB GDDR5 Graphic Card
Memory Capacity16GB DDR4
Memory SpeedDDR4 2133
SSDNo
HDD500GB
HDD InterfaceSATA
HDD RPM7200
Optical Drive TypeDVD±RW
Optical Drive FeaturesDVD±RW
Screen SizeNo Screen
LAN ChipsetIntegrated
LAN Speed10/100/1000Mbps
Front USB4
Front IEEE 13940
Front Audio Ports1
Rear USB6
Rear Audio Ports1 port
Internal BaysTwo internal 3.5" hard drive bay, one external 5.25" bay, and one external slimline optical bay.
Storage ControllerIntel AHCI 6Gb/s SATA controller with six ports at 6Gb/s, two reserved for optical drives, Intel RSTe supports software RAID 0,1,5,10
Dimensions (H x W x D)12.00 in. x 24.00 in. x 24.00 in.
Weight45.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 16GB DDR4 memory modules in the eight DIMM slots, and which step is most often done incorrectly?

Populate the four slots per processor in matched pairs for quad-channel operation; the common mistake is leaving a slot empty between modules, which breaks the channel.

What maintenance or replacement will the 500GB 7.2K SATA drive and the DVDRW optical drive need over time?

The 500GB SATA drive may require replacement if SMART errors appear; the DVDRW drive can need a new laser assembly when disc reads become unreliable.

What thermal limit appears first when both Xeon E5-2630 v3 CPUs run sustained loads on the 685W 90% efficient power supply?

The CPU package temperature threshold triggers throttling before the 685W supply reaches its continuous output limit.
