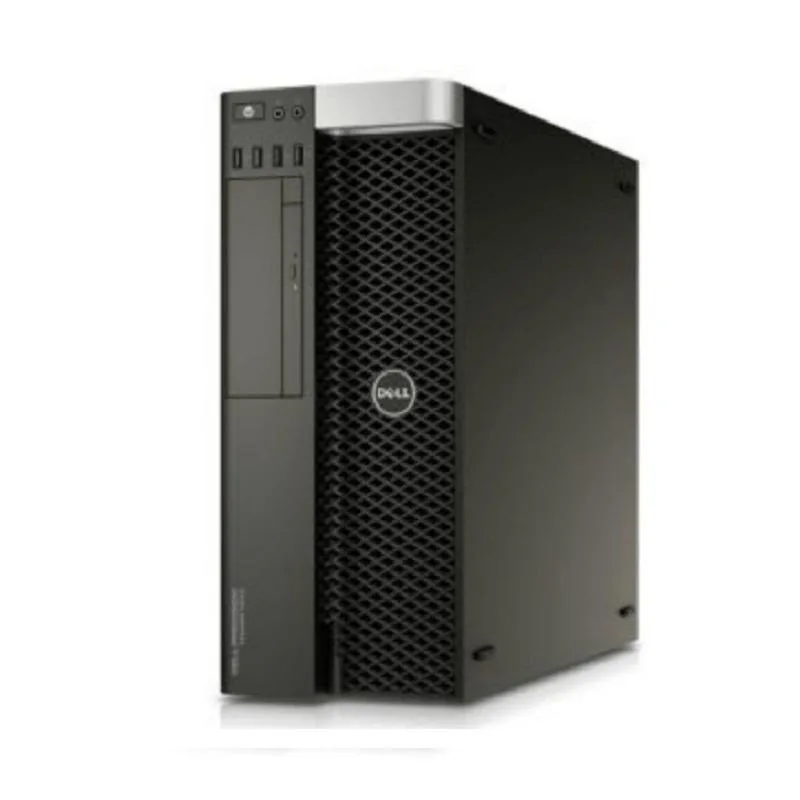

Black tower desktop workstation with front panel drive bays and Dell branding

DELL

DELL Precision T7810 Xeon E5-2650 v3 10C 2.3GHz 32GB DDR4 1TB SATA NVS 310 desktop PC

SKU CH-YVVW-D2H5T

A single-socket Xeon workstation tower with 10 cores, 20 virtual threads, 32 GB DDR4 memory, 1 TB SATA storage and an Nvidia NVS 310 graphics card, pre-installed with Windows 10 Pro

  • TypeBusiness Desktops & Workstations
  • Form FactorTower
  • ColorBlack
  • Power Supply685W
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro

CPU Name Intel Xeon E5-2650 v3

GPU/VGA Type NVIDIA NVS 310

Memory Capacity 32GB DDR4

SSD None

  • None
  • 1TB
  • 250GB
  • 500GB

HDD 1TB

Struck-through versions exist but are not stocked here.

  • 10-core Xeon E5-2650 v3 with 20 threads via Hyperthreading
  • 32GB DDR4 2133 MHz ECC memory, expandable to 256GB
  • 1TB 7.2K RPM SATA drive plus six 6Gb/s SATA ports
  • NVIDIA NVS 310 512MB graphics for multi-display work
  • 685W 90% efficient PSU with active Power Factor Correction

Precision T7810 Xeon workstation

The Dell Precision T7810 is a tower workstation built around a single Intel Xeon E5-2650 v3 processor with ten cores running at 2.3 GHz. Hyperthreading presents 20 logical threads to the operating system. It ships with 32 GB of DDR4 2133 ECC memory and a 1 TB 7.2K SATA drive. Windows 10 Pro 64-bit is pre-installed and a 685 W 90 % efficient power supply drives the system.

Upgrade path from older Xeon towers

The ten-core E5-2650 v3 replaces earlier four- to eight-core Xeon E5 v1 or v2 CPUs and doubles the thread count to 20. The jump is worth it when workloads scale across many threads such as rendering, simulation or heavy multitasking. Memory capacity can grow from the installed 32 GB to 256 GB across eight DIMM slots in quad-channel mode. The Intel C612 chipset provides six SATA 6 Gb/s ports with software RAID 0, 1, 5 and 10 for faster or redundant storage arrays.

Build integration and expansion

The tower chassis measures 16.95 by 8.5 by 20.67 inches and weighs 50 lbs. It offers two internal 3.5 inch drive bays, one external 5.25 inch bay and one slimline optical bay; a DVD-RW drive is fitted. Graphics are handled by an Nvidia NVS 310 card with 512 MB memory suited for multi-monitor office use. Five full-length and one half-length expansion slots remain open for additional GPUs, capture cards or specialised I/O. Integrated Intel I217 gigabit Ethernet provides wired networking.

Highlights

  • 10-core Xeon E5-2650 v3 with 20 threads via Hyperthreading
  • 32GB DDR4 2133 MHz ECC memory, expandable to 256GB
  • 1TB 7.2K RPM SATA drive plus six 6Gb/s SATA ports
  • NVIDIA NVS 310 512MB graphics for multi-display work
  • 685W 90% efficient PSU with active Power Factor Correction

Specifications

BrandDELL
SeriesPrecision
ModelPrecision T7810
TypeBusiness Desktops & Workstations
Form FactorTower
ColorBlack
Power Supply685W
MonitorMonitor not included
Operating SystemWindows 10 Pro
ChipsetIntel C612
CPU TypeIntel Xeon
CPU FSB2133 MHz
CPU NameIntel Xeon E5-2650 v3
CPU Socket TypeLGA 2011-3
CPU Main FeaturesHyperthreading
GPU/VGA TypeNVIDIA NVS 310
Graphics CardNvidia NVS 310 512MB Graphic Card
Memory Capacity32GB DDR4
Memory SpeedDDR4 2133
SSDNo
HDD1TB
HDD InterfaceSATA
HDD RPM7200
Optical Drive TypeDVD±RW
Optical Drive FeaturesDVD±RW
Screen SizeNo Screen
LAN ChipsetIntegrated
LAN Speed10/100/1000Mbps
Front USB4
Front IEEE 13940
Front Audio Ports1
Rear USB6
Rear Audio Ports1 port
Internal BaysTwo internal 3.5" hard drive bay, one external 5.25" bay, and one external slimline optical bay.
Storage ControllerIntel AHCI 6Gb/s SATA controller with six ports at 6Gb/s, two reserved for optical drives, Intel RSTe supports software RAID 0,1,5,10
Dimensions (H x W x D)12.00 in. x 24.00 in. x 24.00 in.
Weight45.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 16.95 x 8.5 x 20.67 inch tower fit on my desk?

The tower measures 16.95 inches long, 8.5 inches wide and 20.67 inches high and weighs 50 lbs, so allow that footprint plus cable clearance.

How do I add more DDR4 memory to the 8 DIMM slots?

Open the side panel, populate the four slots per processor in quad-channel order, and use only DDR4 2133 ECC RDIMM modules up to 256 GB total.

When should I replace the 685 W power supply?

Plan replacement if the unit shows random shutdowns, voltage warnings or fan noise after several years of continuous 90 % efficient operation.
