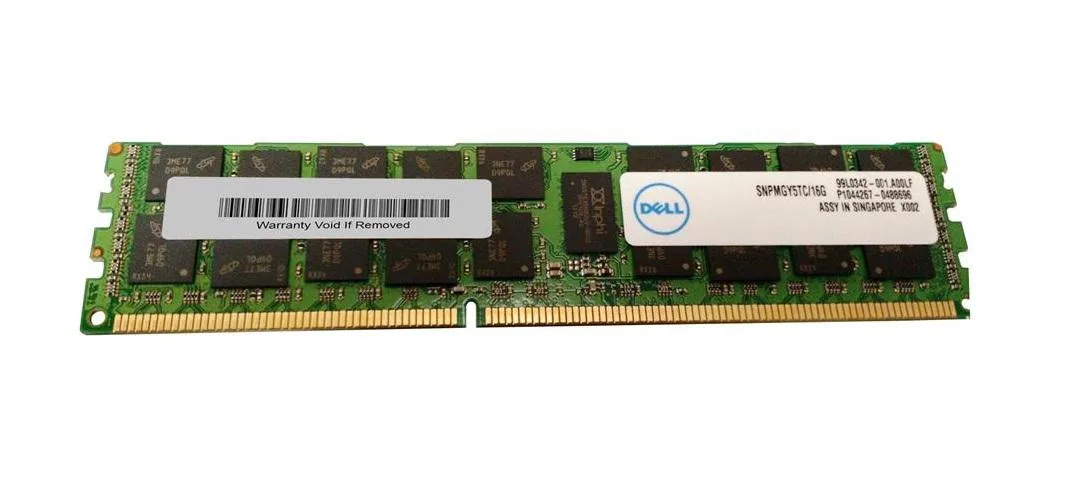

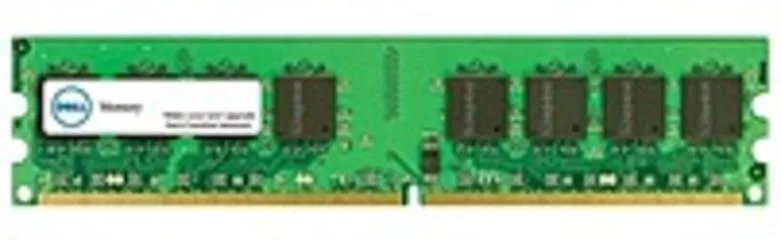

Green 240-pin DDR3 DIMM with black chips and gold contacts

DELL

DELL SNPMGY5TC/16G-ENC 16GB DDR3L 1333 ECC REG 1.35V 240-Pin server RAM

SKU CH-3S8V-0NJZD MPN SNPMGY5TC/16G-ENC

16 GB registered ECC DDR3L DIMM at 1333 MHz and 1.35 V for compatible Dell PowerEdge and Precision servers

  • Capacity16GB
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3L 1333 (PC3L 10600)
  • Voltage1.35V
  • ECCYes
  • Buffered/RegisteredRegistered
  • 16 GB capacity expands server memory headroom
  • DDR3L 1333 MHz speed delivers reliable data throughput
  • 35 V low voltage reduces power draw per module
  • ECC registered design protects data integrity in critical workloads
  • Compatible with Dell PowerEdge and Precision R5500 systems

Dell 16 GB DDR3L Registered ECC Module

This 16 GB DDR3L module operates at 1333 MHz with a low 1.35 V supply. It uses a 240-pin DIMM form factor and includes Error Correcting Code plus registered signal processing. The component is designed for Dell Precision workstations and a wide range of PowerEdge servers.

DDR3L 1333 Standard Constraints

The DDR3L 1333 standard caps memory speed at 1333 MHz and voltage at 1.35 V. Registered buffering adds a clock cycle of latency but allows larger memory populations per channel. Systems that require higher frequencies or unbuffered modules cannot use this memory.

Installation Notes

Align the notch on the 240-pin edge connector with the slot key and press firmly until the retention clips engage. The registered design means the memory controller must support buffered modules; otherwise the system will not post. Mixing registered and unbuffered DIMMs is not supported.

Highlights

  • 16 GB capacity expands server memory headroom
  • DDR3L 1333 MHz speed delivers reliable data throughput
  • 35 V low voltage reduces power draw per module
  • ECC registered design protects data integrity in critical workloads
  • Compatible with Dell PowerEdge and Precision R5500 systems

Specifications

BrandDell
Capacity16GB
Type240-Pin DDR3 SDRAM
SpeedDDR3L 1333 (PC3L 10600)
Voltage1.35V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
Shipping weight0.04 kg
Package size152 × 102 × 51 mm

Questions about this item

Which version of the Dell SNPMGY5TC/16G-ENC should I choose for my server?

This module is a single 16 GB DDR3L 1333 MHz registered ECC DIMM. Select it when your system requires one 16 GB stick at 1.35 V with 2Rx4 organisation.

What does the 1333 MHz speed mean once the module is installed?

The memory will operate at up to 1333 MHz with CL9 latency on platforms that support DDR3-1333/PC3-10600. Actual throughput depends on the server memory controller and channel configuration.

What does the DDR3L 1.35 V interface cap in practice?

The module conforms to the DDR3L standard at 1.35 V and fits 240-pin DIMM slots. It is limited to DDR3-1333 speeds and registered ECC operation; it will not run at higher DDR3 frequencies or in non-ECC consumer boards.
