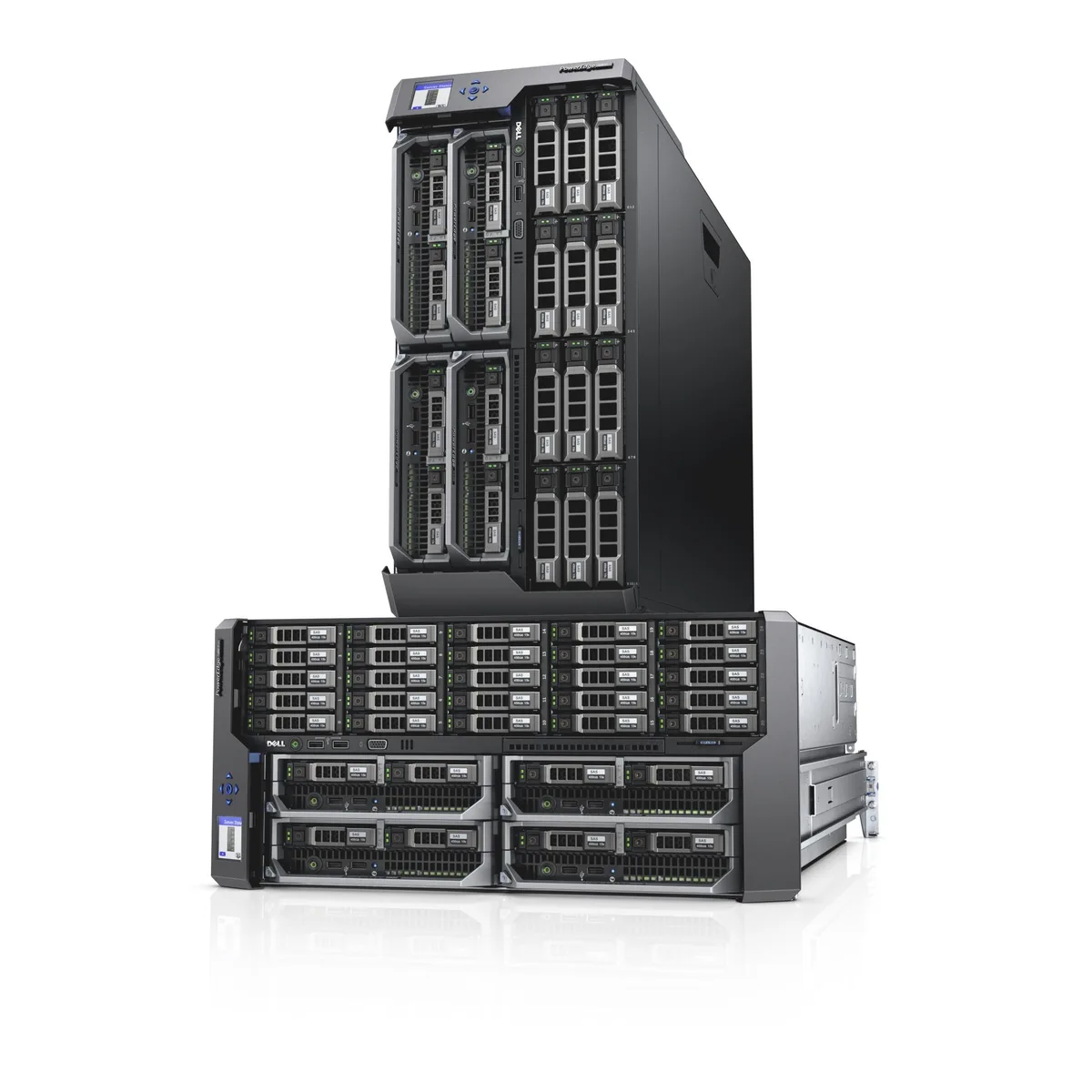

Silver five-U rack chassis with twelve front drive bays

DELL

DELL VRTX Rack Server 2x M630 2x E5-2690v3 2.6GHz 128GB 12x 12TB SAS

SKU CH-RVKY-HRMCX

A 5U converged chassis holds twelve 12 TB SAS drives, two M630 blades with dual E5-2690v3 processors and 128 GB DDR4, plus redundant 1600 W power

  • TypeRack
  • Rack Height5U
  • CPU TypeIntel
  • Hard Drive (Installed)12x 12TB 7.2K SAS
  • Storage ControllerS130
  • Max HDD Capacity12x 3.5" Drive Bays
  • Dual 12-core 2.6 GHz CPUs power demanding workloads
  • 128 GB DDR4 memory supports large virtualisation clusters
  • 12 x 12 TB 7.2 K SAS drives deliver massive capacity
  • 8 flexible PCIe slots enable GPU or networking expansion
  • 4 x 1600 W redundant PSUs keep the chassis running

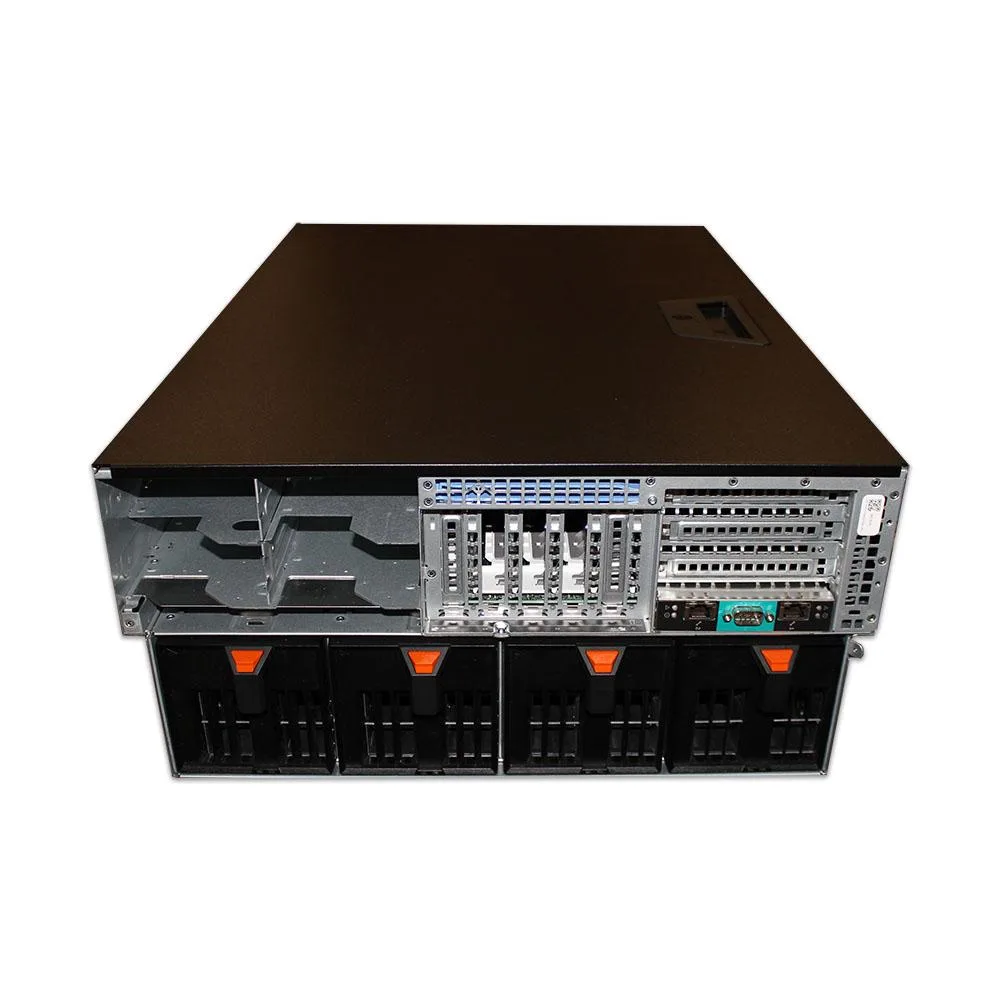

Dell VRTX 5U Rack System with Twelve Drive Bays

This Dell PowerEdge VRTX chassis fits a standard 5U rack space and holds twelve 3.5-inch drive bays. Two M630 blade servers are installed, each equipped with two Intel E5-2690v3 processors running at 2.6GHz with twelve cores. The system includes 128GB of DDR4 memory across eight 16GB modules and a single Chassis Management Controller for unified administration.

Suited for Dense Virtualisation

The twelve 12TB 7.2K SAS drives provide a large raw capacity pool managed by a single PERC8 RAID controller with S130 firmware. Four redundant 1600W power supplies and a 1GB internal switch module support high-availability requirements. Organisations needing GPU acceleration, 10GbE uplink flexibility beyond the installed dual-port X520, or a different blade count should evaluate alternative platforms.

Twelve 12TB 7.2K SAS Drives Define the Storage

The installed drive set delivers twelve bays of 7.2K SAS media behind one RAID controller, fixing both the maximum spindle count and the drive performance tier. Buyers who require faster spindle speeds, solid-state media, or a second RAID domain for isolation cannot change those constraints without replacing the backplane and controller.

Highlights

  • Dual 12-core 2.6 GHz CPUs power demanding workloads
  • 128 GB DDR4 memory supports large virtualisation clusters
  • 12 x 12 TB 7.2 K SAS drives deliver massive capacity
  • 8 flexible PCIe slots enable GPU or networking expansion
  • 4 x 1600 W redundant PSUs keep the chassis running

Specifications

BrandDELL
ModelVRTX
TypeRack
Rack Height5U
CPU TypeIntel
Hard Drive (Installed)12x 12TB 7.2K SAS
Storage ControllerS130
Max HDD Capacity12x 3.5" Drive Bays
Remote ManagementiDRAC8 Express

Questions about this item

How many 3.5-inch drive bays does the VRTX chassis provide for the 12TB SAS drives?

The chassis holds 12 bays, matching the 12 installed 7.2K SAS drives.

What is the power capacity of the redundant PSU array?

Four 1600W supplies deliver full redundancy for sustained operation.

Which management module is included for remote access?

iDRAC8 Express is built into the system for out-of-band control.
