DELL
DELL XE7100 5U rack server 2x XE7420 Silver 4210 256GB 50x 16TB SATA
A 5U rack server with dual compute nodes, 256 GB DDR4 memory and 50 SATA hard drives, managed by dual H745 controllers and iDRAC9 Enterprise remote management
- TypeRack
- Rack Height5U
- CPU TypeIntel
- Hard Drive (Installed)50x 16TB 7.2K SATA
- Storage ControllerH730P
- Max HDD Capacity100x 3.5" Drive Bays
- Dual XE7420 nodes deliver 20 cores total at 2.2 GHz for parallel workloads
- 256 GB DDR4 memory across 16 modules supports large virtualisation clusters
- 50 x 16 TB 7.2 K SATA drives provide high-density cold storage
- Dual H745 PERC controllers with H730P RAID enable flexible array configuration
- iDRAC9 Enterprise and 25 GbE networking simplify remote management and data throughput

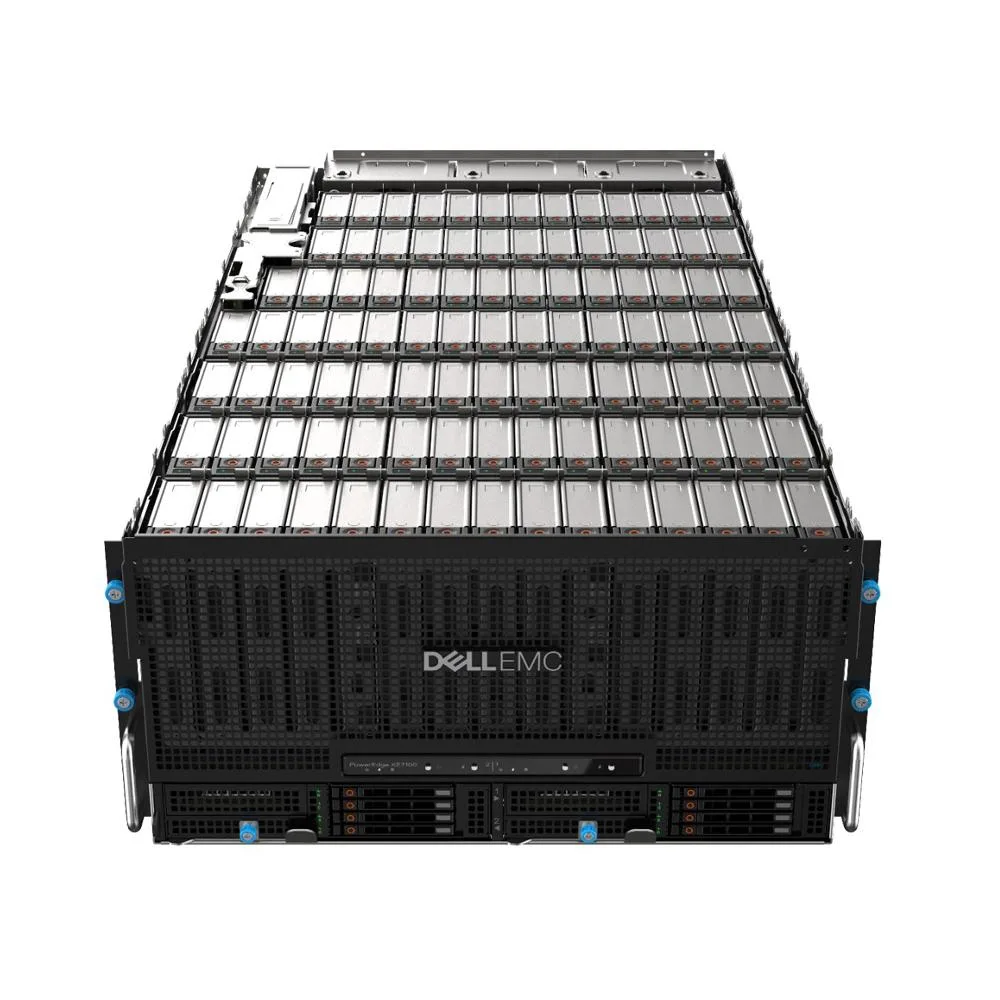

Dell XE7100 5U rack server with 50 drives
The Dell XE7100 is a 5U rack server built around two XE7420 compute nodes. Each node carries an Intel Silver 4210 processor running at 2.2 GHz with 10 cores and 14 MB cache. The system ships with 256 GB of DDR4 memory in 16 modules rated at 3200 MT/s. Fifty 16 TB 7.2K SATA drives provide the primary storage pool, managed by an H730P RAID controller and dual H745 PERC cards. Remote administration is handled through iDRAC9 Enterprise.
Suited for dense archival workloads.
This configuration suits organisations that need high raw capacity in a single 5U footprint for backup, archive or cold-data tiers. The 7.2K SATA drives and H730P controller are optimised for sequential throughput rather than random IOPS. Buyers who need sub-millisecond latency or all-flash performance should look at a different platform. The dual 2400 W redundant power supplies and included rails support standard rack deployment.
50 x 16 TB 7.2K SATA drives define the capacity
The fifty installed 16 TB 7.2K SATA drives set the usable capacity and performance envelope for this server. The chassis supports up to 100 x 3.5-inch bays, so the array can be expanded later. Dual H745 PERC controllers and the H730P RAID card manage the drive set, while each node also includes four 960 GB SATA SSDs for local caching or boot duties. Network connectivity comes from a Broadcom 57414 dual-port 25 GbE mezzanine and a Mellanox ConnectX-4 LX dual-port 10/25 GbE adapter.
Highlights
- Dual XE7420 nodes deliver 20 cores total at 2.2 GHz for parallel workloads
- 256 GB DDR4 memory across 16 modules supports large virtualisation clusters
- 50 x 16 TB 7.2 K SATA drives provide high-density cold storage
- Dual H745 PERC controllers with H730P RAID enable flexible array configuration
- iDRAC9 Enterprise and 25 GbE networking simplify remote management and data throughput
Specifications
| Brand | DELL |
|---|---|
| Model | XE7100 |
| Type | Rack |
| Rack Height | 5U |
| CPU Type | Intel |
| Hard Drive (Installed) | 50x 16TB 7.2K SATA |
| Storage Controller | H730P |
| Max HDD Capacity | 100x 3.5" Drive Bays |
| Remote Management | iDRAC9 Enterprise |
Questions about this item
Will the 50 installed 16 TB 7.2K SATA drives leave room for my existing 3.5-inch drives?
The chassis provides 100 3.5-inch bays total, so 50 bays remain free for additional drives you already own.
How can I verify the dual H745 RAID controllers are operating correctly after installation?
Check the iDRAC9 Enterprise interface; it reports controller status, battery health and virtual-disk state for both H745 cards.
Are rack rails and power cords included, or do I need to order them separately?
Rails and power cords are included in the box; no separate purchase is required for those items.
