DELTA ELECTRONICS

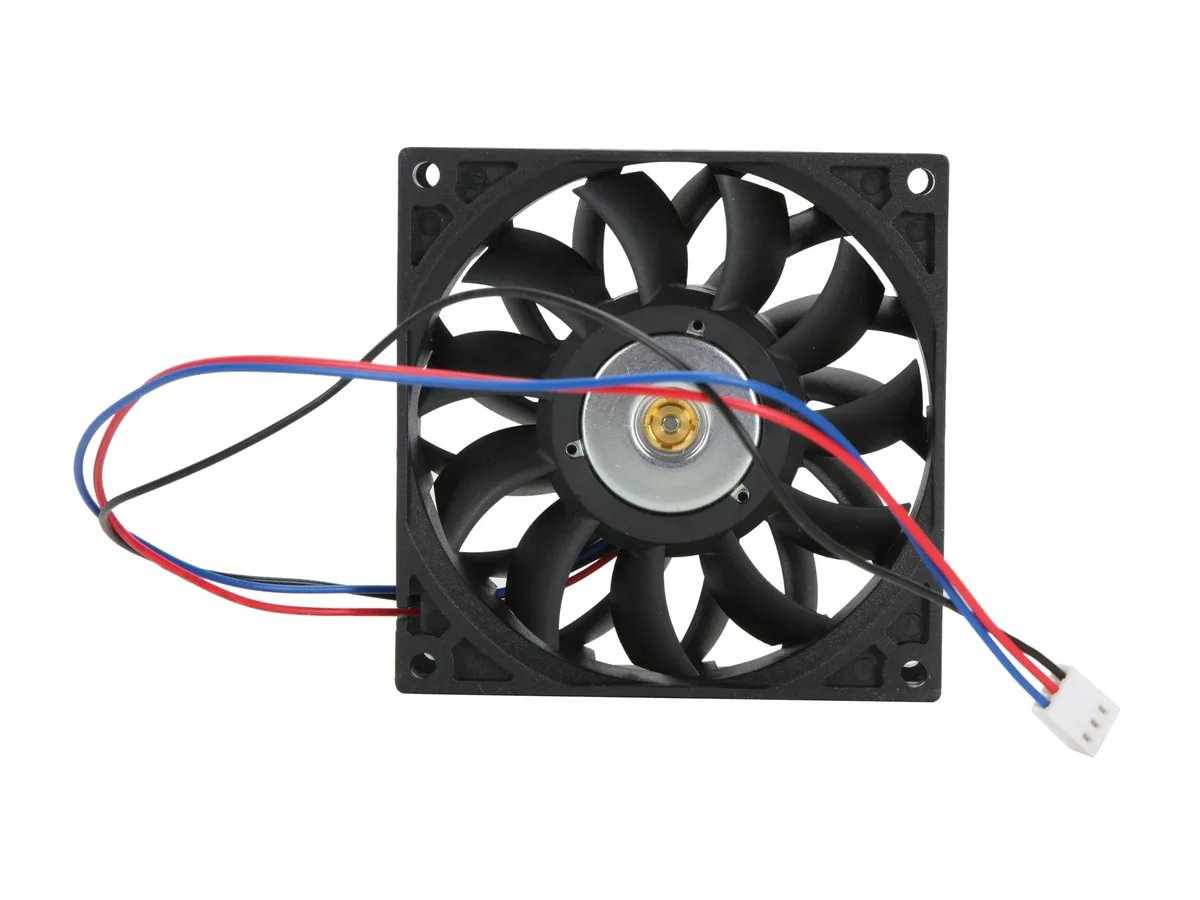

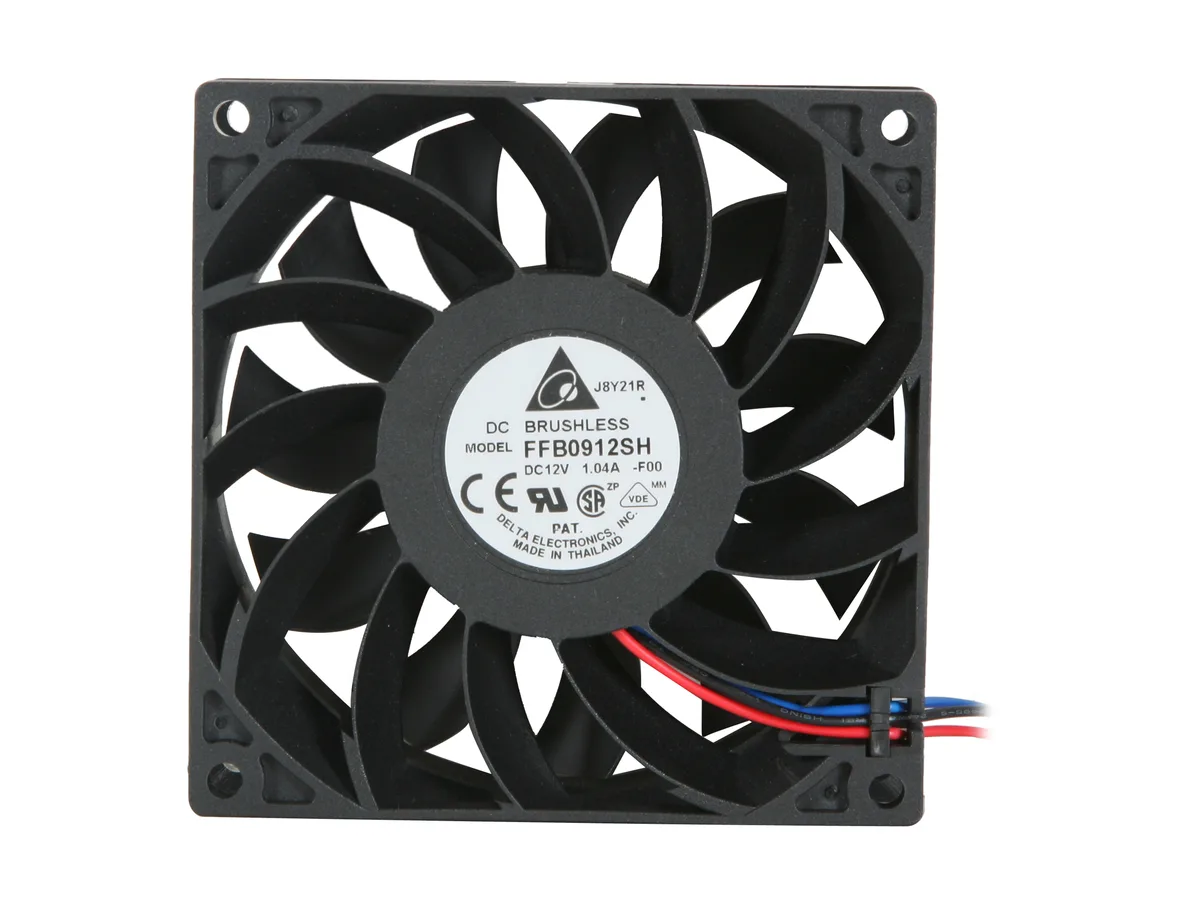

DELTA ELECTRONICS FFB0912SH-F00 92mm case fan 4100 RPM 90.02 CFM dual ball 50 dBA 3-pin
92mm case fan spins at 4100 RPM to move 90.02 CFM with dual ball bearings
- TypeCase Fan
- CompatibilityCase
- Fan Size92mm
- Bearing TypeDual Ball
- RPM4100 RPM
- Air Flow90.02 CFM
- High airflow of 90.02 CFM at 4100 RPM for strong cooling
- Dual ball bearing rated for 70000 hours at 40°C for long life
- 06 mm H₂O static pressure pushes air through dense obstacles
- 3-pin TAC connector reports speed to the motherboard
- Operates from 7 to 13.8 VDC for flexible voltage control
Compact 92 mm case fan for tight builds
The Delta FFB0912SH-F00 is a 92 mm case fan designed for systems where space is limited. It suits builders fitting cooling into small-form-factor chassis or rack-mount units. Buyers needing larger airflow volumes or quieter operation at lower speeds should consider other options.
Thermals, noise and power draw in normal use
At 4100 RPM the fan moves 90.02 CFM with a maximum static pressure of 10.06 mm H₂O. Noise reaches 50 dBA under full load. It draws 0.69 A at 12 V for 8.28 W typical power, with a maximum of 1.04 A and 12.48 W across the 7 to 13.8 V operating range.
What the dual ball bearing and TAC output change
Dual ball bearings provide a rated life expectancy of 70,000 hours at 40 °C, extending service intervals compared with sleeve designs. The 3-pin connector includes a TAC output so the motherboard can monitor actual fan speed in real time. No PWM control or RGB lighting is included.
Highlights
- High airflow of 90.02 CFM at 4100 RPM for strong cooling
- Dual ball bearing rated for 70000 hours at 40°C for long life
- 06 mm H₂O static pressure pushes air through dense obstacles
- 3-pin TAC connector reports speed to the motherboard
- Operates from 7 to 13.8 VDC for flexible voltage control
Specifications
| Brand | Delta |
|---|---|
| Model | FFB0912SH-F00 |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 92mm |
| Bearing Type | Dual Ball |
| RPM | 4100 RPM |
| Air Flow | 90.02 CFM |
| Noise Level | 50 dBA |
| Power Connector | 3-pin (TAC output) Rated Voltage : 12V Operating Voltage Range : 7 ~ 13.8V Input Current : 0.69 Amp Input Power : 8.28 Watt Maximum Air Pressure : 10.06 mm H²O |
| Color | Black |
| Features | Rated Voltage: 12 VDC Operating Voltage Range: 7 - 13.8 VDC Input Current: 0.69 Amp (Maximum 1.04A) Input Power: 8.28W (Maximum 12.48W) Maximum Air Pressure: 10.06 mmH2O or 0.396 inchH2O The Delta FFB0912SH-F00 is a medium high speed cooling fan at 92 x 92 x 25mm. It yields an air flow of 90.05 CFM at 4100 RPM, or 2.55 cubic meter per minute, at 50 dBA. Life expectance is 70,000 hours (or almost 16 years if you operate the fan 12 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high quality dual ball bearing. Operating temperat |

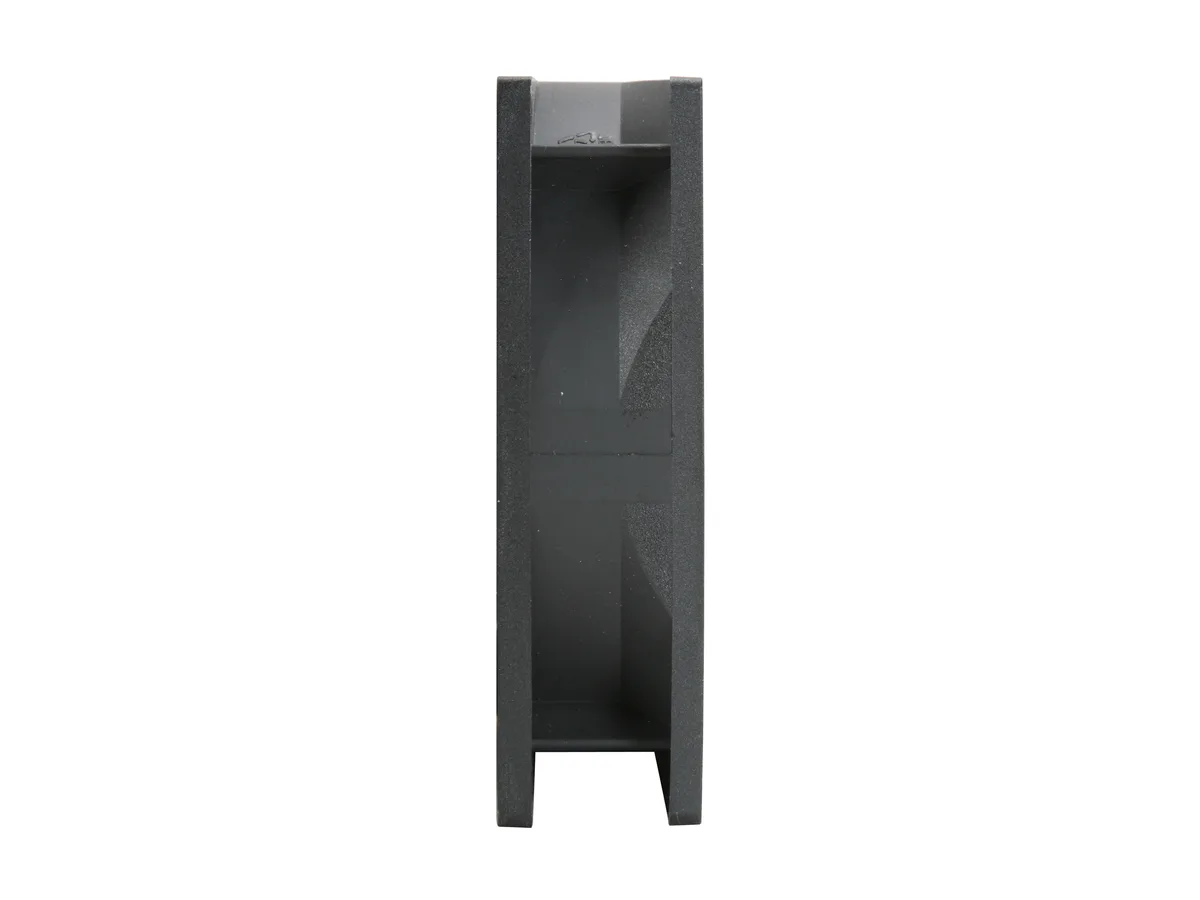

| Dimensions | 92.00 x 92.00 x 25.00mm |
| Shipping weight | 0.15 kg |
| Package size | 215 × 130 × 36 mm |
Questions about this item
How do I install the 92mm fan with its 3-pin TAC connector, and which orientation step is often missed?

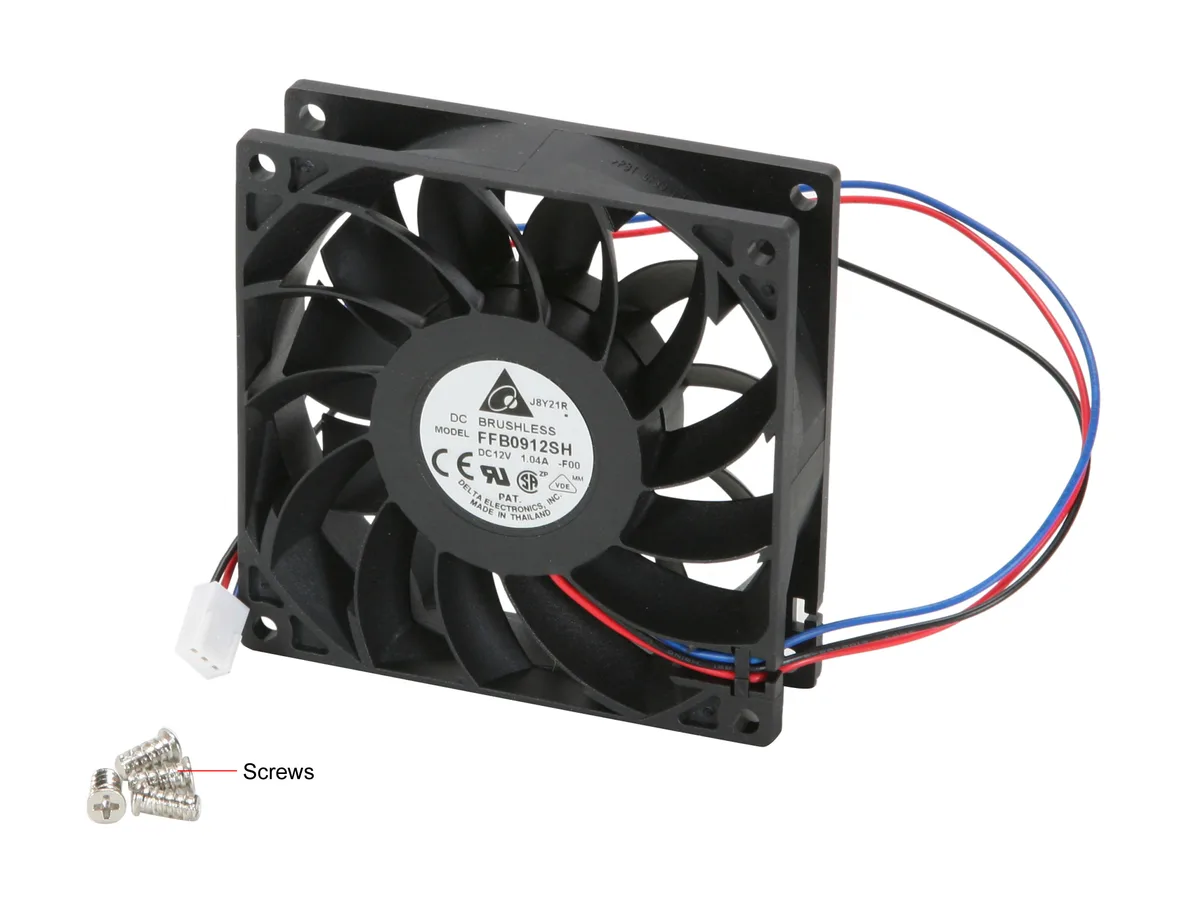

Mount the 92.00 x 92.00 x 25.00mm frame using four screws so the airflow arrow points into the case; plug the 3-pin TAC lead into a 12V motherboard header and verify the yellow wire reports RPM in BIOS.
What maintenance or replacement will the dual ball bearing need, and when?
The dual ball bearing is rated for 70000 hours at 40°C and 15-65% RH; expect replacement around that interval if run continuously, earlier if operated near the 60°C limit.
At 4100 RPM and 8.28W, what limit appears first during sustained load?
The 50 dBA noise floor is reached immediately at full speed; thermal throttling only occurs if ambient exceeds 60°C or input voltage drifts above 13.8V.
