Compact rectangular router with matte grey finish, two SMA antenna ports, GNSS port, dual Ethernet, serial DB-9

Digi International

Digi International IX30-00P7 wireless router FirstNet Cat 7

SKU CH-7MP3-57NZH MPN IX30-00P7

FirstNet-capable LTE-Advanced Cat 7 router with dual SIM slots, GNSS, serial and I/O interfaces for industrial connectivity

  • Mobile Network SupportFirstNet Capable LTE-Advanced Cat 7 LTE-Advanced Cat 7 - FDD
  • WAN Ports1 x 10/100M
  • LAN Ports1 x 10/100M
  • LEDsSignal Strength (5), LTE, Power
  • Interface(1) USB 2.0 Type A; 5 V 500 mA max
  • Dimensions5.04" x 3.94" x 2.05"
  • FirstNet Capable LTE-Advanced Cat 7 for priority public-safety connectivity
  • Dual Mini-SIM slots secured inside the cellular module for failover
  • Multi-constellation GNSS with GPS, GLONASS, BeiDou, Galileo, QZSS
  • Industrial operating range -34 °C to 74 °C with humidity 5 % to 95 %
  • RS-232/422/485 serial plus configurable digital and analog I/O on terminal block

FirstNet Cat 7 router

The Digi IX30-00P7 is a FirstNet Capable LTE-Advanced Cat 7 wireless router built for public-safety and industrial deployments. It operates on FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71 and TDD bands B41, B42, B43, B48 with WCDMA fallback on B2, B4, B5.

Dual SIM and GNSS headroom

Two Mini-SIM slots secured in the cellular module provide carrier redundancy while the GNSS receiver tracks GPS, GLONASS, BeiDou, Galileo and QZSS with hot-start acquisition in 1 s and horizontal accuracy below 2 m at 50 %. Cellular performance may reduce above 60 °C.

Industrial I/O and management fit

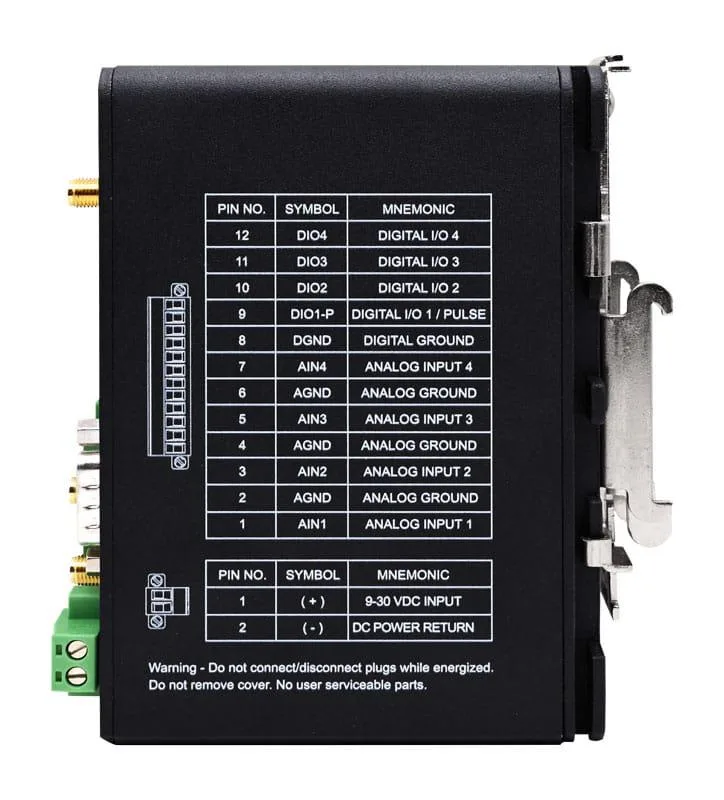

The unit fits into a build with two 10/100 Mbps RJ-45 ports, a DB-9 serial port supporting RS-232/422/485, a 12-pin screw terminal block for four digital and four analog I/O channels, and a USB 2.0 Type A port. Remote oversight uses Digi Remote Manager, SNMP v1/v2c/v3 and a web UI.

Highlights

  • FirstNet Capable LTE-Advanced Cat 7 for priority public-safety connectivity
  • Dual Mini-SIM slots secured inside the cellular module for failover
  • Multi-constellation GNSS with GPS, GLONASS, BeiDou, Galileo, QZSS
  • Industrial operating range -34 °C to 74 °C with humidity 5 % to 95 %
  • RS-232/422/485 serial plus configurable digital and analog I/O on terminal block

Specifications

BrandDigi International
ModelIX30-00P7
Mobile Network SupportFirstNet Capable LTE-Advanced Cat 7
LTE-Advanced Cat 7 - FDD: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B66, B71; TDD: B41, B42, B43, B48
WCDMA: B2, B4, B5
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Connectors: (3) 50 O SMA (2x cellular, 1x GNSS); center pin: female
SIM slots: (2) Mini-SIM (2FF)
SIM security: Secured in cellular module
GNSS: Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
WAN Ports1 x 10/100M
LAN Ports1 x 10/100M
LEDsSignal Strength (5), LTE, Power
Interface(1) USB 2.0 Type A; 5 V 500 mA max
Dimensions5.04" x 3.94" x 2.05"
Weight1.10 lbs.
TemperatureOperating temperature: -34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F)
Storage temperature: -40° C to 85° C (-40° F to 185° F)
Humidity5% to 95% (non-condensing)
Shipping weight0.50 kg
Package size128 × 100 × 52 mm

Questions about this item

Will the IX30-00P7 work with my existing 10/100 Mbps switch and Cat 5e cabling?

Yes, the two RJ-45 ports auto-sense at 10/100 Mbps, so they connect directly to older 10/100 switches and Cat 5e cables without configuration.

How can I confirm the router has locked onto the FirstNet band after installation?

Watch the five signal-strength LEDs and the dedicated LTE LED; solid illumination on both indicates a registered LTE-Advanced Cat 7 link including Band 14.

Does the box include the SMA antennas and a serial cable for the DB-9 port?

The unit ships with (3) 50 SMA connectors (2 cellular, 1 GNSS) and a 12-pin screw terminal block; antennas and a DB-9 serial cable are not included and must be purchased separately.
