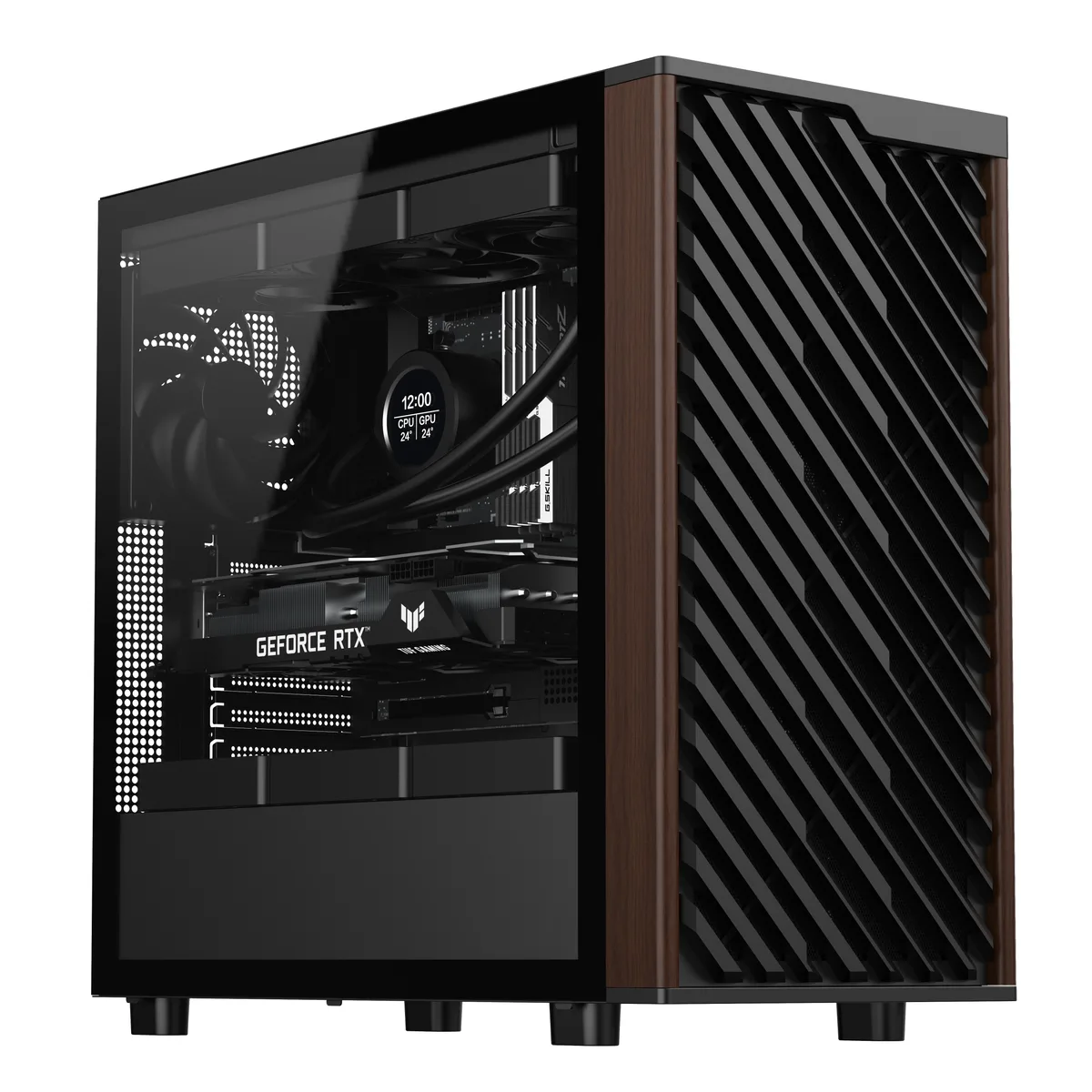

Black ATX mid-tower case with walnut wood front panel and tempered glass side

DIYPC

DIYPC DIY-ATX28-Wood ATX Mid Tower PC Case

SKU CH-HV2E-W3660 MPN DIY-ATX28-Wood

ATX mid-tower case with a walnut wood front panel, tempered glass side, four pre-installed 140 mm PWM fans, and top-mounted USB 3.0 and Type C ports

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel / Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / ITX / Micro ATX

Option ATX28-Wood Black

  • Walnut wood front panel adds natural elegance to modern setups
  • Four pre-installed PWM silent fans deliver strong airflow out of the box
  • Top mount supports up to 360 mm radiator for liquid cooling
  • Seven expansion slots and multiple drive bays fit high-end components
  • USB 3.0 and Type-C front ports enable fast data transfer

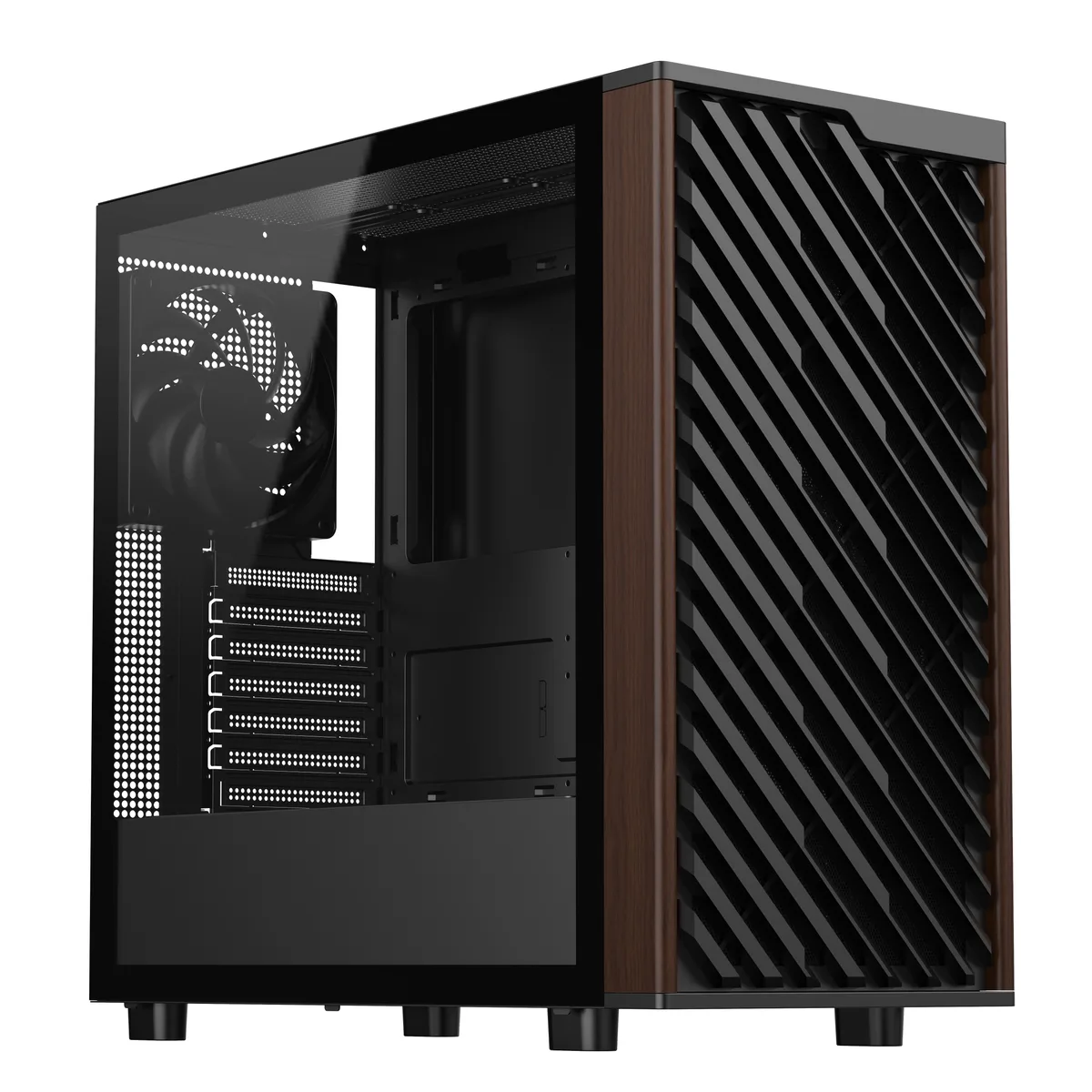

Walnut front-panel ATX mid-tower

The DIY-ATX28-Wood is an ATX mid-tower case built from steel and tempered glass with a genuine walnut wood front panel. It accepts ATX, Micro-ATX and ITX motherboards and provides seven expansion slots for graphics cards up to 380 mm long. Two 3.5-inch and one 2.5-inch internal drive bays handle storage, while the top-mounted I/O offers two USB 3.0 ports, one USB Type-C port and HD audio jacks.

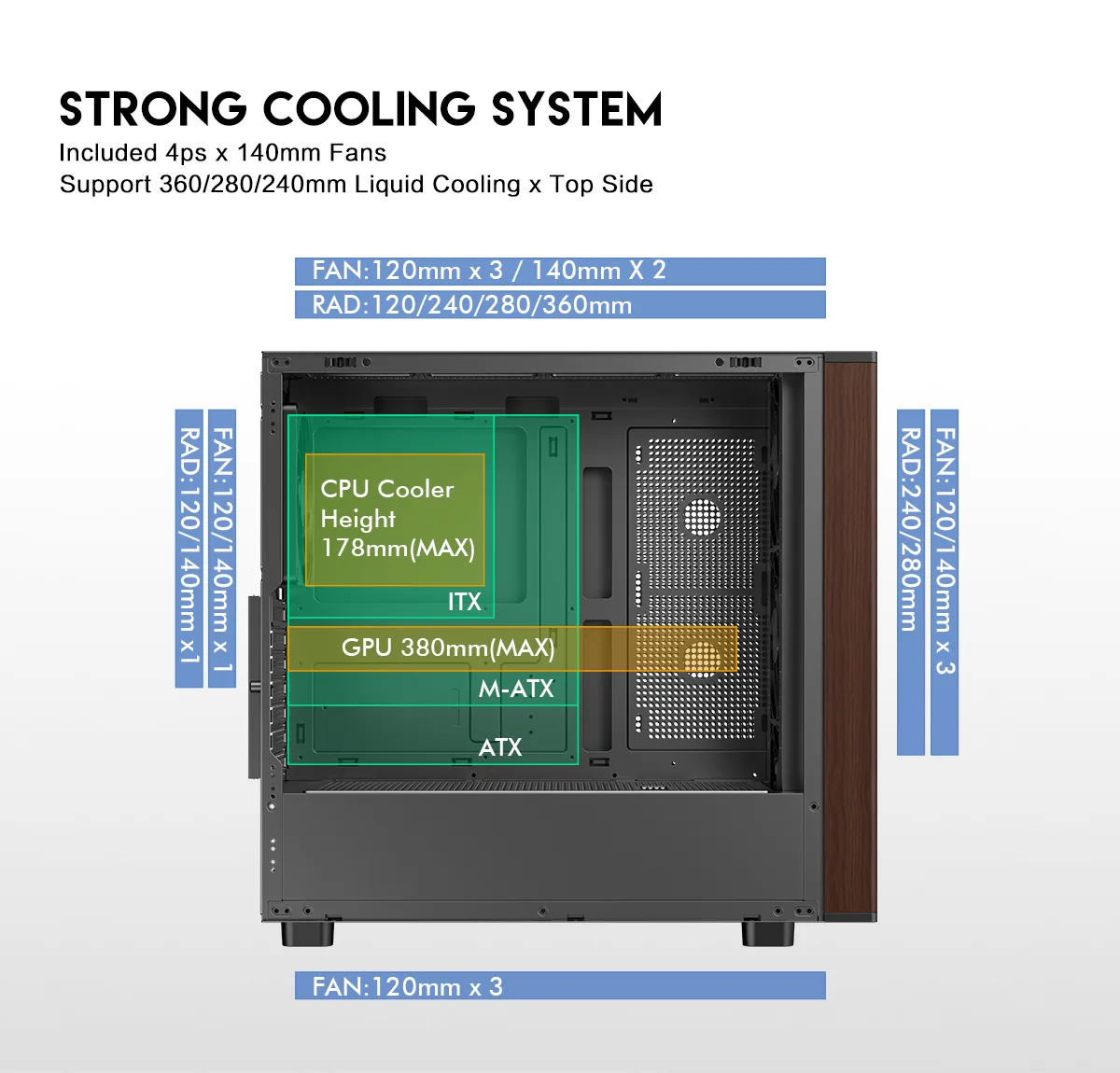

Pre-installed PWM fans and radiator support

Four 140 mm black PWM silent fans come pre-installed, three at the front and one at the rear, delivering directed airflow with low acoustic output. The top panel accommodates up to three 120 mm or 140 mm fans and radiators up to 360 mm for liquid-cooling builds. Optional fan mounts in the PSU shroud allow three additional 120 mm fans if extra intake or exhaust is required. CPU coolers up to 178 mm tall and power supplies up to 220 mm long fit without interference.

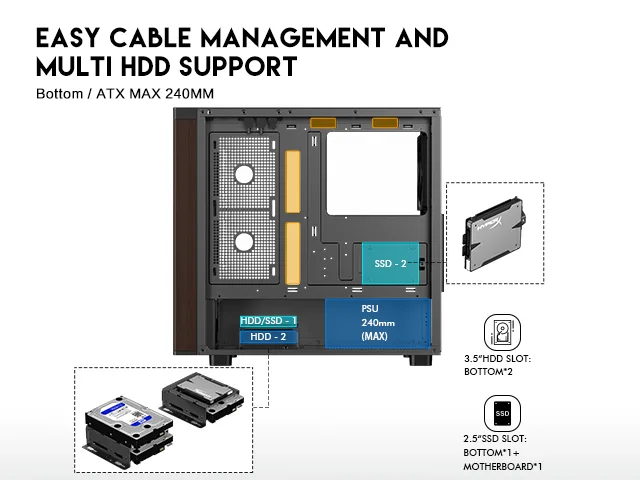

Cable routing channel and wood accent

A hidden routing channel behind the motherboard tray and generous rear clearance keep cables organised for a clean interior appearance. The walnut front panel adds a natural wood accent that distinguishes the case in a modern workspace while the tempered glass side panel displays the finished build. No power supply is included, so the bottom-mounted PSU bay remains ready for a user-selected unit.

Highlights

  • Walnut wood front panel adds natural elegance to modern setups
  • Four pre-installed PWM silent fans deliver strong airflow out of the box
  • Top mount supports up to 360 mm radiator for liquid cooling
  • Seven expansion slots and multiple drive bays fit high-end components
  • USB 3.0 and Type-C front ports enable fast data transfer

Specifications

BrandDIYPC
ModelDIY-ATX28-Wood
TypeATX Mid Tower
ColorBlack
Case MaterialSteel / Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / ITX / Micro ATX
Side Panelyes
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays1
Expansion Slots7
Front Ports2 x USB 3.0 / 1 x Type C / Audio In & Out (HD)
Fan OptionsFront: 3 x 140mm Black PWM Silent Fan (Pre-Installed)
Top: 3 x 120mm or 140mm fan (Optional)
PSU box: 3 x 120mm fan (Optional)
Rear: 1 x 140mm Black PWM Silent Fan (Pre-Installed)
Radiator OptionsTop - Up to 360mm
Max GPU Length380 mm
Max CPU Cooler Height178 mm
Max PSU Length220 mm
Dimensions16.8" x 9.2" x 18.24"
Weight14lbs

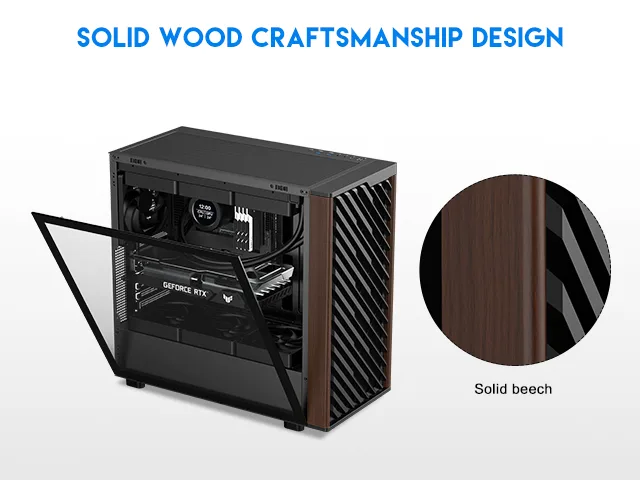

FeaturesThe DIY-ATX28-Wood front panel is crafted with high quality walnut wood. The natural and elegant wood element is perfectly integrated into the modern workspace.
Motherboard Compatibility: Supports ATX, Micro ATX, and ITX motherboards
Top mounted IO ports - USB 3.0 /Type C for up-to-date high speed data transfer
10 fans capability - 3 x 140mm black PWM Silent Fan x front and 1 x 140mm black PWM Silent fan x rear (Pre-Installed) provide great cooling and gaming performance
It supports up to 220mm long full ATX power supply to run the most power hungry system.
Advanced Cable Management
Shipping weight8.12 kg
Package size546 × 508 × 298 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the walnut wood front panel without damaging it?

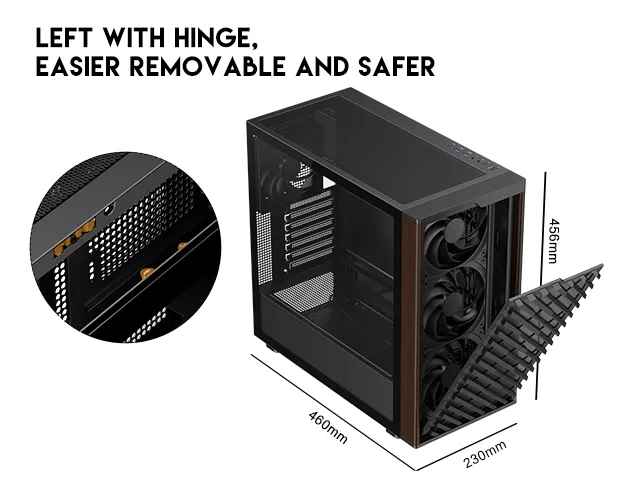

The front panel is already integrated into the case frame; you do not remove or install it separately. The step people get wrong is forcing the tempered glass side panel off its hinge pins — lift straight up after releasing the thumbscrews.

What maintenance will the pre-installed 140mm PWM silent fans need later?

Clean dust from the four pre-installed fans and the front mesh every few months using compressed air; the PWM fans are sealed and do not require lubrication or bearing service.

What thermal limit appears first when running a 360mm top radiator under sustained load?

The top radiator mount supports up to 360mm; the practical limit is the 178mm CPU cooler height clearance, which restricts pump-block thickness on thicker radiators.
